11. A.C. GENERATO
11-3

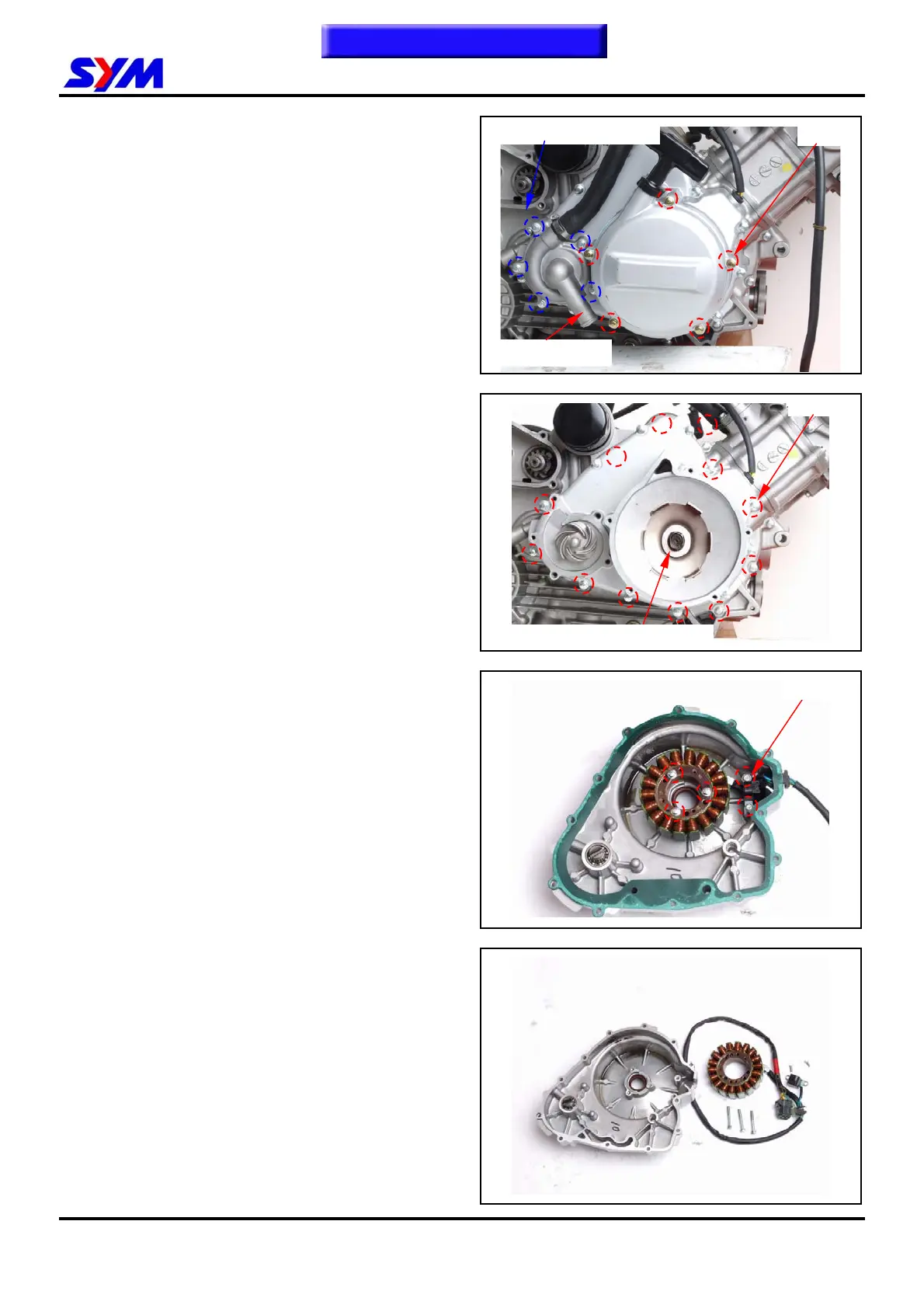

Right Crankcase Cover Removal
Water pump cover 5 bolts
5 bolts
Remove the left footrest.
Drain the engine oil and coolant, and then remove
coolant hoses.
Remove 5 bolts from the recoil starter cover.
Remove the recoil starter cover and gasket.
Remove the water pump cover (5 bolts)
A.C. Generator Removal
Remove the connector bolt and starter pulley.
Remove 12 mounted screws from the right
crankcase cover and then remove it.
Remove 5 screws from right crankcase cover.
Remove the stator.
12 screws
Coolant hoses.
Connector bolt and starter pulley
5 screws
