15. FRONT BRAKE & FRONT WHEEL
15-5
To this chapter contents

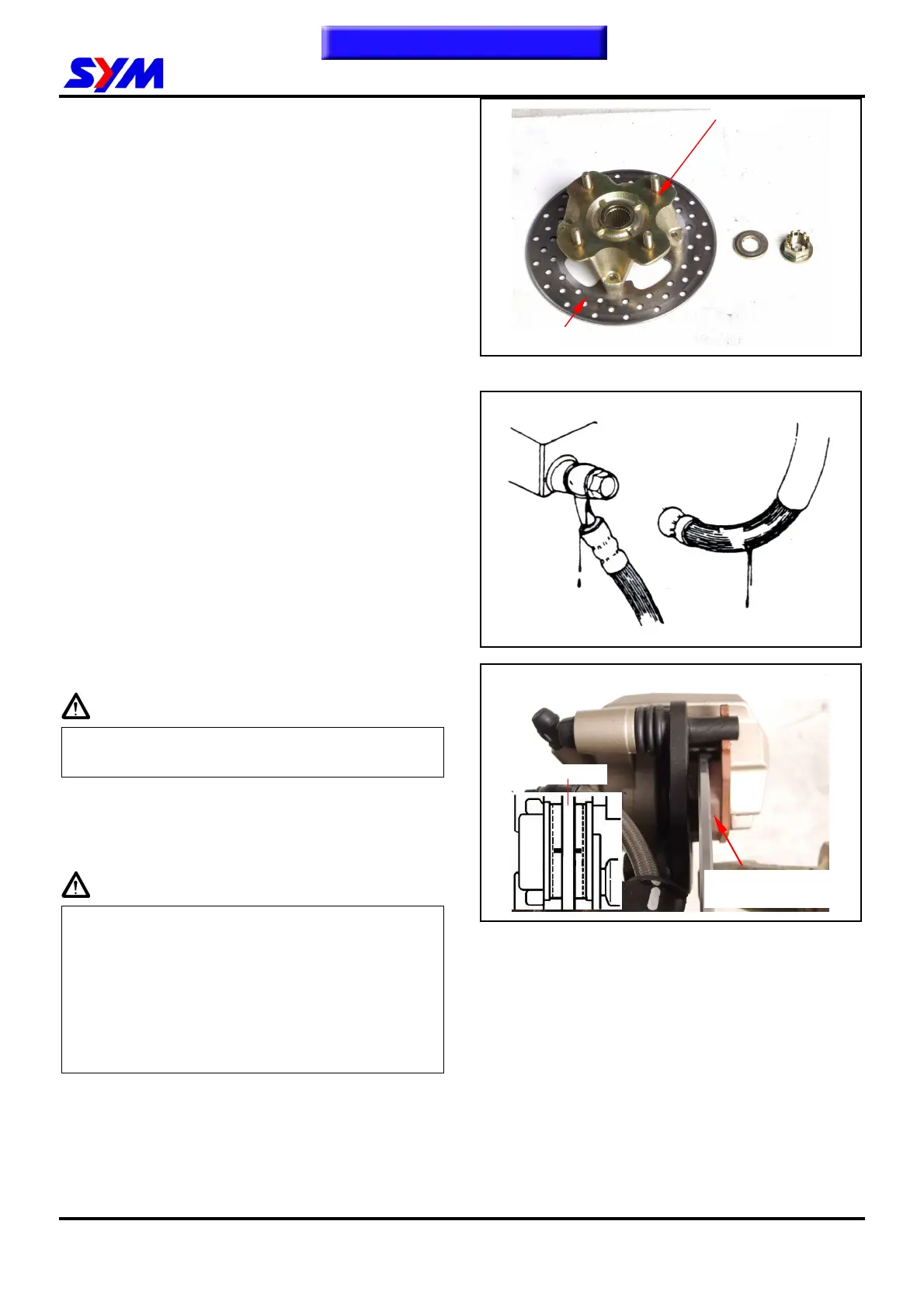

Inspection
Check disk & hub for wear or damage, and
replace it if necessary.
Installation
Install the front wheel disk and hub.
Disk Brake System Inspection
Inspection
By visual examination whether divulges or the
damage, with spanner inspection brake tube seam
whether becomes less crowded, and the
inspection handle bar turn right or turn left, or
pressure the cushion, whether besides the
pipeline protection department, whether there is
interferes, contacts other parts of.
Check the brake from behind the brake caliper.
The brake pad must be replaced with new lining
when the brake pad wear limit reaches the brake
disk.
Caution
Before checking the front brake lining, front
wheel must be removed first.
Park the ATV on a level ground, and check if fluid
level is under the “LOWER” mark.
Recommended Brake Fluid: WELL-RUN BRAKE
OIL (DOT 3).
Caution
When the vehicle is inclined or just stopped, the
brake fluid level could not be accurate, settle it
for 3~5 minutes.
In order to prevent the chemical change, please
do not use counterfeiting or other unidentified
trade marks brake fluid.
Use the same brake fluid to guarantee the
braking efficiency.
Wheel hub
Brake disk
Front brake
Brake disk
Brake linings wear limit
grooves
