Sym Quad Lander 600 - Rear Wheel Hub

17. REAR BRAKE & REAR WHEEL & REAR CUSHION
17-5

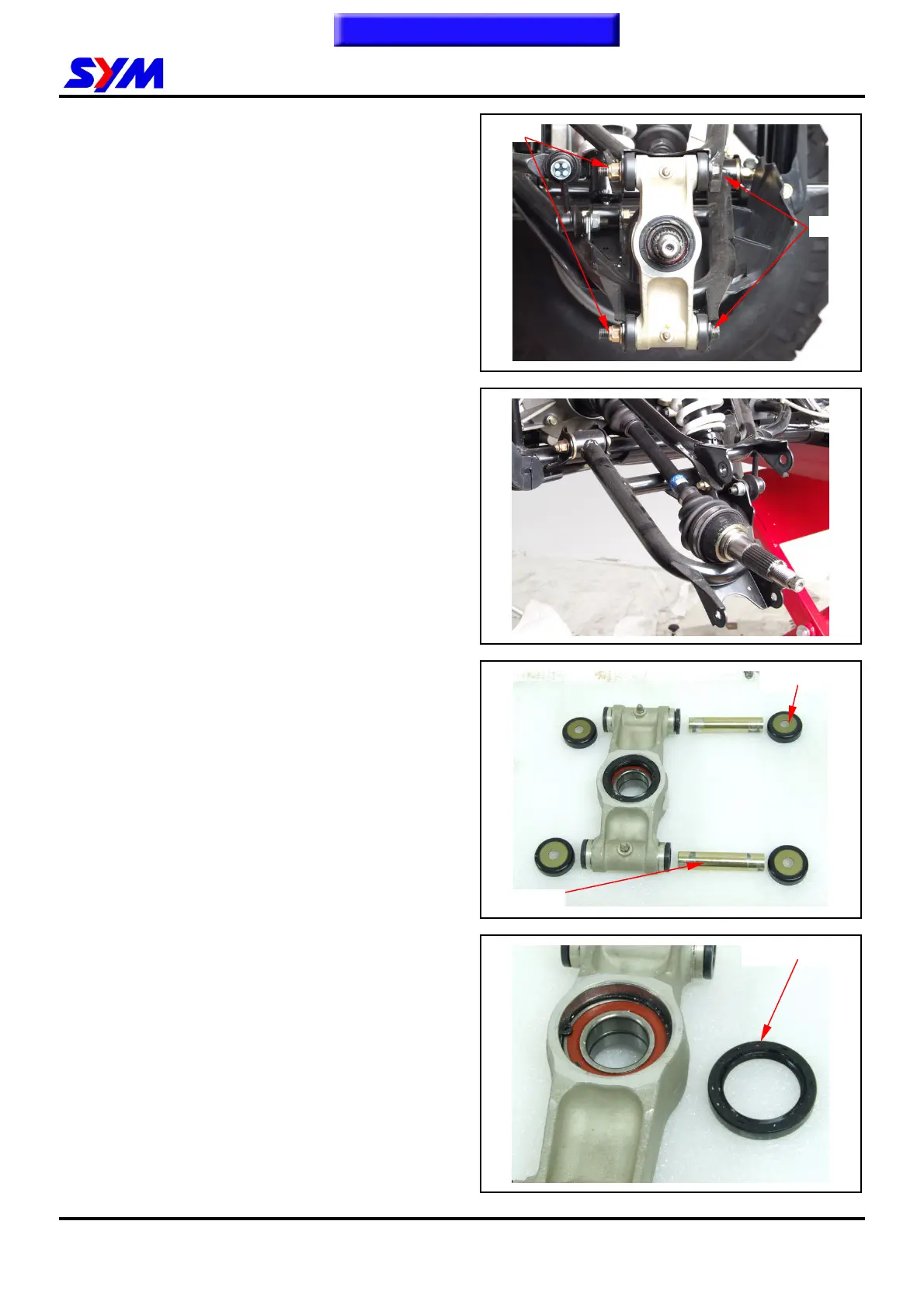

Rear Wheel Hub
Remove
Loosen 2 nuts then 2 flange bolts
Remove the rear wheel hub.
Wheel Hub Disassembly
Remove 4 washer seals & 2 callers from rear
wheel hub.
Remove the oil seal 40*55*8 from rear wheel hub.
2 nuts
2 bolts
4 washer seals
2 callers
Oil seal 40*55*8
