11. A.C. GENERATOR/STARTING CLUTCH

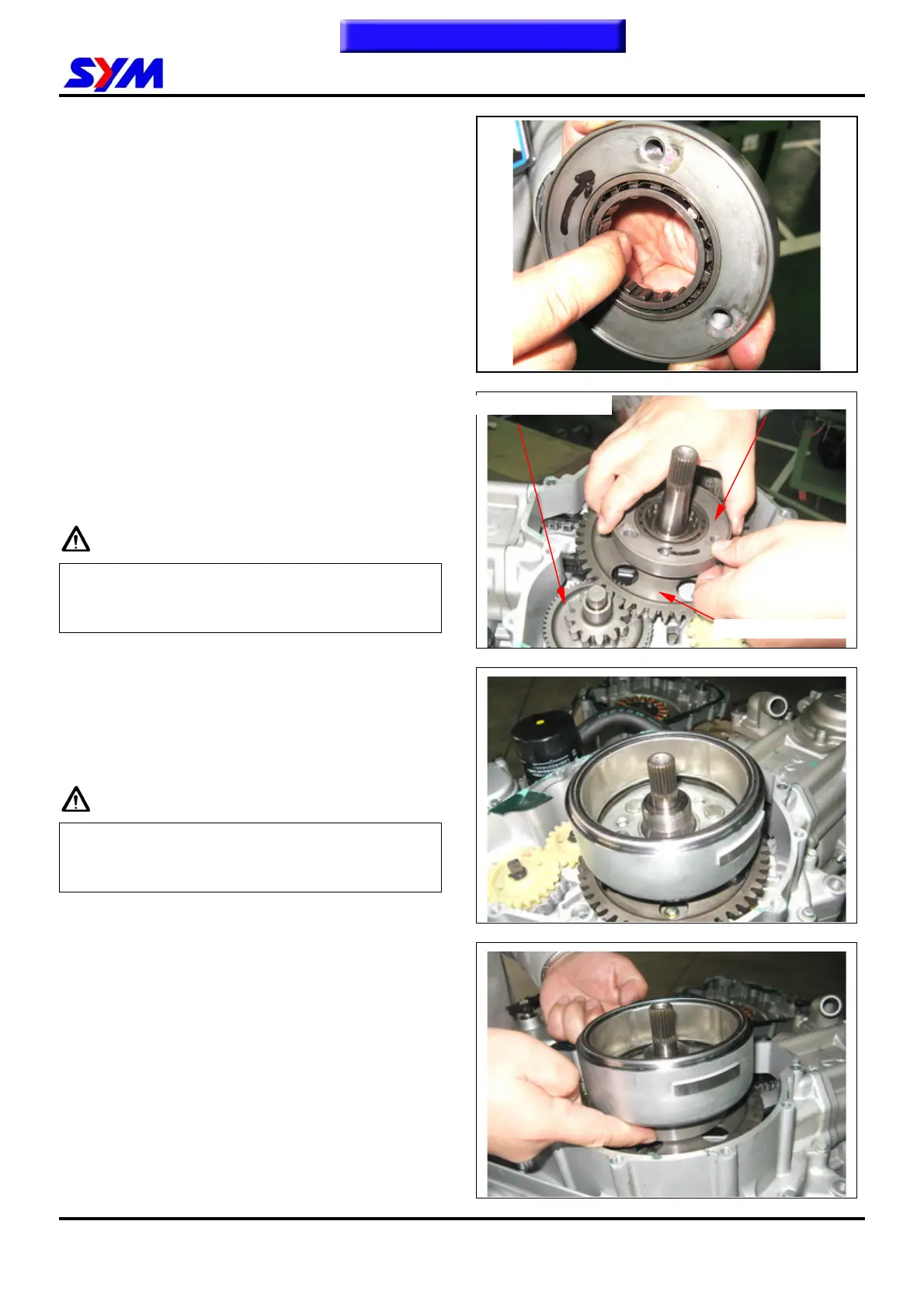

Rotate the inner part of the starter one-way clutch
to make sure it is installed correctly and works
properly.
11-7
Install the starting reduction gear first and then
install the starting driven gear to the crankshaft.
Install the starter one-way clutch. Rotate the starter
one-way clutch clockwise to make smooth and
precise installation as the photo shows.
Caution
Flywheel Installation
Install the flywheel onto the crankshaft.
Caution
Rotate the starter one-way clutch to make the
three boltholes aim at the flywheel.
Pay attention to the installation direction. Do not
install the starter one-way clutch reversely or it
will not work properly.
Pay attention to the flywheel key way and make it
fit the crankshaft properly. Do not install the
flywheel forcibly or it may be damaged.
Starter one-wa
clutch
Starting reduction gear
Starting driven gear
