9. Transmission
9-7

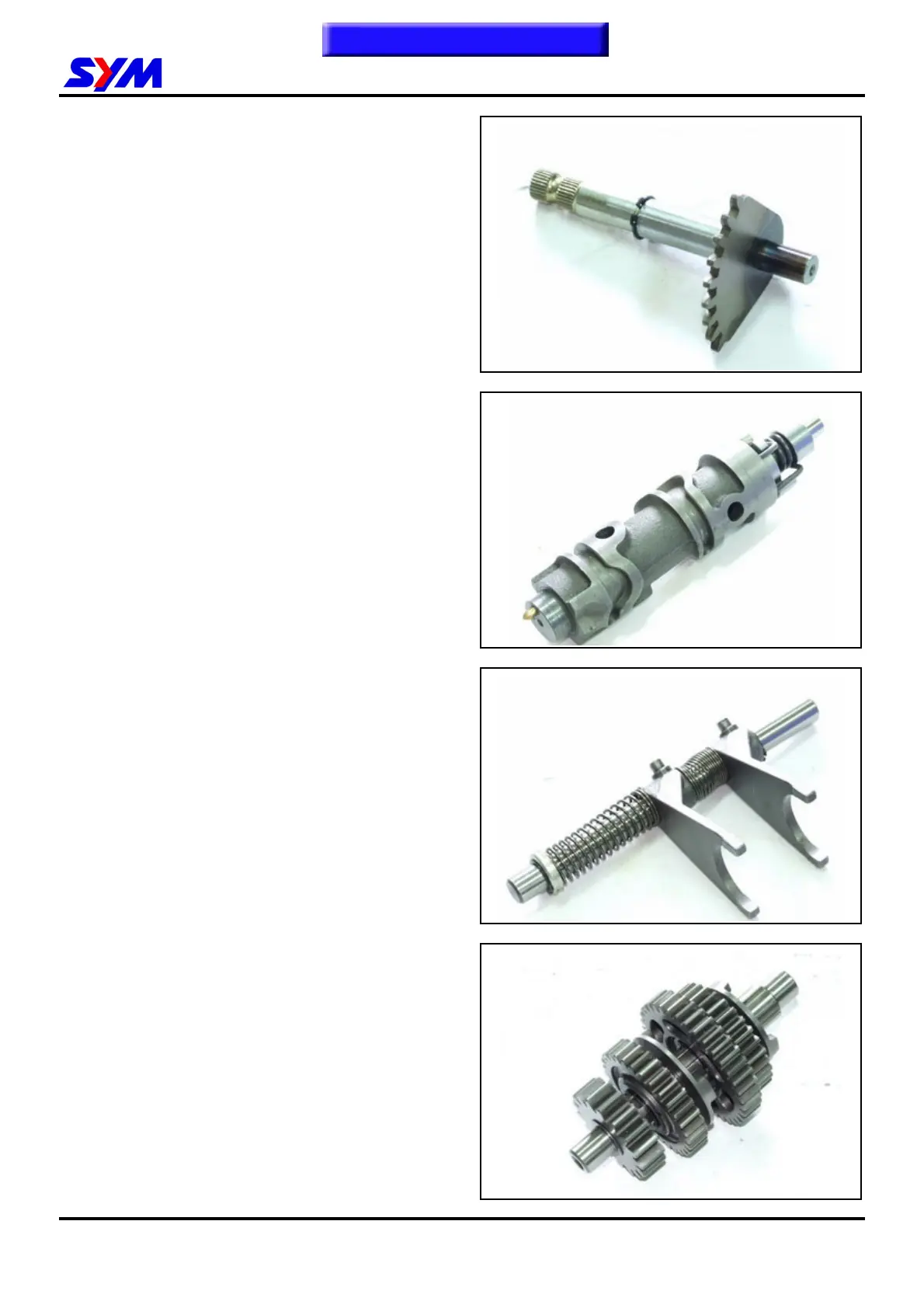

Transmission Inspection
Check the shift spindle for any wear or damage.
Check if the shift drum is worn or damaged.
Check if the shift fork and shaft is worn or
damaged.
Measure the outer diameter of shift fork shaft.
Replace it if it exceed service limit.
Service limit: 13.966 mm
Measure the inner diameter of shift fork.
Replace it if it exceed service limit.
Service limit: 14.043 mm
Measure the thickness of shift fork claw.
Replace it if it exceed service limit.
Service limit: 5.930 mm
Check if the counter shaft is worn or damaged.
