9. TRANSMISSION
9-6

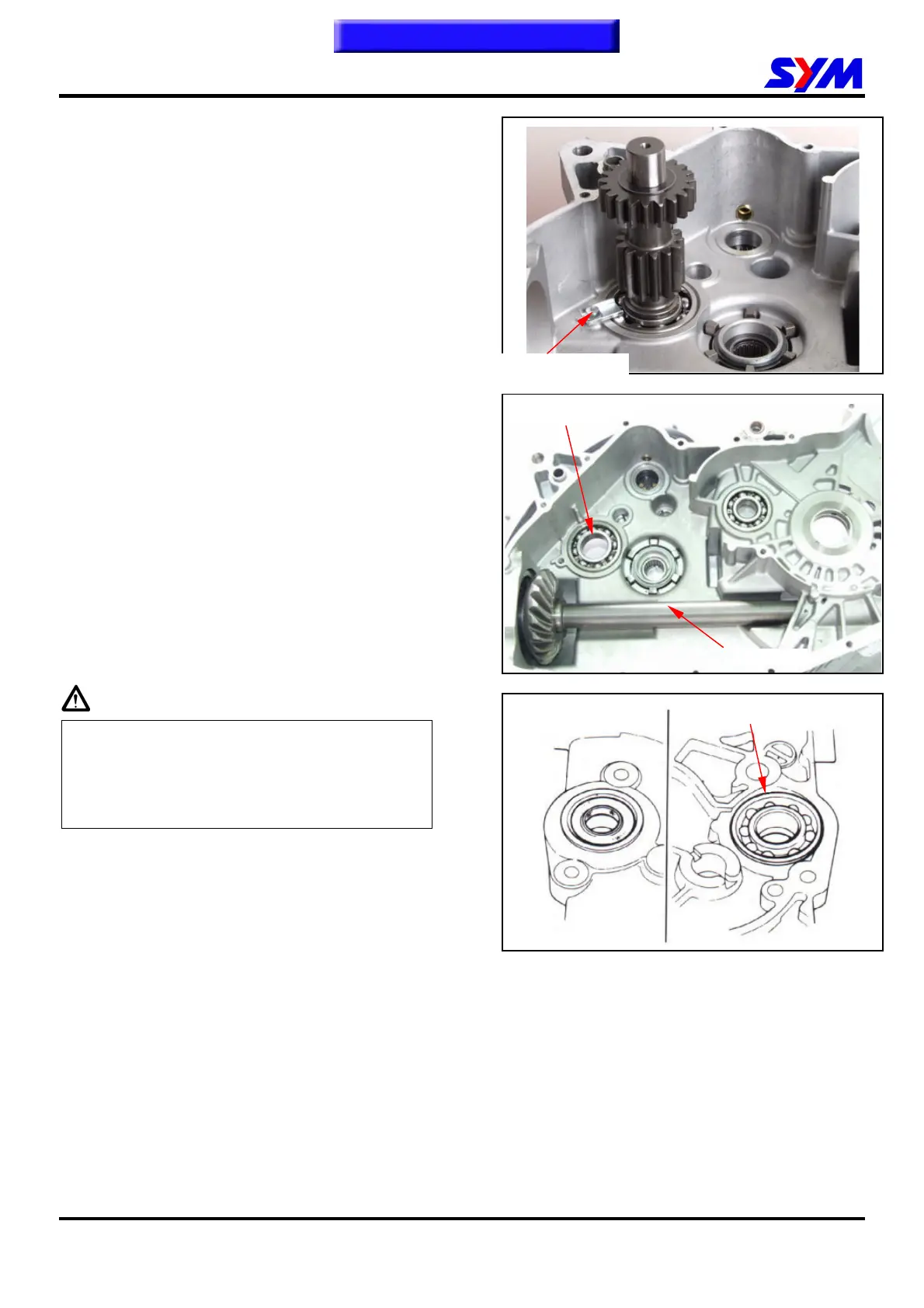

Remove the drive shaft bearing setting plate (1 bolt).
Remove the drive shaft.
Remove the output shaft.
Caution
 Do not remove the drive shaft from the
crankcase if unnecessary.
 When removing the drive shaft from the
crankcase, then the bearing has to be
replaced.
Bearing
Bearing setting plate
Drive shaft bearing
Output
s
h
a
f
t
