9. Transmission
9-5

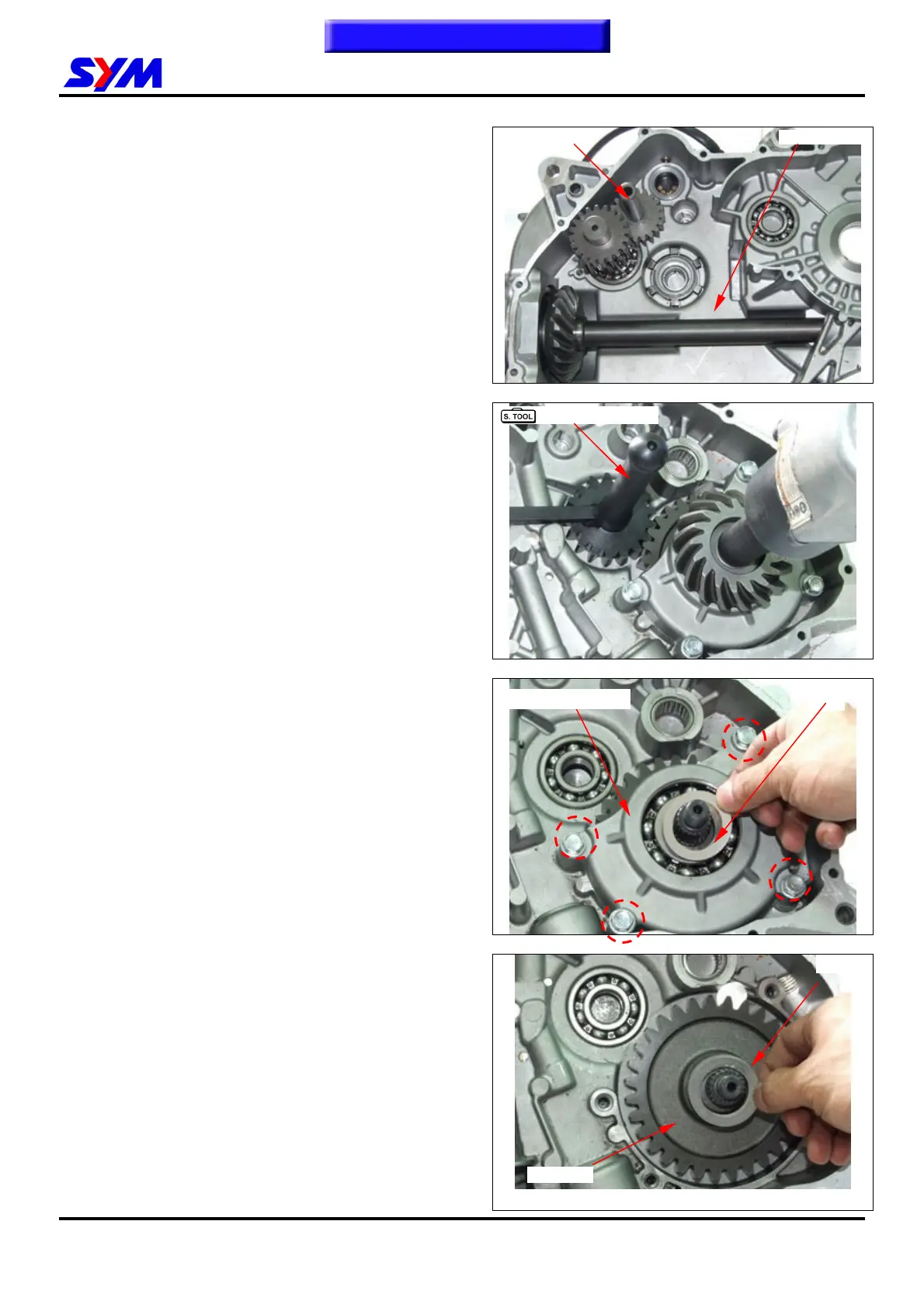

Remove the reverse shaft and the output shaft.
Remove the bevel gear with the final shaft stopper.
Special tool:
Tool number：SYM-2343100-REA
Tool name：Final shaft stopper.
Remove 4 bolts.
Remove the shims from the bevel gear housing.
Remember the number of the shims and put the
same number of shims when reassembling.
Remove the shims from the final shaft.
Remember the number of shims and put the same
number o shims when reassembling.
Remove the final shaft.
Shim
To this chapter contents
Shim
Final shaft
Bevel gear housing
R
e
v
e
r
se
s
h
a
f
t
Output
s
h
a
f
t
Final gear stopper
