11. A.C. GENERATOR/STARTING CLUTCH

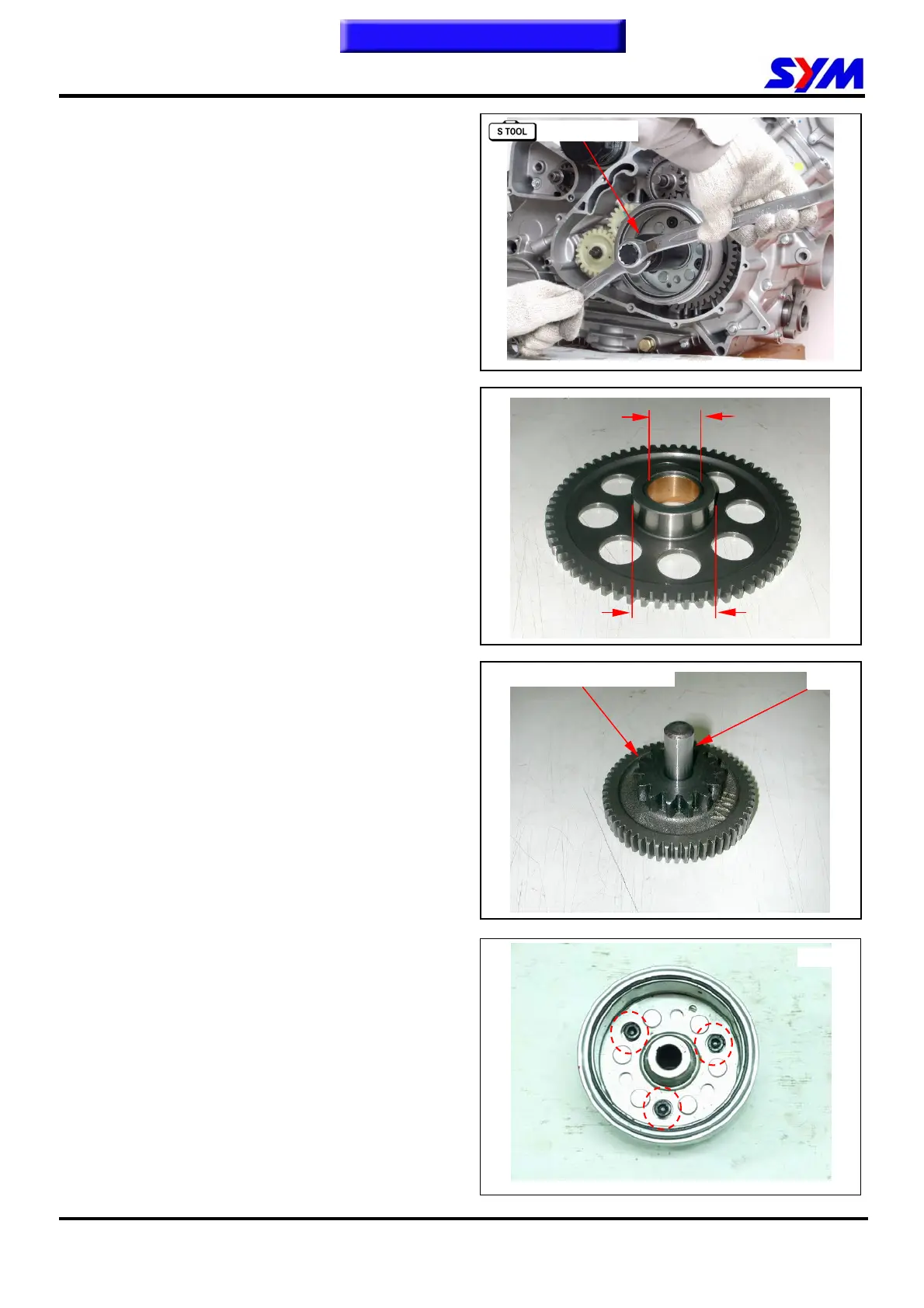

Flywheel Removal
11-4
Remove the A.C. Generator flywheel with special
tool.
Tool name：A.C.G. flywheel puller
Tool number：SYM-3110000-HMA
Starting Clutch Gear Inspection
Remove the starting clutch driven gear.
Check the gear for wear or damage.
Measure the ID and OD of the starting clutch
driven gear.
Service Limit: ID: 27.050 mm
OD: 45.183 mm
Check the starting reduction gear and shaft for
wear or damage.
Starter One-way Clutch Removal
Remove 3 bolts from the A.C. Generator flywheel.
Shaft
Starting reduction gear
Flywheel puller
ID
OD
3 bolts
