10. WHEEL DRIVE SHAFT/PROPELLER SHAFT
10-10

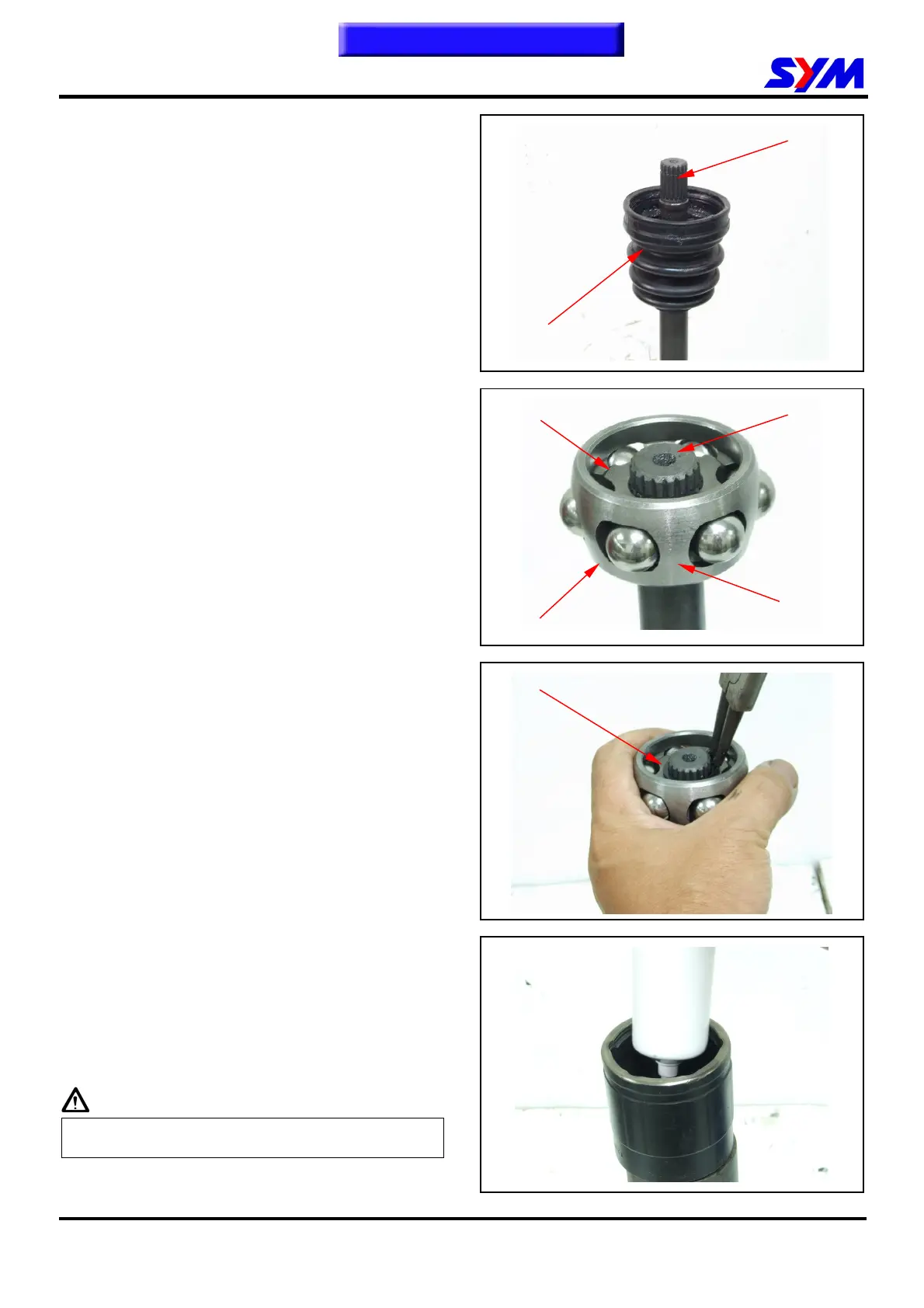

Wheel Drive Shaft Assembly
DOJ assembly
Assemble the DOJ boot.
Assemble 6 steel balls, inner race and cage then
drive shaft into the assembly.
Assemble exit cir-clip onto drive shaft.
Grease into the DOJ outer race.
Caution
Please use the grease of the repair pack. Using
other oil may cause the part to be damaged.
6 Steel balls
DOJ cage
Inner race
Drive shaft
Cir-clip
DOJ boot
Drive shaft
