17. REAR BRAKE & REAR WHEEL & REAR CUSHION
17-10

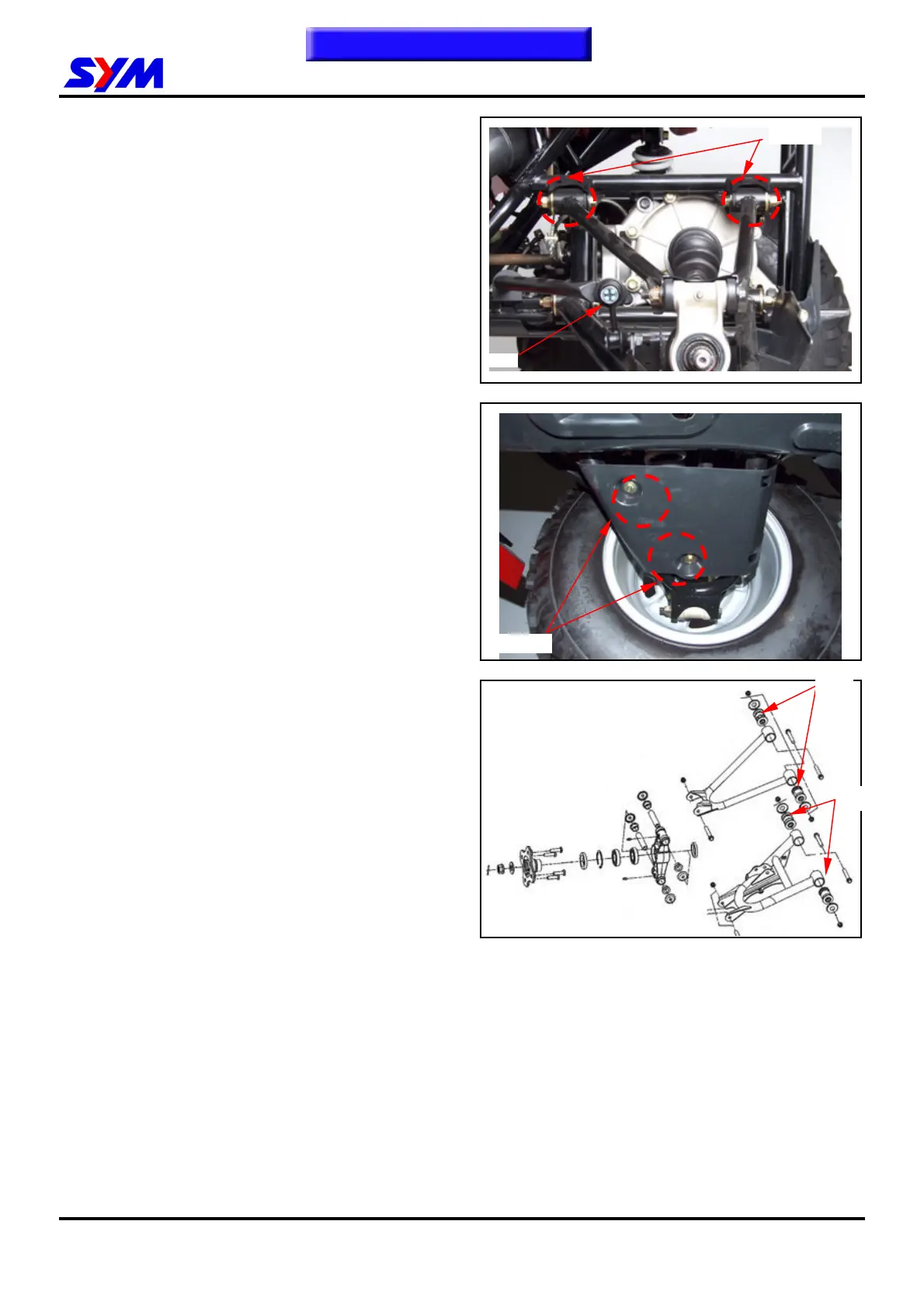

Suspension Arm
Removal
Remove the rear wheel, wheel hub and rear
cushion.
Loosen upper suspension arm nuts.
Remove swing arm bolts.
Loosen 2 bolts from under suspension arm cover
and then remove the cover.
Loosen under suspension arm nuts.
Remove the swing arm bolts.
Remove under suspension arm.
Inspection
Inspect the suspension arm for damage or
bending.
Installation
Install in the reverse order of removal procedures.
Torque value:
S
uspension arm nut 5.0kgf-m
Lubricate with grease into suspension arm.
To this chapter contents
2 bolts
2 bolts
Bush
Bush
