3. LUBRICATION SYSTEM
Precautions in Operation
General Information:
This chapter contains maintenance operation
for the engine oil pump and gear oil
replacement.
Specifications
Engine oil capacity Disassembly: 3000 c.c.
Replacement: 2400 c.c.
Replacement with oil filter replaced: 2700 c.c.

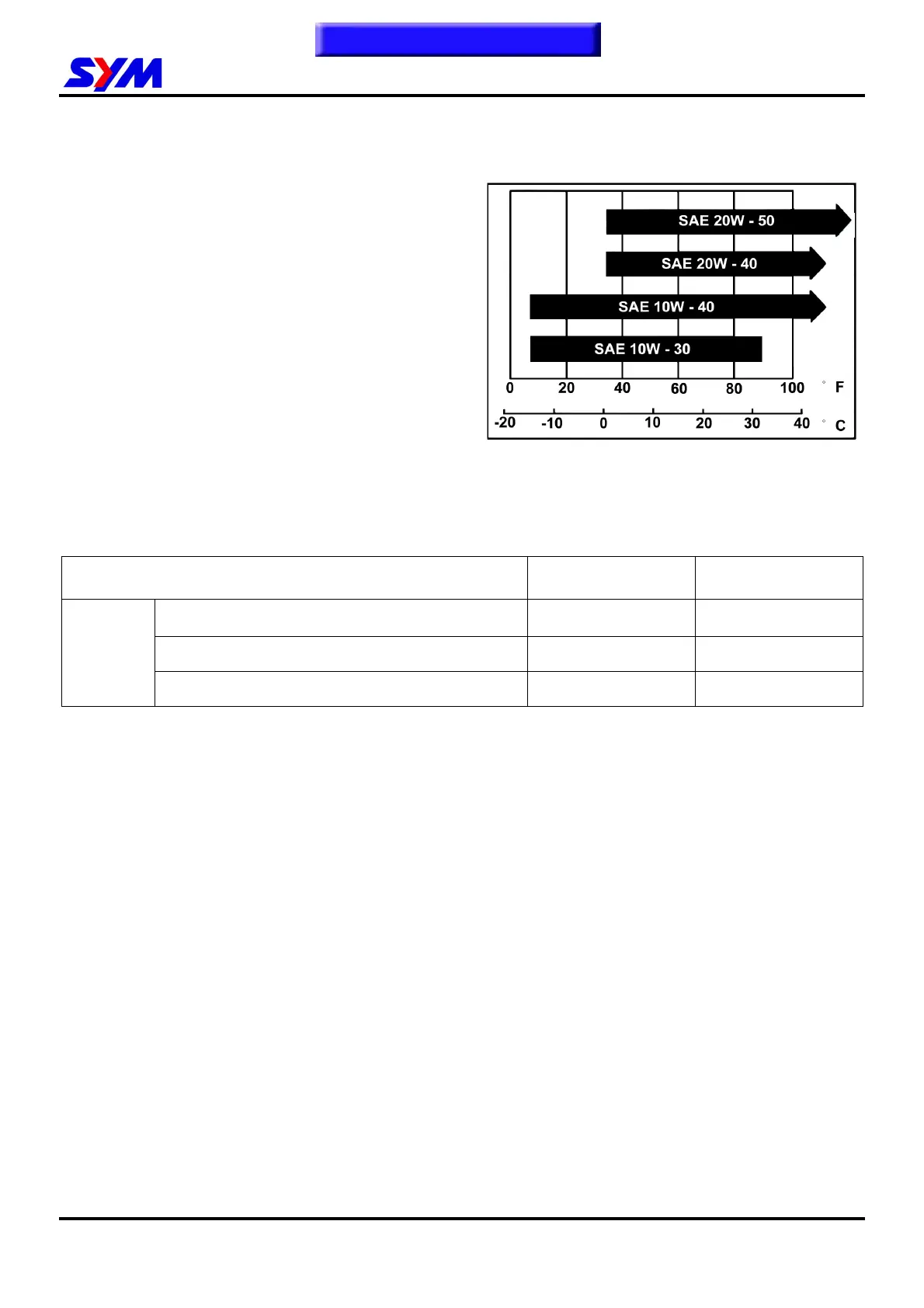

Oil viscosity SAE 10W-30 (Recommended
King serial oils)
Rear axle gear oil replacement: 100c.c.
Front differential gear oil replacement: 200c.c.
Gear oil viscosity SAE 80 or 90
(Recommended SYM Hypoid gear oil)
Items Standard (mm) Limit (mm)
Inner rotor clearance 0.15 0.20
Clearance between outer rotor and body 0.15~0.20 0.25
Oil pump
Clearance between rotor side and body 0.04~0.09 0.12
Torque value
Torque value oil strainer cap 1.3~1.7kgf-m
Engine oil drain bolt 3.5~4.5kgf-m
Gear oil drain bolt 1.1~1.5kgf-m
Gear oil join bolt 3.5~4.5kgf-m
Oil pump connection screw 0.1~0.3kgf-m
Troubleshooting
Low engine oil level
Oil leaking
Valve guide or seat worn out
Piston ring worn out
Low oil pressure
Low engine oil level
Clogged in oil strainer, circuits or pipes
Oil pump damage
Dirty oil
No oil change periodically
Cylinder head gasket damage
Piston ring worn out
3-3
