Sym Quad Lander 600 - Transmission; Transmission Reassembly

9. TRANSMISSION
9-12
Transmission Reassembly

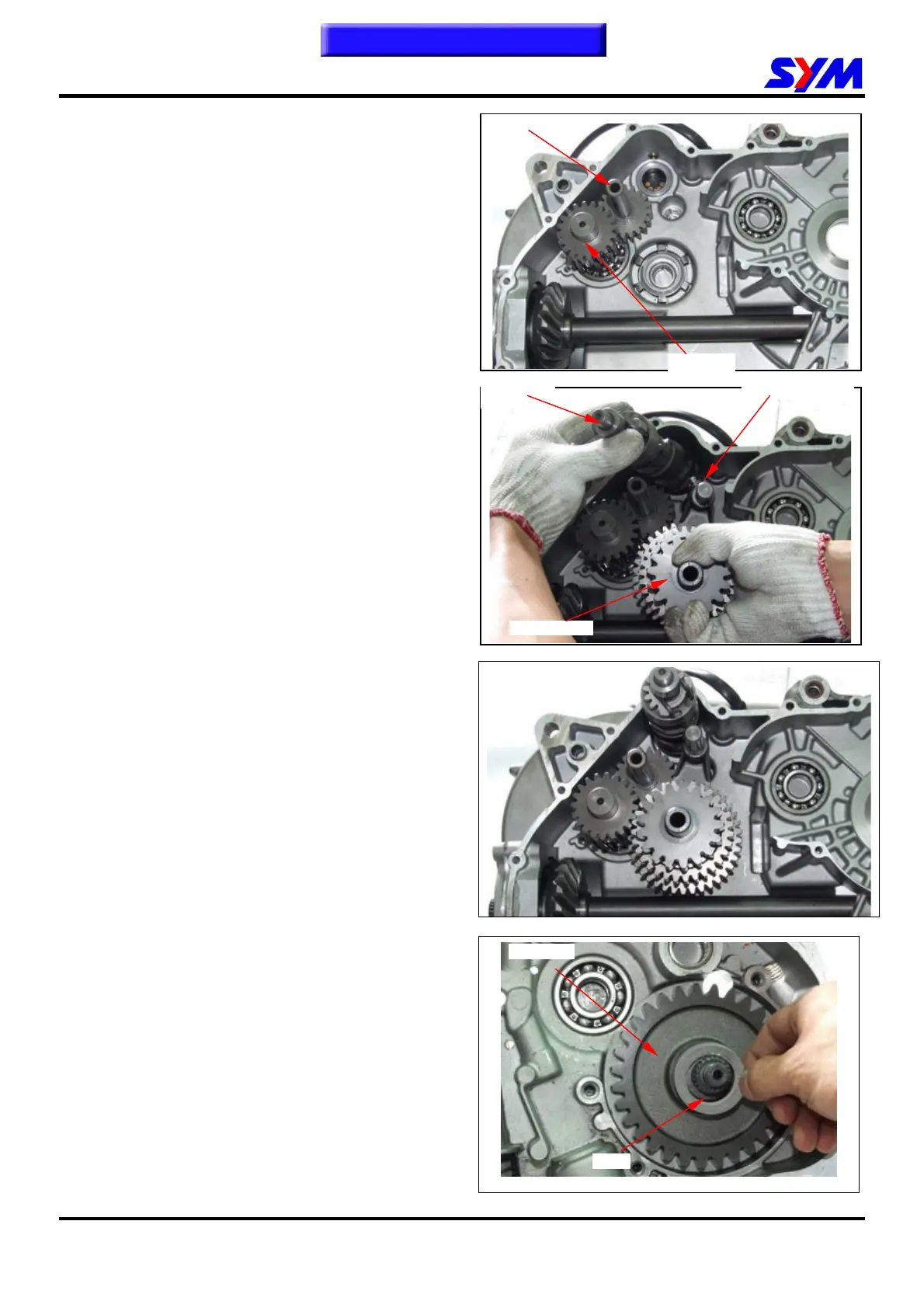

Install the reverse shaft onto the left crankcase.
Install the counter shaft and gearshift fork.
Install the shift drum.
Rotate the shift drum and make sure it can rotate
smoothly.
Install the final shaft onto the right crankcase.
Put the same numbers of shim, which were
removed during removal, on the final shaft.
