16. STEERING / FRONT SUSPENSION
16-8

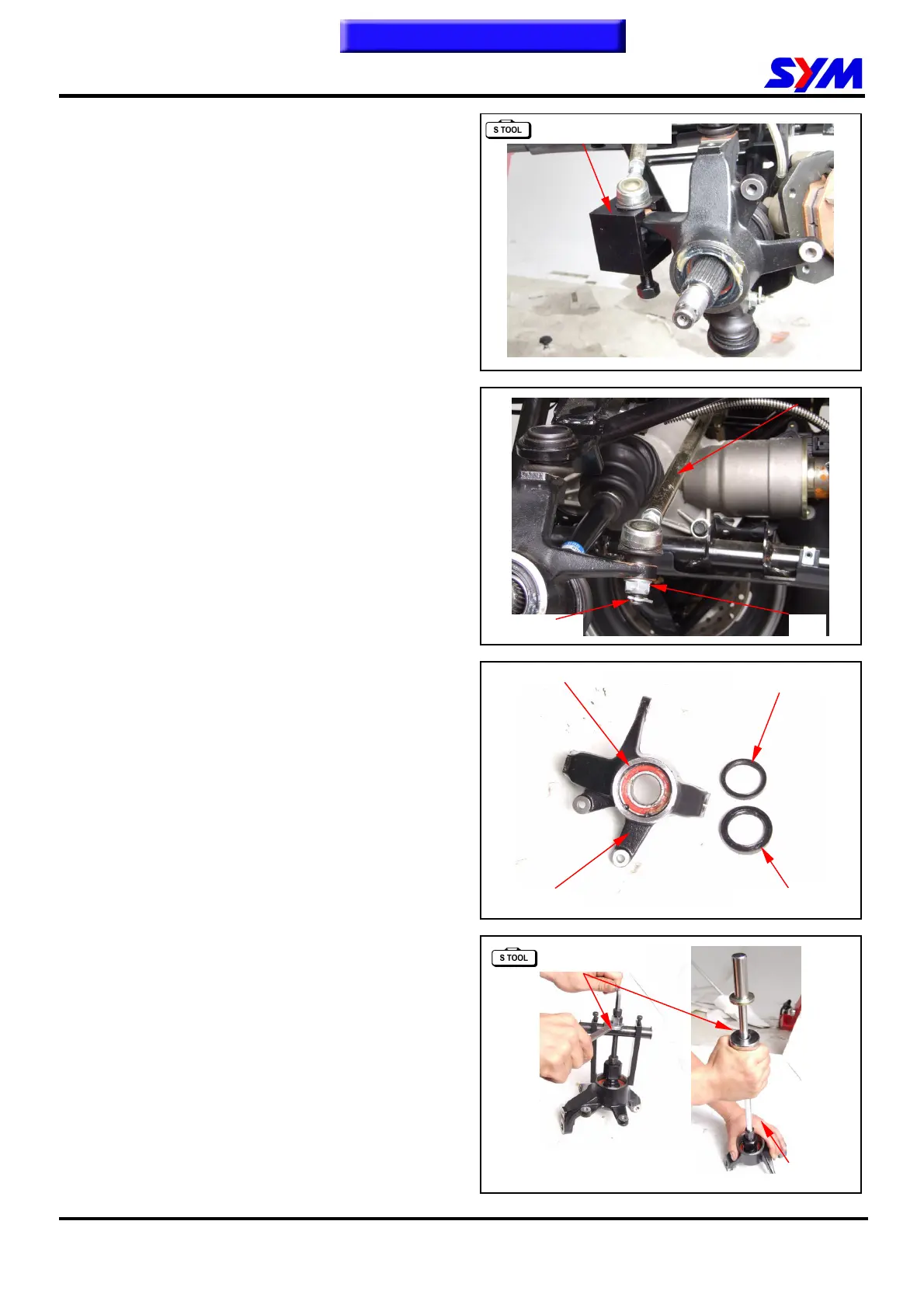

Remove cotter pin and tie-rod nut, remove tie rod
with special tool.
Tools number: SYM-5325800-REA
Tools name: ball joint driver
Remove the knuckle body.
Inspection
Inspect the upper and under ball joints and
knuckle for damaging or cracking.
Installation
Install in the reverse order of removal procedures.
Torque value:
Steering tie-rod nut 5.0kgf-m
Ball joint nut 5.0kgf-m
Knuckle Disassembly
Remove oil seal 40*50*6.5 & 40*55*8 from
knuckle body.
Remove cir-clip in 55 from knuckle body.
Remove bearing 6007uu with special tool.
Tools number:SYM-6204025
Tools name: INNER BEARING OUTER PULLER.
Cotter pin Nut
Knuckle body
Oil seal
Oil seal
CIRCLIP IN 55
SYM-6204025
SYM-5325800-REA
