17. REAR BRAKE & REAR WHEEL & REAR CUSHION
17-1
Mechanism Diagram ··························· 17-1
Maintenance Description···················· 17-2
Trouble Diagnosis······························· 17-3
Rear Wheel··········································· 17-4
Rear Wheel Connecter························ 17-4
Rear Wheel Hub··································· 17-5
Rear Cushion······································· 17-9
Suspension Arm ································· 17-10
Disk Brake System Inspection··········· 17-11
Adding Brake Fluid ····························· 17-12
Brake Fluid Replacement / Air-bleed· 17-13
Rear Brake Caliper······························ 17-14
Brake Disk ··········································· 17-15
Rear Brake Master Cylinder ··············· 17-15
Mechanism Diagram
Home page
Contents
17

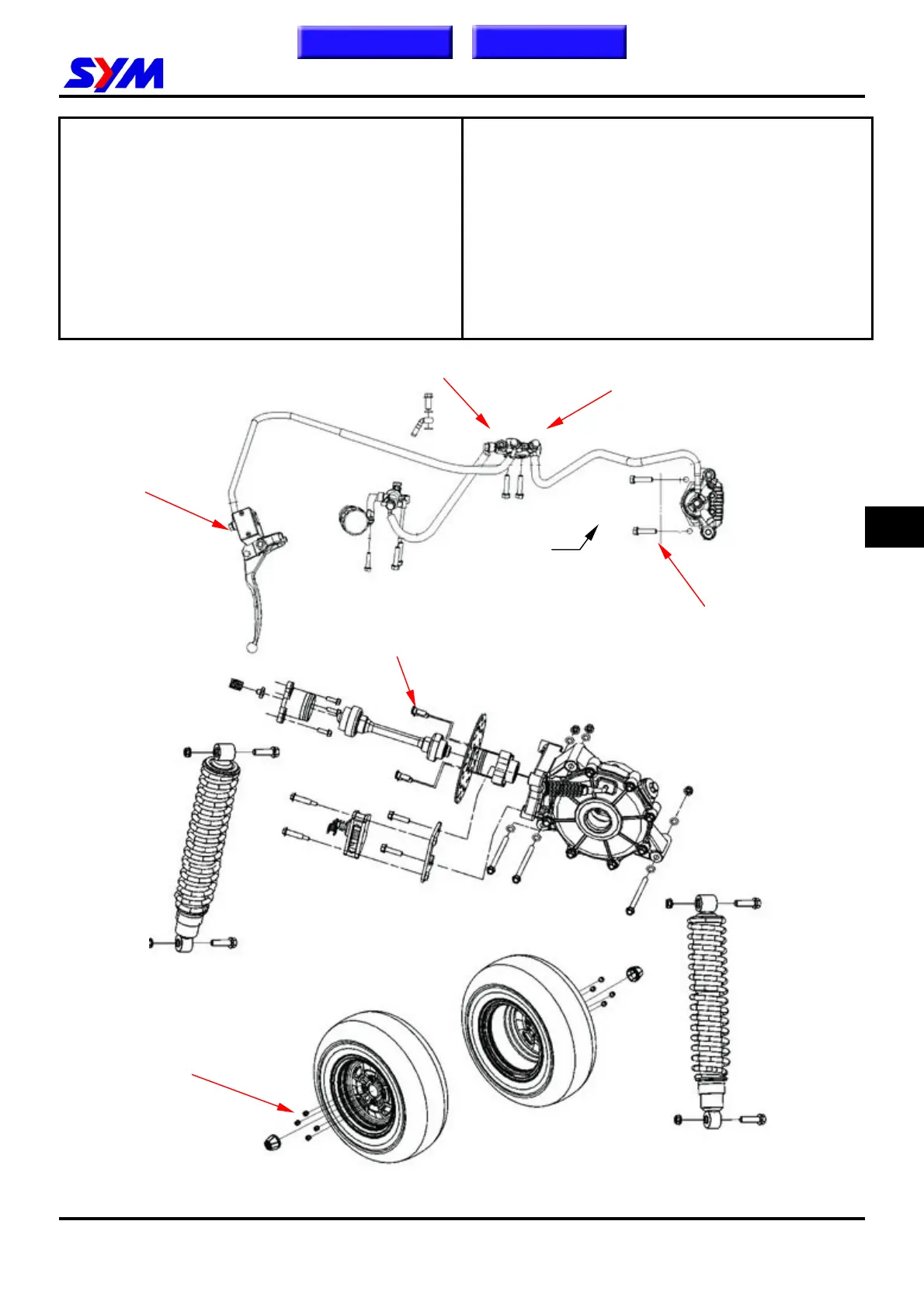

Brake disk bolts (4.25kgf-m)
Air-bleed valve (0.5kgf-m)
Brake caliper
bolts (3.25kgf-m)
Brake hose bolts (3.5kgf-m)
Rear brake master cylinder A
Rear wheel nuts
(2.4kgf-m)
To Next Page
