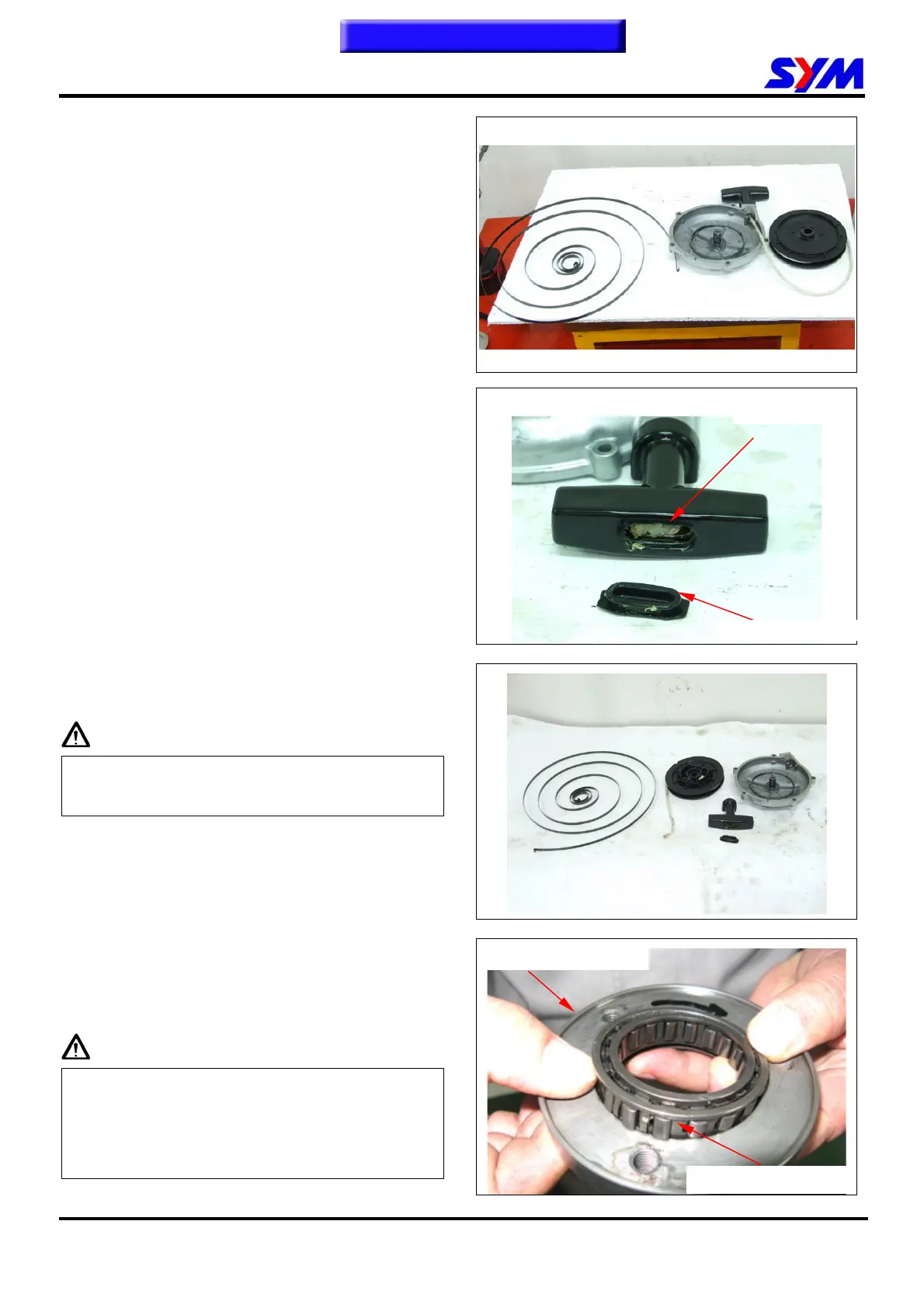

11. A.C. GENERATOR/STARTING CLUTCH
Do not remove the volute spring from the recoil
starter cover unless the spring is broken. If the
volute spring is removed from the recoil starter
cover, it should be replaced with a new one.
11-6
Remove the starter grip rubber.
Disassemble the starter grip and rope.
Installation
Install in reverse order of removal procedures
Caution
First before installing the drive pulley must
establish 2 1/2 of the pressures transferred to
pressure springs.
Starter One-way Clutch Installation
Install the starter one-way clutch into the one-way
clutch outer.
Caution
Please pay attention to the installation direction.
Install the starter one-way clutch into the one-way
clutch outer gently as the photo shows. Do not
push the one-way clutch forcibly into the clutch
outer or it may be damaged.
Starter rope
Starter grip rubber
One-way clutch outer
Starter one-way clutch
