8. V-BELT DRIVING SYSTEM
8-6

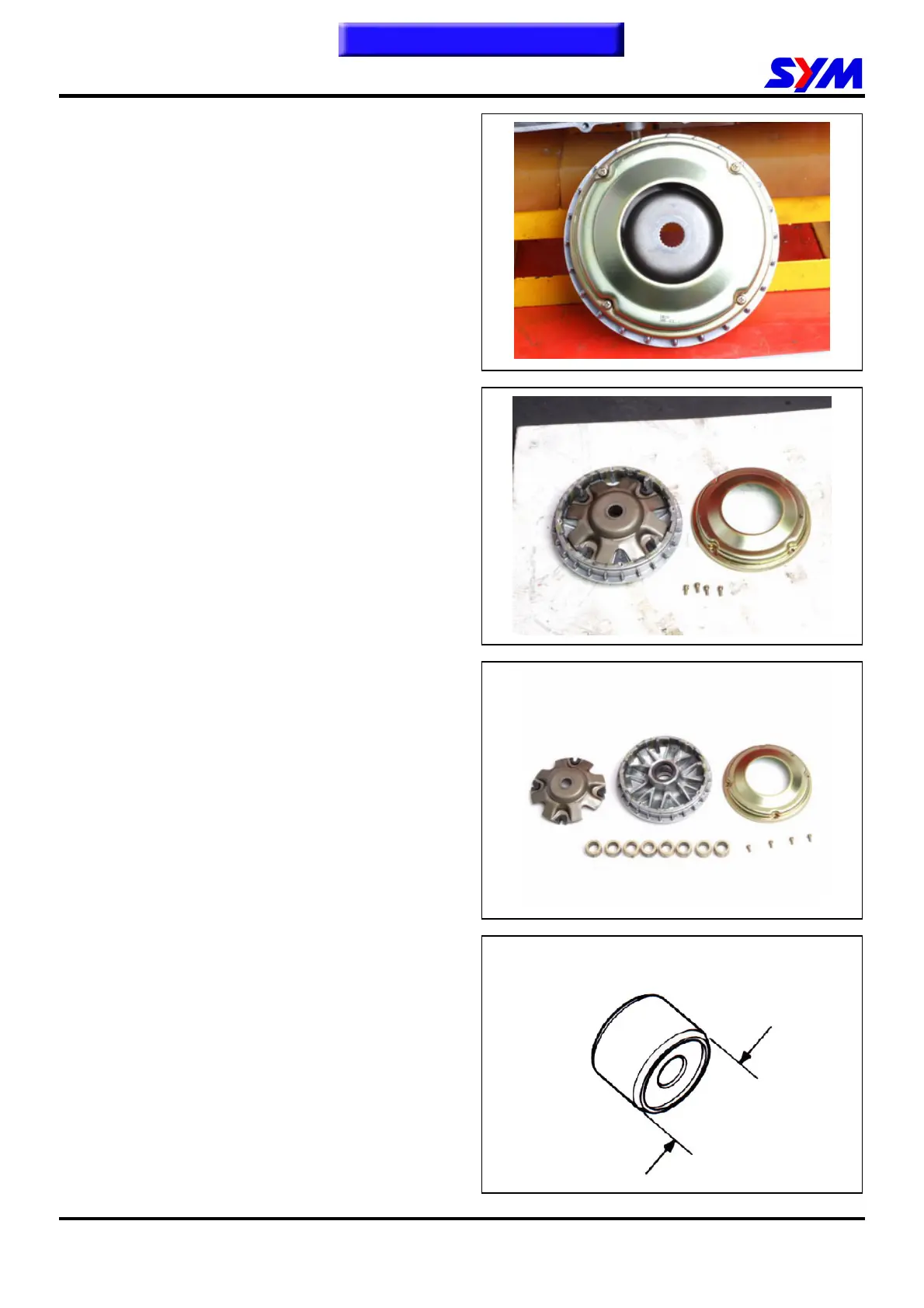

Movable Drive Face Disassembly
Loosen 4 bolts form the drive face.
Remove the drive face plate
Remove the drive face plate
Remove the ramp plate and weight roller (8pcs).
Inspection
The weight rollers are to press movable drive face
by means of centrifuge force.
Thus, if weight rollers are worn out or damaged,
the centrifuge force will be affected.
Check if rollers are worn out or damaged.
Replace it if necessary.
Measure each roller’s outer diameter. Replace it if
exceed the service limit.
Service limit: 29.50 mm
