17. REAR BRAKE & REAR WHEEL & REAR CUSHION
17-4

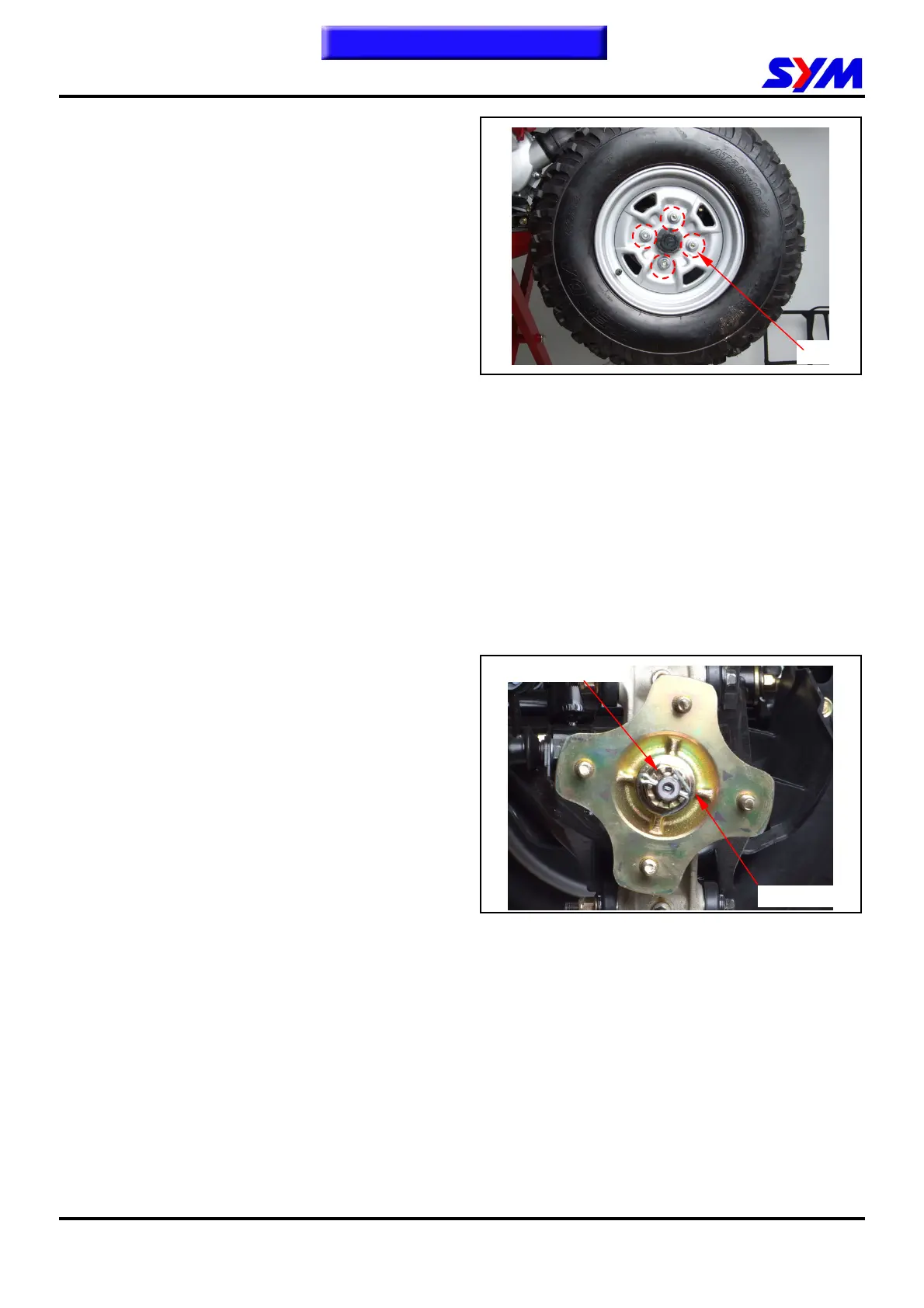

Rear Wheel
Removal
Raise the rear wheels off the ground by placing a
jack or other support under the frame.
Remove the rear wheel nuts, and then remove
rear wheels.
Installation
Install the rear wheel and tighten the nuts.
Torque: 2.4kgf-m
Rear Wheel Connecter
Removal
Remove cotter pin, rear wheel connecter nut and
washer.
Remove right and left rear wheel connecter.
Installation
Install the rear wheel connecter.
Install wheel connecter wheel connecter nut.
Torque: 2.4kgf-m
Install cotter pin.
To this chapter contents
Wheel connecter nut
Cotter pin
4 nut
