9. Transmission
9-13

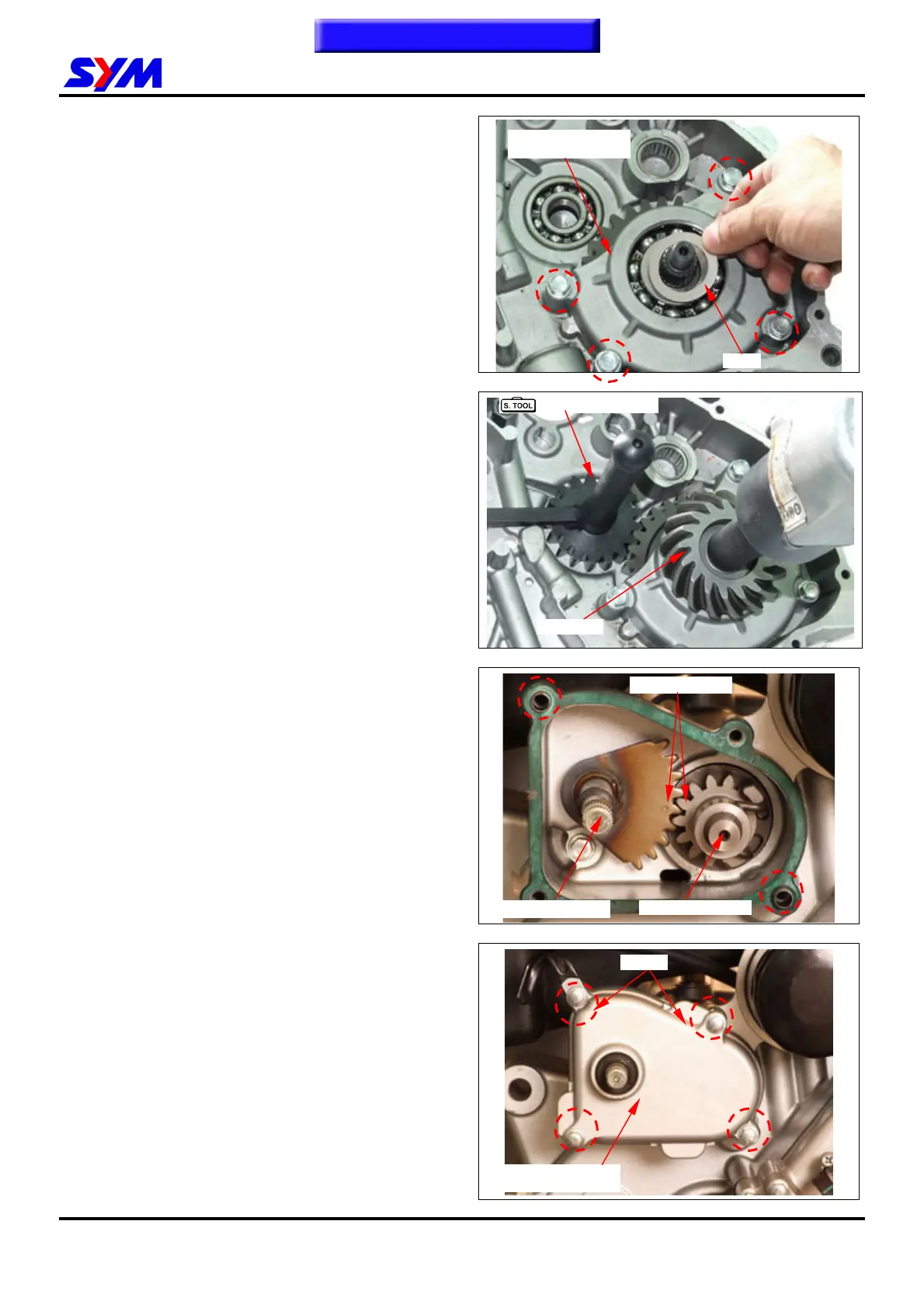

Install the bevel gear housing
Put the same numbers of shim, which were
removed during removal, on the bevel gear
housing.
Install the bevel gear.
Lock the nut by using final shaft stopper.
Special tool:
Tool number：SYM-2343100-REA
Tool name：Final shaft stopper.
Reassemble the right and left crankcase.
Install the gearshift spindle.
Align the concave marks on the shift gear and the
shift drum gear.
Install 2 dowel pins and transmission cover
gasket.
Install the transmission cover.
Bevel
ear
Transmission cover
Bevel gear housing
him
Final gear stopper
Concave marks
Gearshift spindle
hif
r
m
r
4 bolts
