8. V-BELT DRIVING SYSTEM
8-16

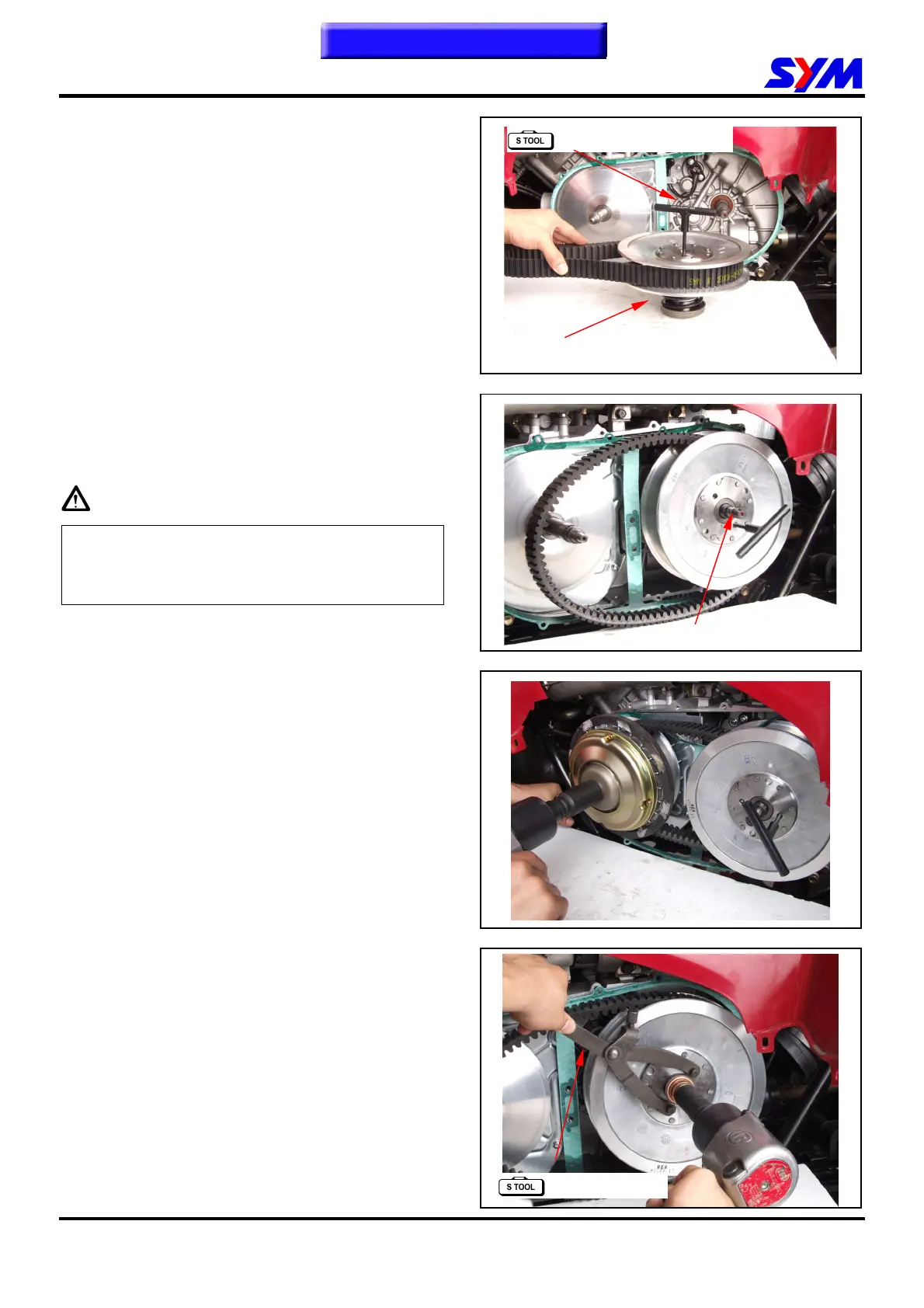

Installation
Use the driven face assy. expander to expand the
driven face assy.
Put the drive belt into the driven face assy. and
hold it tight by hand.
Special Tool
Tool number: SYM-2321000-REA
Tool name: Driven Face Assy. Expander
Put the driven face assy. onto the drive shaft.
Caution
 Use special tool to keep the driven face
assy. open.
 Do not oppress friction plate in order to
avoid distortion or damage.
Install the movable drive face assy.
Hold the movable drive face assy. with the MDF
holder, and then tighten nut to specified torque
value.
Torque value: 8.5~10.5kgf-m
Hold the driven face with universal holder, and
then tighten nut to specified torque value.
Torque value: 5.0~6.0kgf-m
Driven Face Assy.
To this chapter contents
To this chapter contents
Driven Face Assy. Expander
Universal holder
Drive Shaft
