13. COOLING SYSTEM
13-9

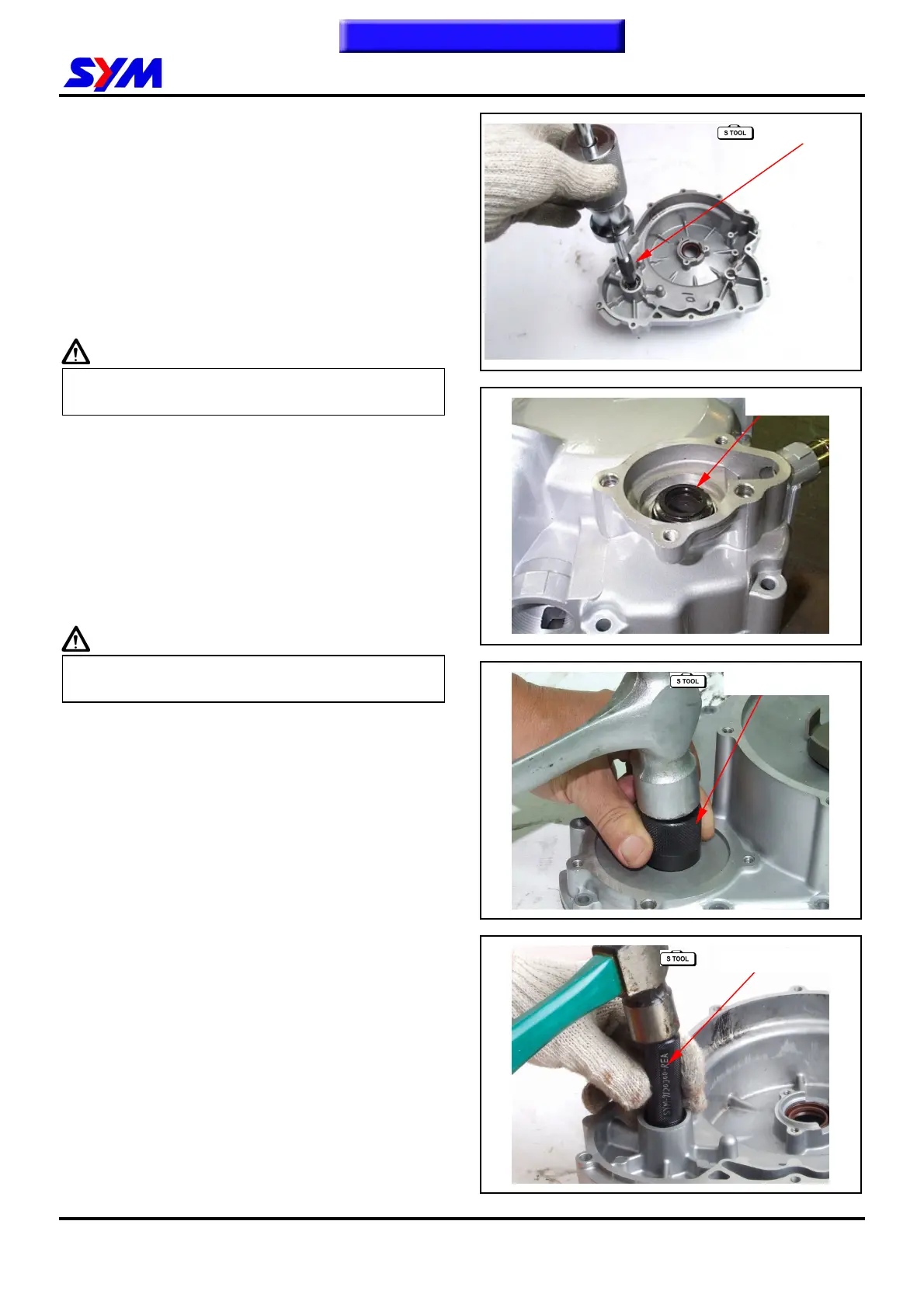

Remove the outside bearing by inner bearing
puller.
Rotate the inner ring of bearing, the bearing shall
move smoothly and quietly.
If the bearing does not rotate smoothly or
produces a noise, replace it with new one.
Special tool:
Tool number：SYM-6204024
Tool name：Inner bearing puller
Check any wear and damage of the mechanical
seal and inside seal.
Caution
The mechanical seal and inside seal must be
replaced as a unit.
Replacement of Mechanical Seal
Remove the inside bearing by inner bearing puller.
Drive the mechanical seal and inner seal out of the
right crankcase.
Special tools:
Tool number：SYM-6204024
Tool name：Inner bearing puller.
Caution
Replace a new mechanical seal after removing
it.
Apply a coat of sealant to the mating surfaces of
the right crankcase before installing the new
mechanical seal.
Install the mechanical seal onto the right
crankcase.
Special tools:
Tool number：SYM-1721700-H9A
Tool name：Water pump mechanical seal driver
Install the water pump oil seal onto the right
crankcase.
Special tools:
Tool number：SYM-9120200-REA
Tool name：Water pump oil seal driver
SYM-6204024
Mechanical seal
SYM-1721700-H9
SYM-9120200-RE
