16. STEERING / FRONT SUSPENSION
16-5

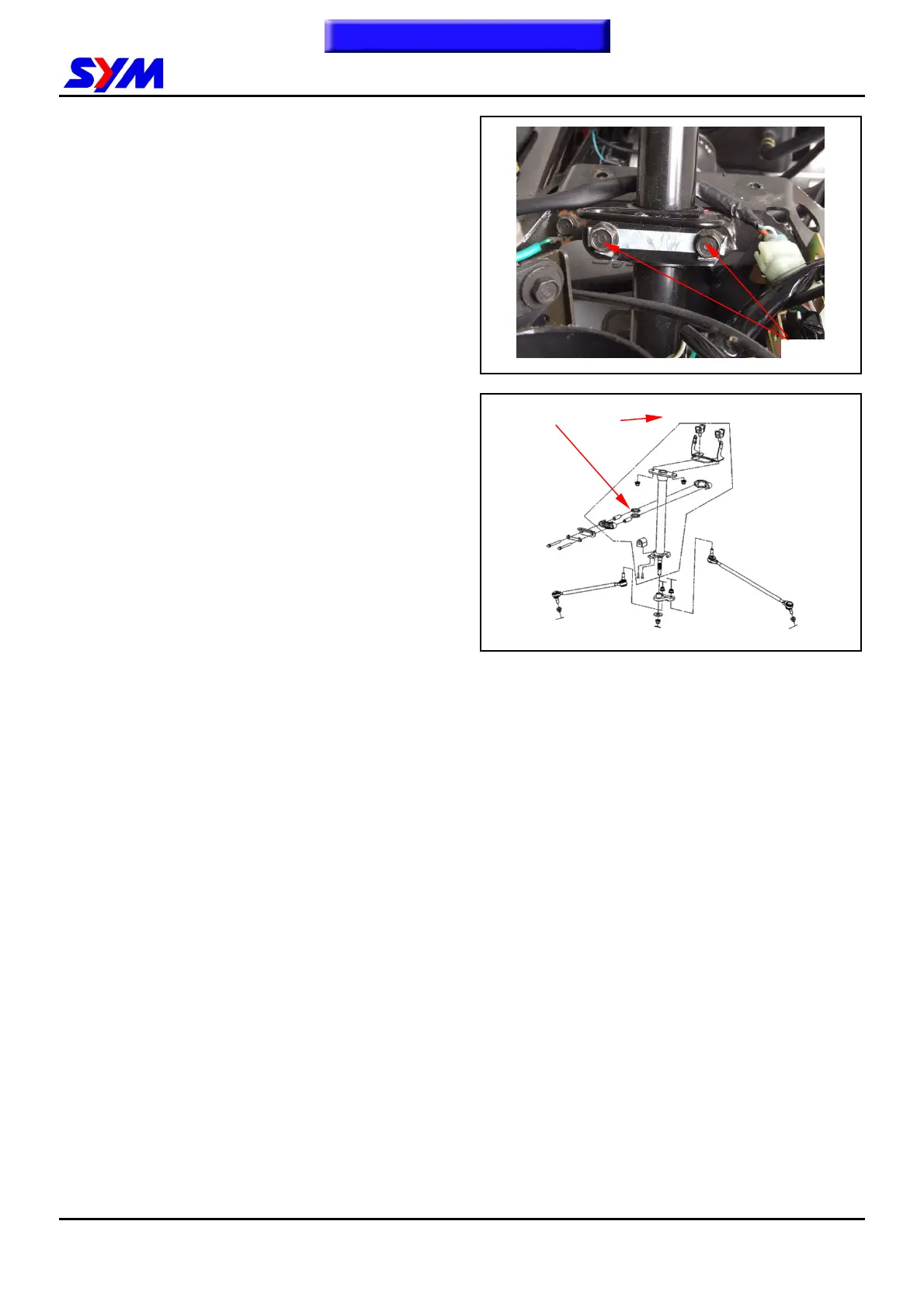

Loosen 2 bolts, and then remove steering shaft
holder, nut fixed plate, pressed plate and steering
shaft.
Inspection
Check oil rings for wear or damage, and replace it
if necessary.
Measure the holder inner diameter.
Maximum limit: Ø39.5 mm
Installation
Install in reverse order of removal procedures.
Apply with grease onto oil liner and holder.
Torque value:
Steering shaft holder bolt 3.4kgf-m
Steering shaft nut 5.0kgf-m
Steering tie-rod nut 5.0kgf-m
2 bolts
Oil rin
s
