17. REAR BRAKE & REAR WHEEL & REAR CUSHION
17-7

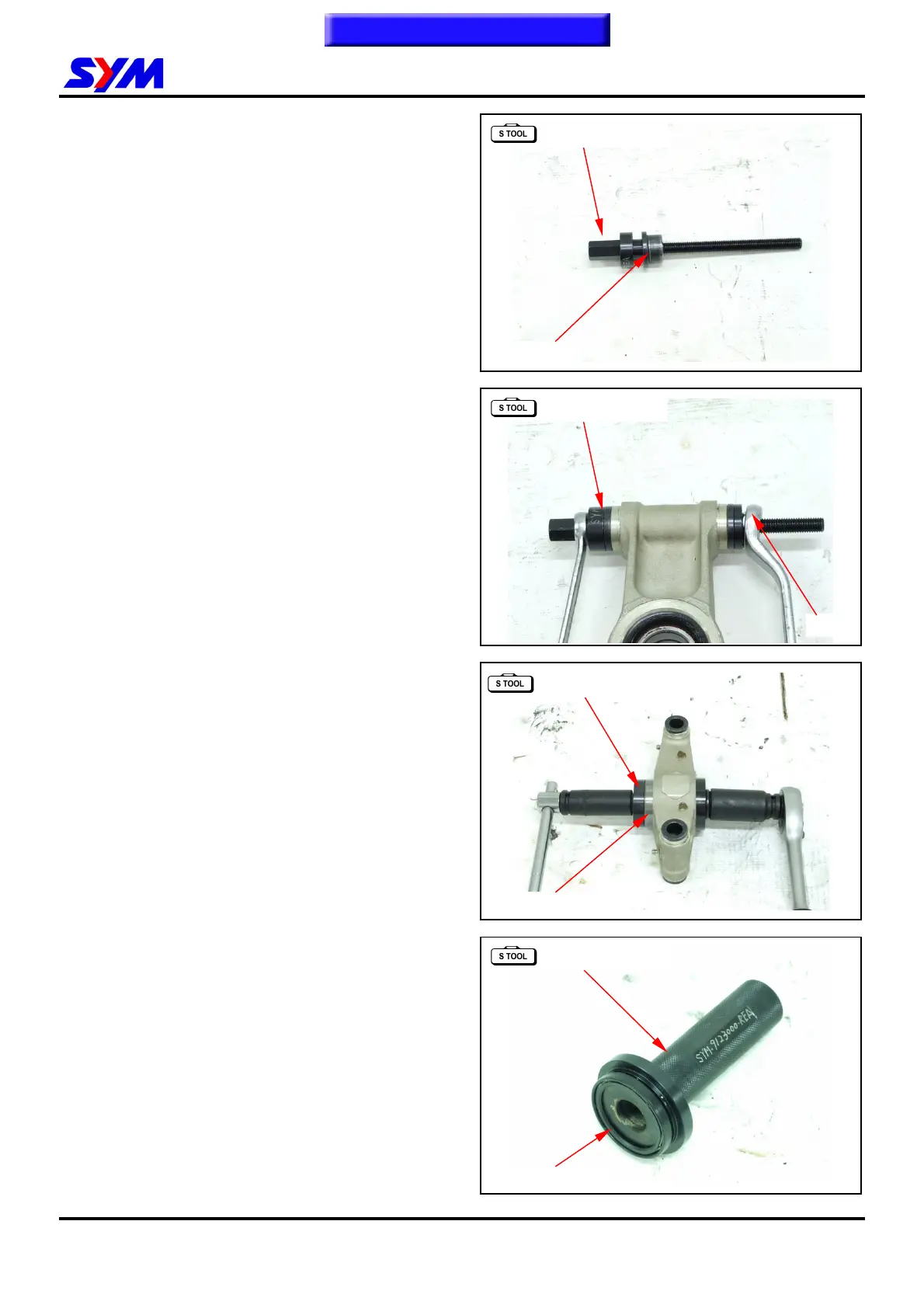

Wheel Hub Assembly
Assembly oiled & special tool.
Tools number: SYM-4011600-REA
Tools name: RR. wheel hub oiled install tool.
.
Assembly oiled & special tool into the rear wheel
hub with special tool.
Tools number: SYM-4011600-REA
Tools name: RR. wheel hub oiled install tool.
Install 2 bearing 6006uu into the rear wheel hub
with special tool.
Tools number: SYM-5024000- REA A6006
Tools name: wheel knuckle body bearing 6006
in puller with air or head tool.
Assembly oil seal 40*50*6.5 by special tool
Tools number: SYM-9123000- REA
Tools name: wheel knuckle body seal
40*50*6.5 in driver.
Cir clip in 55
SYM-4011600-REA
oiled
SYM-4011600-REA
Oil SEAL 40*50*6.5
SYM-9123000-REA
Bearing 6006uu
SYM-5024000- REA A6006
