12 Software description
CyFlow
®
Cube 8 | Operating Manual | May 2018 | Revision 032 113
Quadrant Region: Click the button to preselect creating a quadrant
region on a dual parameter plot.
Region Position: Select a region on a plot and click the button to modify
the position of the selected region as described for the Region Format
tab (see chapter Position group on page 129).
For further information on defining and editing regions, see chapter Creating
regions on page 165.

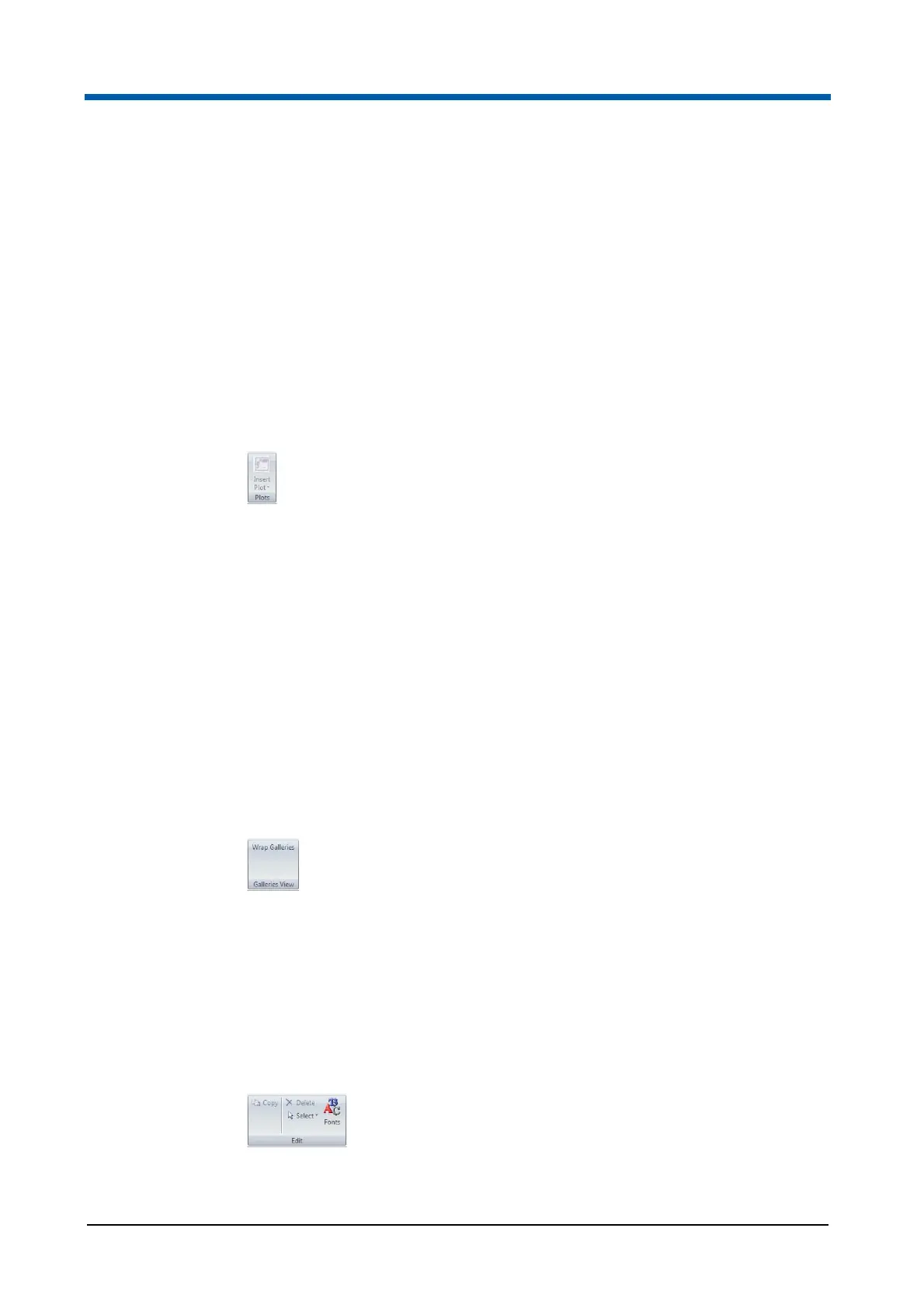

Plots group
The Plots group contains options to insert plots from the Plots area of the
Workspace into overlay plots.
The Plots group contains the following button:
Insert Plot: The button is only enabled when an overlay plot is selected
in the Overlays area of the Workspace. Click the button to display a
drop-down selection of all the plots currently open in the Plots
Workspace. The plots appear in the order they appear in the Workspace
when in Gallery view. When hovering the cursor over a plot, plots that are
not part of the current overlay plot will be highlighted. Click on the desired
highlighted plot to insert it into the current overlay plot.
Plots that are not highlighted are already part of the current overlay plot
and cannot be added again.
Galleries View group
The Galleries View group contains options to modify the way in which plots
are displayed in the Galleries area.
The Galleries View group contains the following button:
Wrap Galleries: The button controls the display of gallery plots for each
overlay plot in single or multiple rows. Click the button to display the
gallery plots on multiple rows if necessary to fit the current window width.
Edit group
The Edit group contains options to copy, delete and select plots in the Plots
area and to edit the fonts of text items in the current Workspace.
