SYNCHRO Excite +: Service & maintenance manual - rev. 7.1
Page 7.37

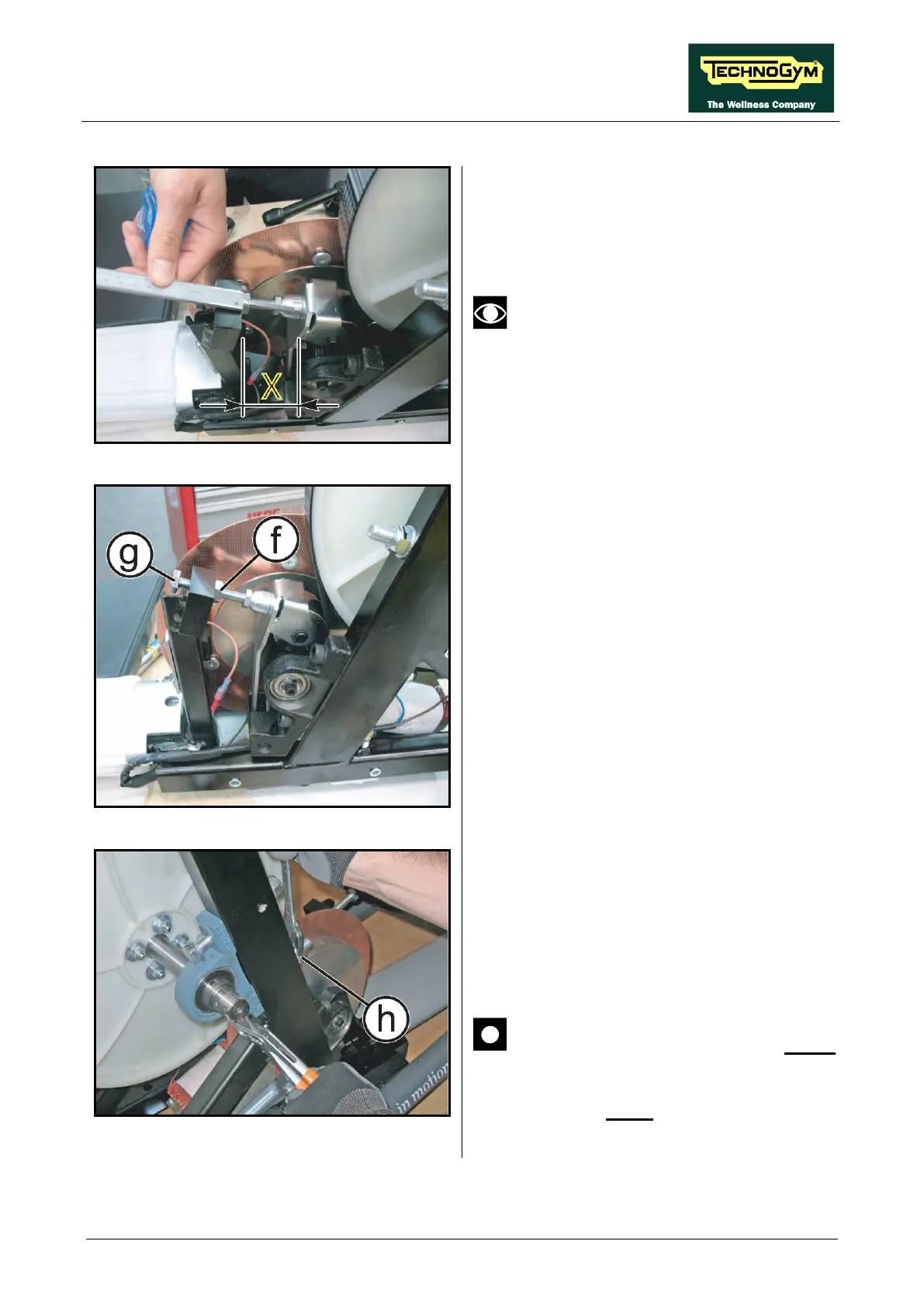

Figure 7.11-4
Take note about the measure “X” on
the tighten device adjusting bolt.
Figure 7.11-5
4. Loosen the nut (f) and the bolt (g), with a
17mm
wrench; to loosen the tension on the
belt.
Figure 7.11-6
5.
Mark the position of the pillow blocks using
a pen.
6. Unscrew the nut (h)
using a 17mm wrench,
locking the bolt on the opposite side, as
shown in the figure at the side.
AVVERTENZA: If working on plastic
support, pay attention to lock down
the screws, using a torque wrench
setting of 20Nm and no more.
Continued in following page...
