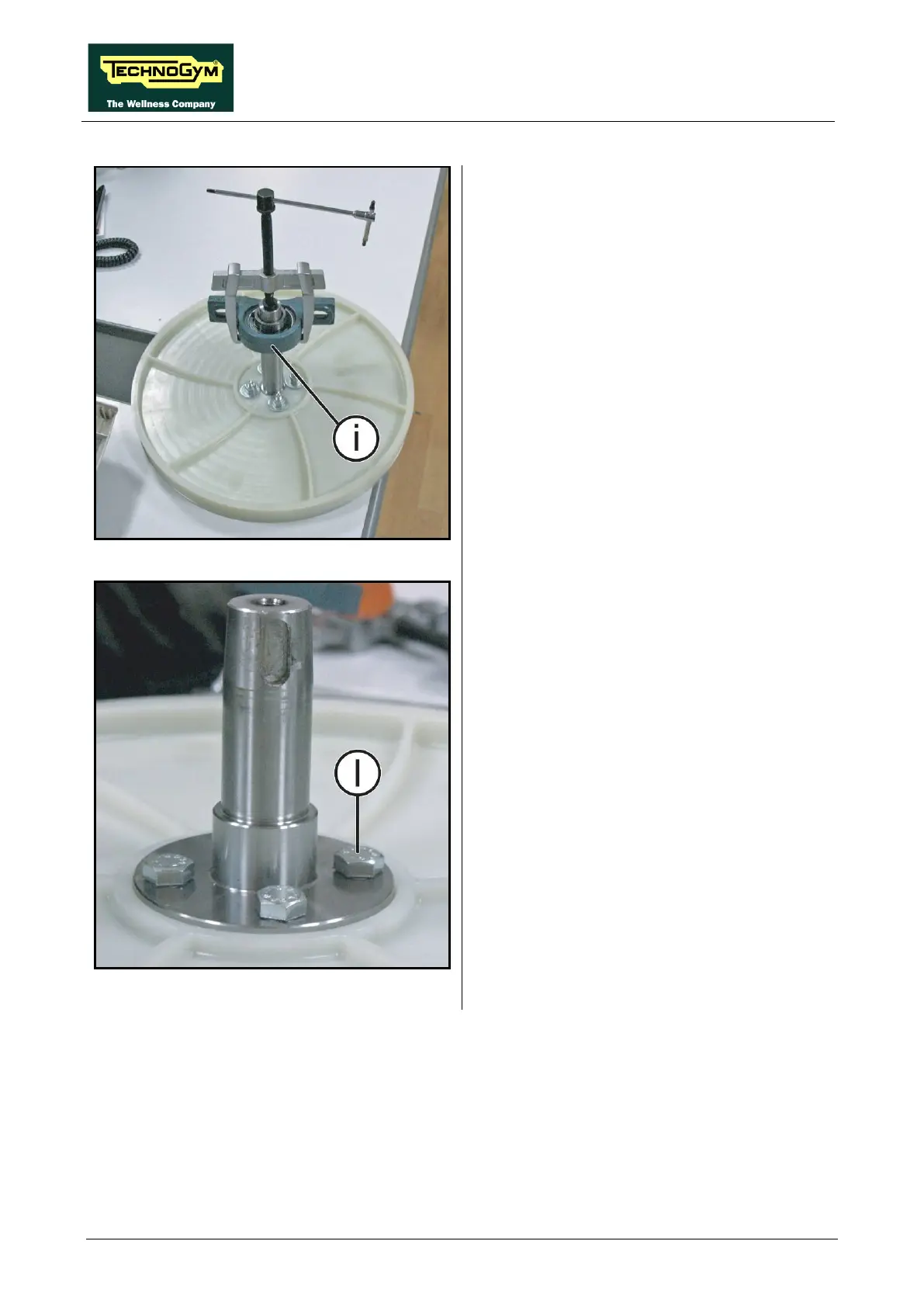

Figure 7.11-7
7. Use an extractor, to remove the axial support
(i), as shown in the figure at the side.
Figure 7.11-8
8. Back off the 4 screws (l)
with a 13mm
wrench, looking the nut on the opposite side.
If necessary replace the primary shaft or the
pulley.
To reassemble the group, carry out the above
steps in reverse order, taking care of the
following notes.
Continued in following page...
