Tektronix 2212 Service Manual

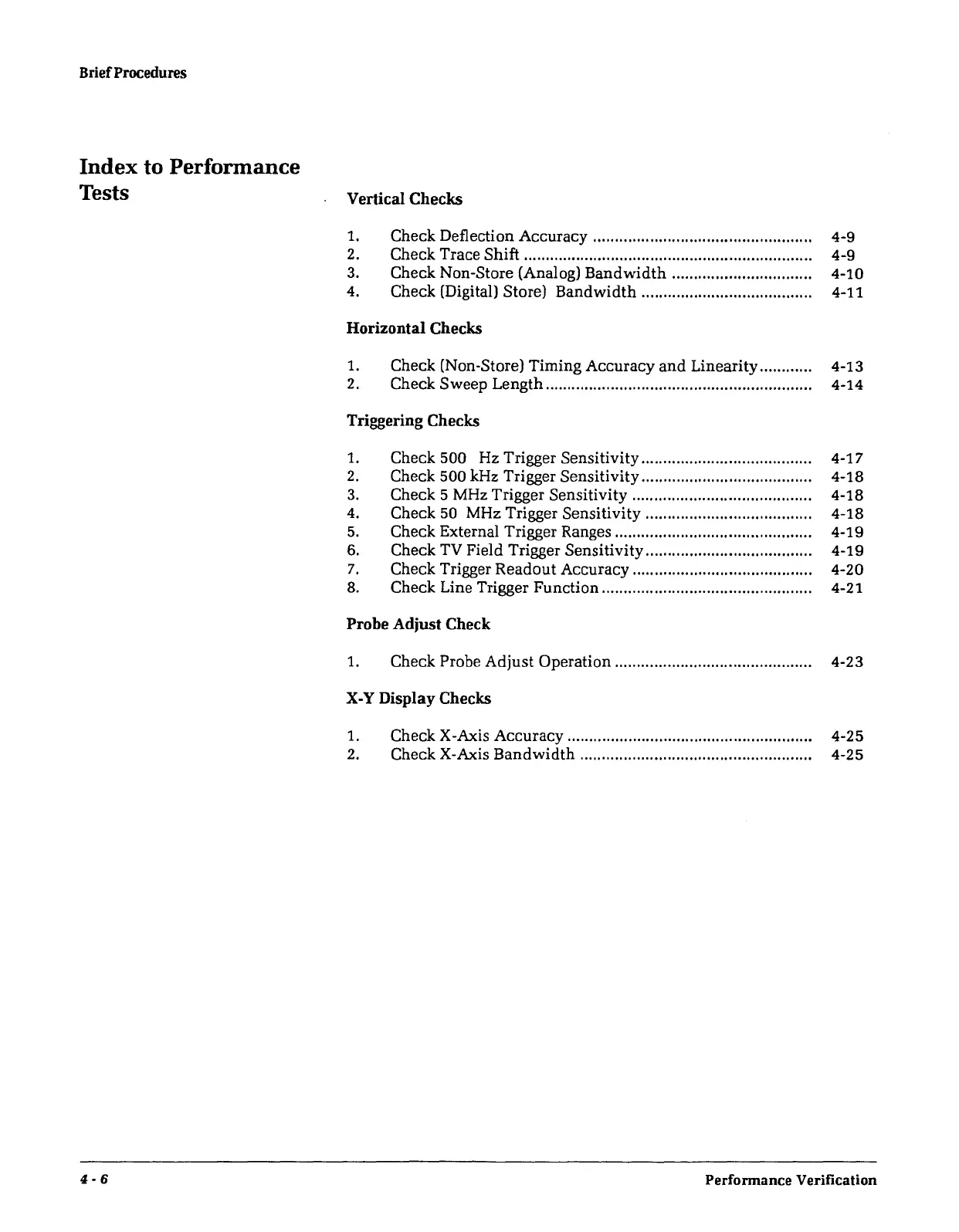

Brief Procedures
Index to Performance
Tests
4-6
Vertical Checks
1. Check Deflection Accuracy.................................................. 4-9
2. Check Trace Shift .................................................................. 4-9
3. Check Non-Store (Analog) Bandwidth ................................ 4-10
4. Check (Digital) Store) Bandwidth....................................... 4-11
Horizontal Checks
1. Check (Non-Store) Timing Accuracy and Linearity............ 4-13
2. Check Sweep Length............................................................. 4-14
Triggering Checks
1.
2.
3.
4.
5.
6.
7.
8.
Check 500 Hz Trigger Sensitivity ..................................... ..
Check 500 kHz Trigger Sensitivity ..................................... ..
Check 5 MHz Trigger Sensitivity ....................................... ..
Check 50 MHz Trigger Sensitivity .................................... ..
Check External Trigger Ranges ........................................... ..
Check TV Field Trigger Sensitivity .................................... ..
Check Trigger Readout Accuracy ........................................ .
Check Line Trigger Function ............................................... .
Probe Adjust Check
4-17
4-18
4-18
4-18
4-19
4-19
4-20
4-21
1. Check Probe Adjust Operation............................................. 4-23
X-Y Display Checks
1. Check X-Axis Accuracy........................................................ 4-25
2. Check X-Axis Bandwidth ..................................................... 4-25
Performance Verification
