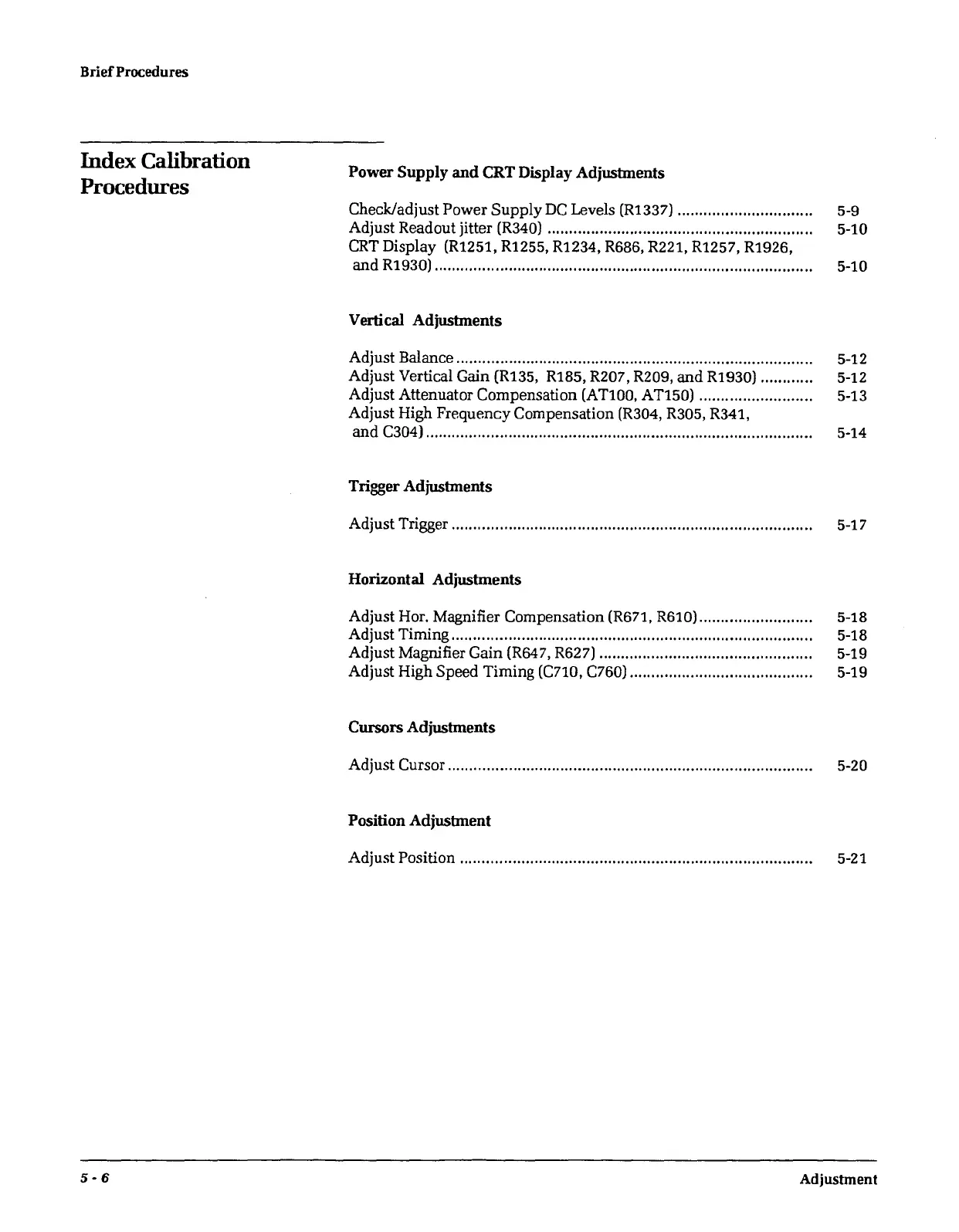

Brief Procedures

Index Calibration

Procedures

5-6

Power Supply and CRT Display Adjustments

Check/adjust Power

Supply

Levels (R1337) ............................... 5-9

Adjust Readout jitter (R340) ............................................................. 5-10

CRT

Display (R1251, R1255, R1234, R686, R221, R1257, R1926,

and

R1930) ....................................................................................... 5-10

Vertical Adjustments

Adjust Balance.................................................................................. 5-12

Adjust Vertical Gain (R135, R185, R207, R209,

and

R1930) ............ 5-12

Adjust Attenuator Compensation (AT100, AT150) .......................... 5-13

Adjust High Frequency Compensation (R304, R305, R341,

and

C304) ......................................................................................... 5-14

Trigger Adjustments

Adjust Trigger................................................................................... 5-17

Horizontal Adjustments

Adjust Hor. Magnifier Compensation (R671, R610) .......................... 5-18

Adjust Timing................................................................................... 5-18

Adjust Magnifier Gain (R647, R627) ................................................. 5-19

Adjust High Speed Timing (C710, C760) .......................................... 5-19

Cursors Adjustments

Adjust Cursor.................................................................................... 5-20

Position Adjustment

Adjust Position................................................................................. 5-21

Adjustment
