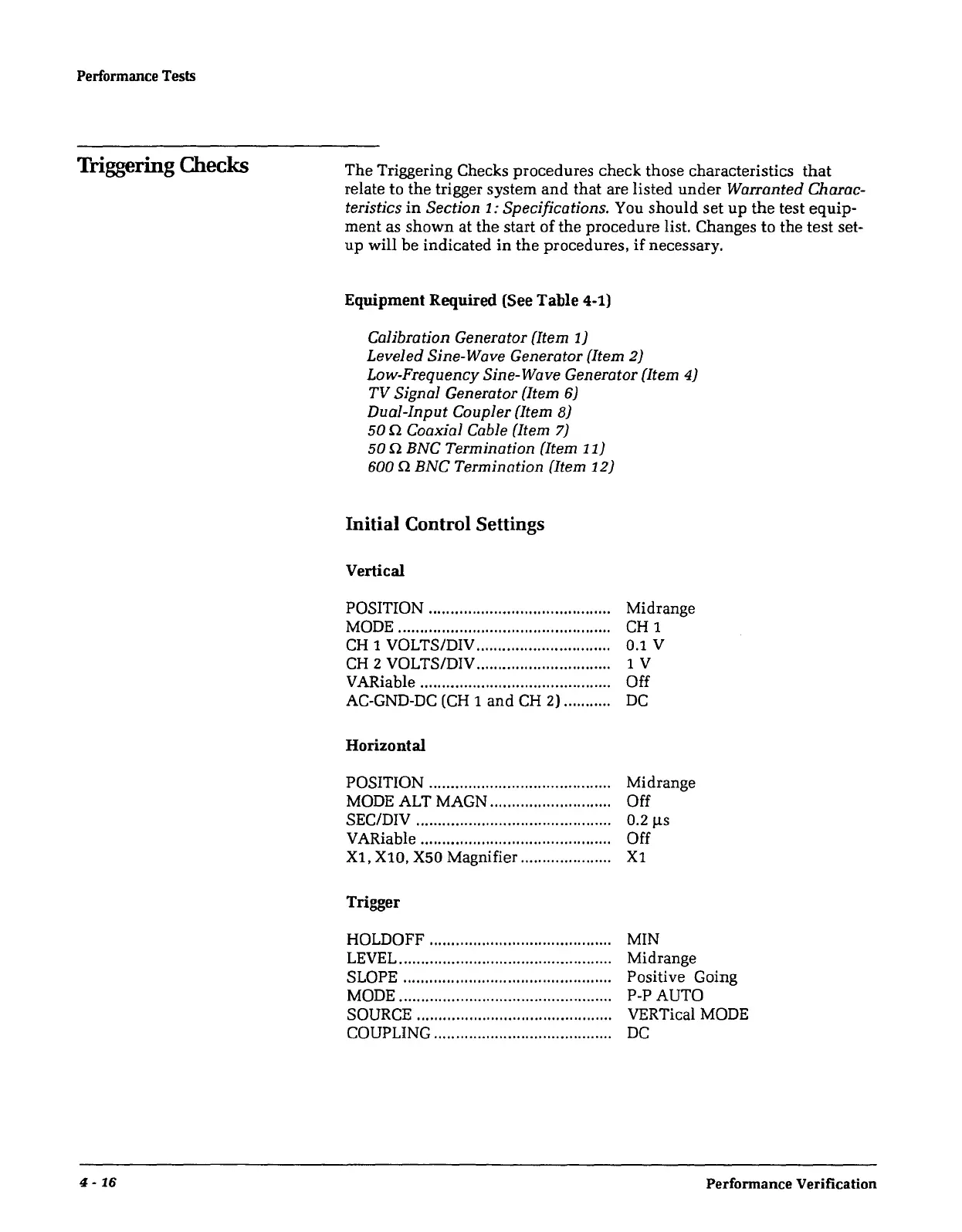

Performance Tests
Triggering
Checks
The Triggering Checks procedures check those characteristics
that
relate to
the
trigger system
and
that are listed
under
Warranted Charac-
teristics
in
Section
1:
Specifications. You should
set
up
the
test equip-
ment as
shown
at the start of
the
procedure list. Changes to the test set-
up
will be indicated
in
the
procedures,
if
necessary.
Equipment Required (See Table 4-1)
Calibration Generator (Item
1)
Leveled Sine-Wave Generator (Item 2)
Low-Frequency Sine-Wave Generator (Item
4)
TV
Signal Generator (Item
6)
Dual-Input Coupler (Item 8)
50 n Coaxial Cable (Item 7)
50 n BNC Termination (Item
11)
600 n
BNC
Termination (Item 12)
Initial Control Settings
Vertical
POSITION ..... ...
..
........... .....
..
..... ......... Midrange
MODE.................................................
CH
1
CH
1 VOLTS/DIV...............................
0.1
V
CH
2 VOLTS/DIV............................... 1 V
V ARiable .............................. ........ ...... Off
AC-GND-DC
(CH
1 and
CH
2)
...........
DC
Horizontal
POSITION .......................................... Midrange
MODE
ALT MAGN .... .... ....
..
..
...... ...... Off
SEC/DIV ............................................. 0.2 µs
V ARiable ... ....... .... ...... .......... .............. Off
Xl,
XlO,
X50
Magnifier.....................
Xl
Trigger
HOLDOFF ...... . . ....
...
...
.
..
. ....
..
. ....
..
....... MIN
LEVEL................................................. Midrange
SLOPE ............ ............ ........................ Positive Going
MODE................................................. P-P AUTO
SOURCE . ....
..
...... ............. ............ ....... VERTical
MODE
COUPLING
...
..
...
.....
..
.......... .....
..
.........
DC
4 -
16
Performance Verification
