Horizontal System
and
Z-Axis
Circuit
Trigger Circuit
Sweep
Logic
Circuit
3-
14
0

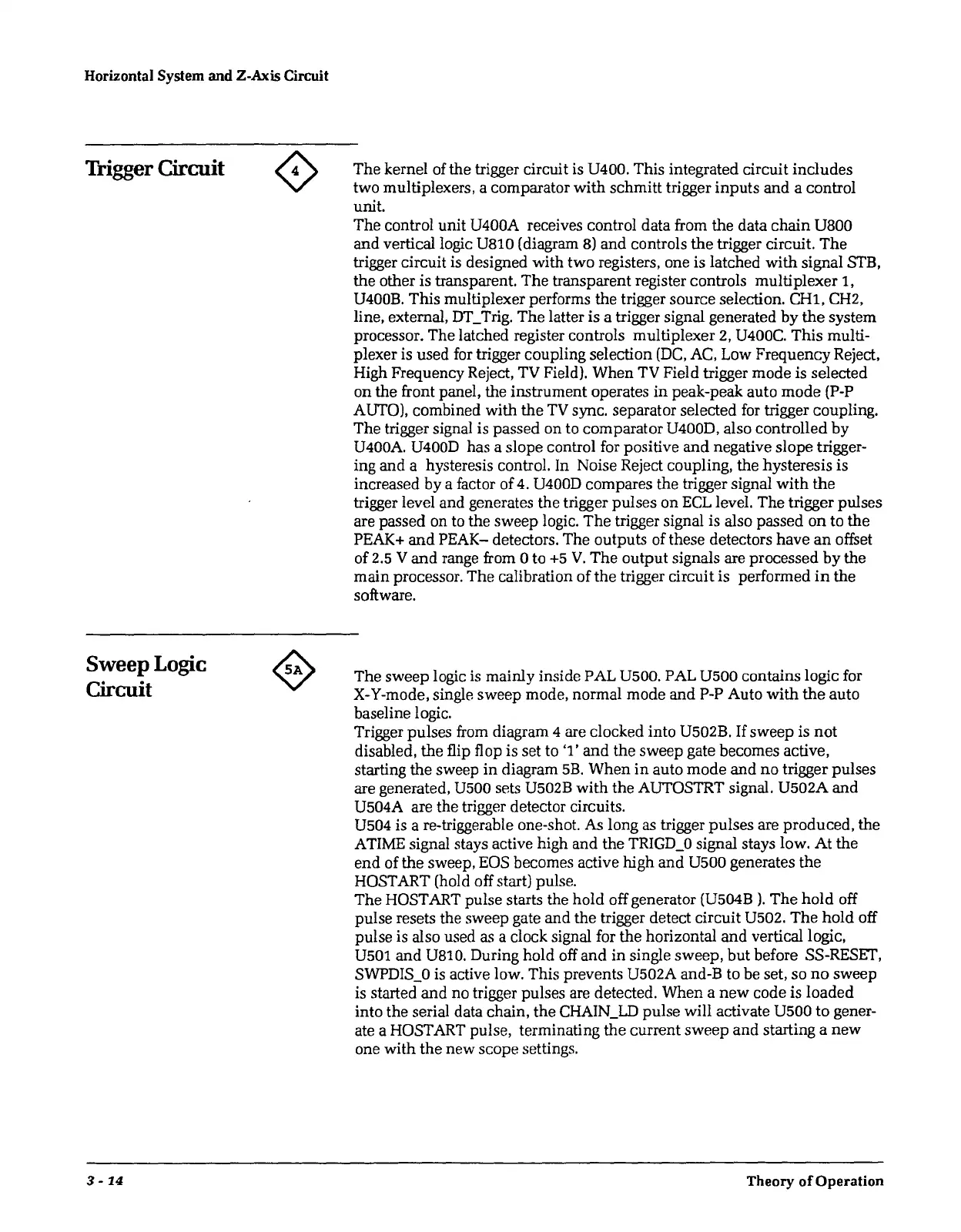

The
kernel of the trigger circuit is U400. This integrated circuit includes
two multiplexers, a comparator with schmitt trigger inputs and a control
unit.
The
control unit U400A receives control data from the data
chain
U800
and vertical logic U810 (diagram
8)
and controls
the
trigger circuit.
The
trigger circuit is designed with two registers, one is latched with signal STB,
the other is transparent.
The
transparent register controls multiplexer 1,
U400B. This multiplexer performs the trigger source selection.
CHl,
CH2,
line, external, DT_Trig. The latter is a trigger signal generated by
the
system
processor. The latched register controls multiplexer
2,
U400C. This multi-
plexer is used
for
trigger coupling selection
(DC,
AC, Low Frequency Reject,
High Frequency Reject, TV Field). When TV Field trigger mode is selected
on the front panel, the instrument operates
in
peak-peak auto mode (P-P
AUTO), combined with
the
TV
sync. separator selected
for
trigger coupling.
The
trigger signal is passed on to comparator U400D, also controlled by
U400A. U400D has a slope control for positive
and
negative slope trigger-
ing and a hysteresis control. In Noise Reject coupling, the hysteresis is
increased by a factor of
4.
U400D compares the trigger signal
with
the
trigger level and generates the trigger pulses on
ECL
level. The trigger pulses
are passed on to the sweep logic.
The
trigger signal is also passed
on
to the
PEAK+
and
PEAK- detectors. The outputs of these detectors have
an
offset
of
2.5
V
and
range from Oto
+5
V.
The
output signals are processed
by
the
main processor.
The
calibration
of
the
trigger circuit is performed
in
the
software.
The
sweep logic is mainly inside PAL U500. PAL U500 contains logic for
X-Y-mode, single sweep mode, normal mode and P-P Auto
with
the
auto
baseline logic.
Trigger pulses from diagram 4 are clocked into U502B. If sweep is not
disabled, the flip flop is set to '1'
and
the
sweep gate becomes active,
starting the sweep
in
diagram
5B.
When
in
auto mode and no trigger pulses
are generated, U500 sets U502B with the AUTOSTRT signal. U502A and
U504A are the trigger detector circuits.
U504 is a re-triggerable one-shot.
As
long as trigger pulses are produced, the
ATIME signal stays active high and the
TRIGD_0
signal stays low.
At
the
end
of the sweep, EOS becomes active high and U500 generates the
HOST ART (hold off start) pulse.
The
HOST ART pulse starts the hold off generator (U504B
).
The
hold
off
pulse resets the sweep gate and the trigger detect circuit U502.
The
hold off
pulse is also used as a clock signal for the horizontal
and
vertical logic,
U501 and U810. During hold off
and
in
single sweep, but before SS-RESET,
SWPDIS_0
is
active low. This prevents U502A and-B to be set, so
no
sweep
is started
and
no trigger pulses are detected. When a
new
code is loaded
into the serial data chain,
the
CHAIN_LD pulse will activate U500 to gener-
ate a HOST ART pulse, terminating the current sweep and starting a
new
one with
the
new scope settings.
