Tektronix 2212 Service Manual

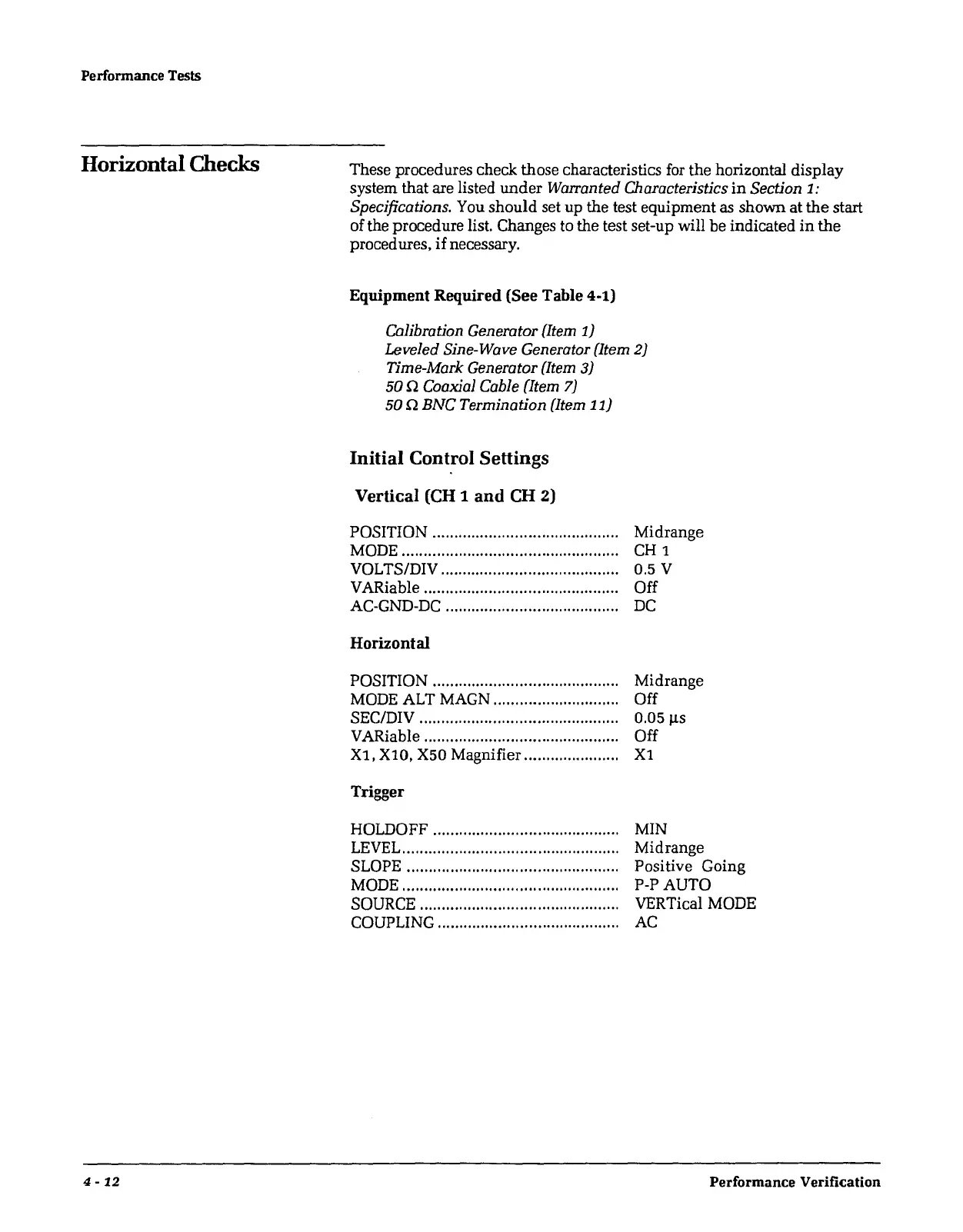

Performance Tests
Horizontal Checks
These procedures check those characteristics for the horizontal display
system that are listed under Warranted Characteristics in Section 1:
Specifications. You should set up the test equipment as shown at the start
of the procedure list. Changes to the test set-up will be indicated in the
procedures, if necessary.
Equipment Required (See Table 4-1)
Calibration Generator (Item 1)
Leveled Sine-Wave Generator (Item 2)
Time-Mark Generator (Item 3)
50 n Coaxial Cable (Item 7)
50 n BNC Termination (Item 11)
Initial Control Settings
Vertical (CH 1 and CH 2)
POSITION ... .. ........ .... .. . .. ... .. .. ............ .. Midrange
MODE .................................................. CH 1
VOLTS/DIV......................................... 0.5 V
V ARiable ........................ ..................... Off
AC-GND-DC ........................................ DC
Horizontal
POSITION ... .......... ...... . ... . ..... .............. Midrange
MODE ALT MAGN ...... ....... ................ Off
SEC/DIV .............................................. 0.05 µs
V ARiable .. .. .. .. .. .. .. ...... .. .. . . ................. .. Off
Xl, X10, X50 Magnifier...................... Xl
Trigger
HOLDOFF ... ..... ..... ...... . ................. ...... MIN
LEVEL.................................................. Midrange
SLOPE ................................................. Positive Going
MODE.................................................. P-P AUTO
SOURCE .............................................. VERTical MODE
COUPLING . ........... ......... ... ..... .... ... .... .. AC
4 - 12 Performance Verification
