Tektronix 2212 Service Manual

Brief Procedures

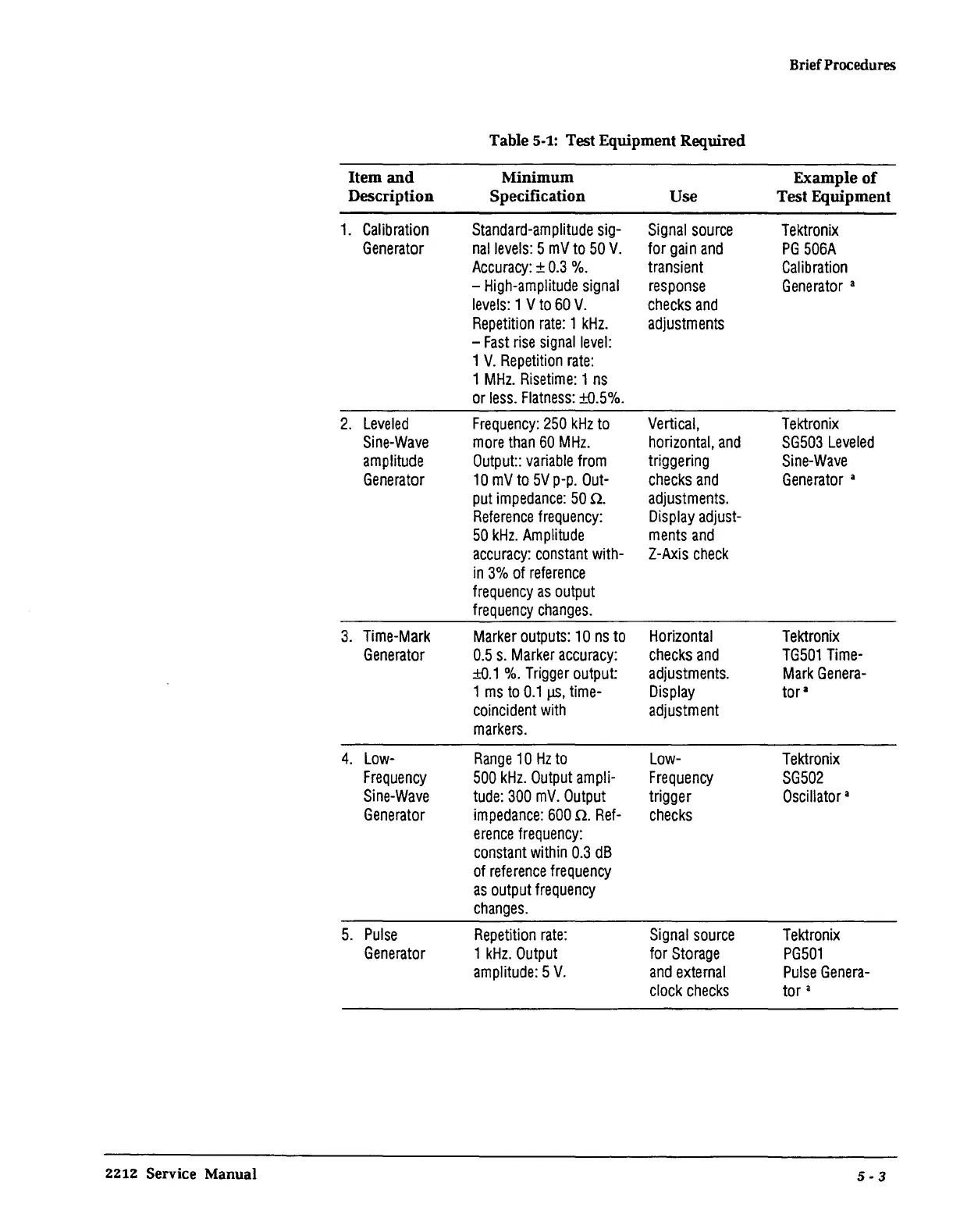

Table 5-1: Test Equipment Required
Item and Minimum
Example of
Description Specification
Use Test Equipment
1. Calibration
Standard-amplitude sig-
Signal source
Tektronix
Generator nal levels: 5 mV to 50 V. for gain and
PG 506A
Accuracy: ± 0.3 %. transient
Calibration
- High-amplitude signal
response
Generator a
levels: 1 V to 60 V.
checks and
Repetition rate: 1 kHz.
adjustments
- Fast rise signal level:
1 V. Repetition rate:
1 MHz. Risetime: 1 ns
or less. Flatness: ±0.5%.
2. Leveled
Frequency: 250 kHz to Vertical,
Tektronix
Sine-Wave more than 60 MHz. horizontal, and SG503 Leveled
amplitude Output:: variable from
triggering Sine-Wave
Generator
1 O mV to 5V p-p. Out- checks and
Generator a
put impedance: 50 n. adjustments.
Reference frequency:
Display adjust-
50 kHz. Amplitude ments and
accuracy: constant with- Z-Axis check
in 3% of reference
frequency as output
frequency changes.
3. Time-Mark Marker outputs: 1 O ns to Horizontal Tektronix
Generator 0.5 s. Marker accuracy: checks and TG501 Time-
±0.1 %. Trigger output:
adjustments. Mark Genera-
1 ms to 0.1 µs, time- Display tor•
coincident with
adjustment
markers.
4.
Low-
Range 10 Hz to Low-
Tektronix
Frequency 500 kHz. Output ampli-
Frequency SG502
Sine-Wave
tude: 300 mV. Output trigger
Oscillator a
Generator impedance: 600 n. Ref- checks
erence frequency:
constant within 0.3 dB
of reference frequency
as output frequency
changes.
5. Pulse Repetition rate: Signal source Tektronix
Generator
1 kHz. Output
for Storage PG501
amplitude: 5 V. and external Pulse Genera-
clock checks
tor a
2212 Service Manual
5-3
