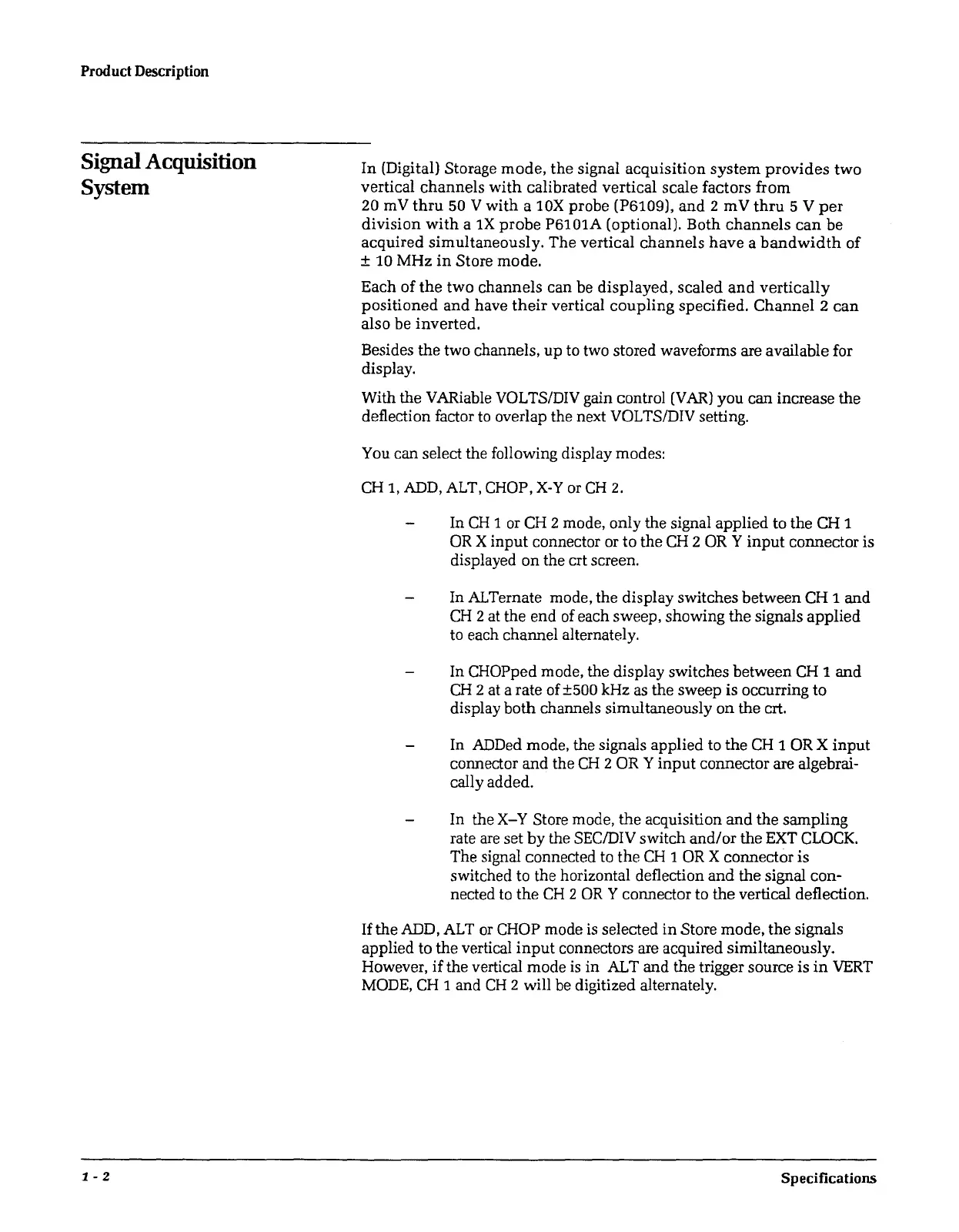

Product Description
Signal Acquisition
System
1-2
In
(Digital) Storage mode,
the
signal acquisition system
provides
two
vertical channels
with
calibrated vertical scale factors from
20
mV
thru
50 V with a 10X probe (P6109), and 2 mV
thru
5 V
per
division
with
a
1X
probe P6101A (optional). Both
channels
can
be
acquired simultaneously. The vertical channels
have
a
bandwidth
of
± 10 MHz
in
Store mode.
Each of
the
two channels can be displayed, scaled
and
vertically
positioned and have
their
vertical
coupling
specified. Channel 2
can
also be inverted.
Besides the two channels,
up
to two stored waveforms are available for
display.
With the V ARiable
VOL
TS/DIV gain control
(VAR)
you can increase the
deflection factor to overlap the next
VOL
TS/DIV setting.
You can select the following display modes:
CH
1,
ADD,
ALT, CHOP,
X-Y
or
CH
2.
In
CH
1
or
CH
2 mode, only the signal applied to the
CH
1
OR
X input connector or
to
the
CH
2
OR
Y
input
connector is
displayed
on
the crt screen.
In ALTernate mode, the display switches between
CH
1 and
CH
2 at the end of each sweep, showing the signals applied
to each channel alternately.
In CHOPped mode, the display switches between
CH
1 and
CH
2 at a rate of ±500 kHz
as
the sweep is occurring to
display both channels simultaneously
on
the crt.
In
ADDed
mode, the signals applied to the
CH
1
OR
X
input
connector and the
CH
2
OR
Y
input
connector are algebrai-
cally added.
In the X-Y Store mode, the acquisition
and
the sampling
rate are set
by
the SEC/DIV switch and/or the
EXT
CLOCK.
The signal connected to
the
CH
1
OR
X connector is
switched to the horizontal deflection
and
the signal con-
nected
to
the
CH
2
OR
Y connector to
the
vertical deflection.
If the
ADD,
ALT
or CHOP mode
is
selected
in
Store mode, the signals
applied to the vertical
input
connectors are acquired similtaneously.
However,
if
the vertical mode
is
in ALT and the trigger source is
in
VERT
MODE,
CH
1 and
CH
2 will
be
digitized alternately.
Specifications
