Performance Tests

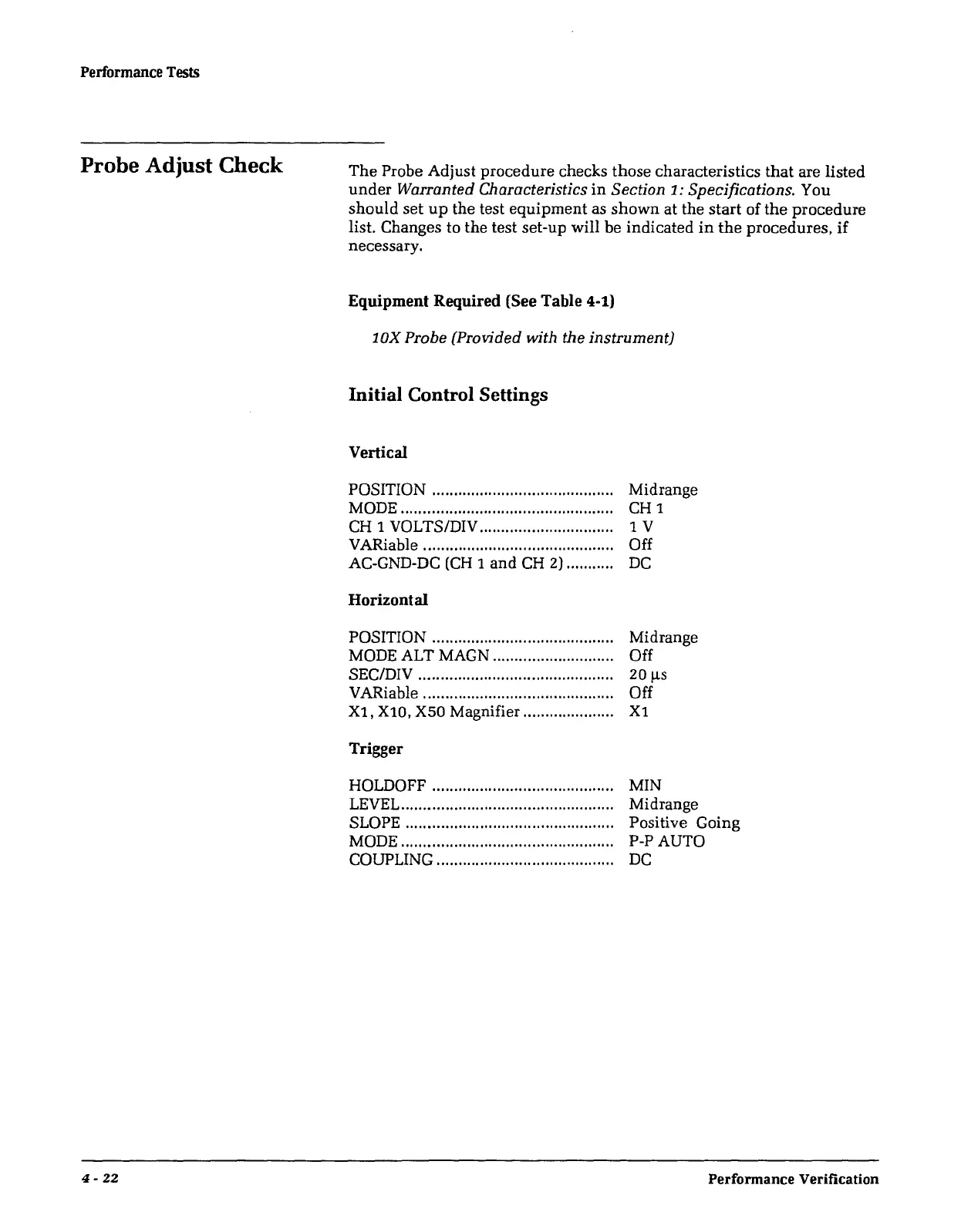

Probe Adjust Check
The Probe Adjust procedure checks those characteristics that are listed
under Warranted Characteristics in Section 1: Specifications. You
should set up the test equipment as shown at the start of the procedure
list. Changes to the test set-up will be indicated in the procedures, if
necessary.
Equipment Required (See Table 4-1)
10X Probe (Provided with the instrument)
Initial Control Settings
Vertical
POSITION . .. ....... .... .. ... .. . .. .... . .... ..... .. .. Midrange
MODE................................................. CH 1
CH 1 VOL TS/DIV............................... 1 V
V ARiable . .. ......... .............. .................. Off
AC-GND-DC (CH 1 and CH 2) ........... DC
Horizontal
POSITION . .... ..... ......... ... .... ..... .. ......... Midrange
MODE ALT MAGN ............................ Off
SEC/DIV............................................. 20 µs
V ARiable . .. ..... .... ............ ......... ....... .... Off
X1, X10, X50 Magnifier..................... X1
Trigger
HOLDOFF . .. .. .. ........ ...... ..... ..... .. ... .... .. MIN
LEVEL................................................. Midrange
SLOPE ... .. .. ... ....... ... .. ... .. .. ... .. .. ............ Positive Going
MODE................................................. P-P AUTO
COUPLING . .. ... .... ... .. ......... ... ... .. .... . .. .. DC
4 - 22 Performance Verification
