Tektronix 2212 Service Manual

Performance Tests

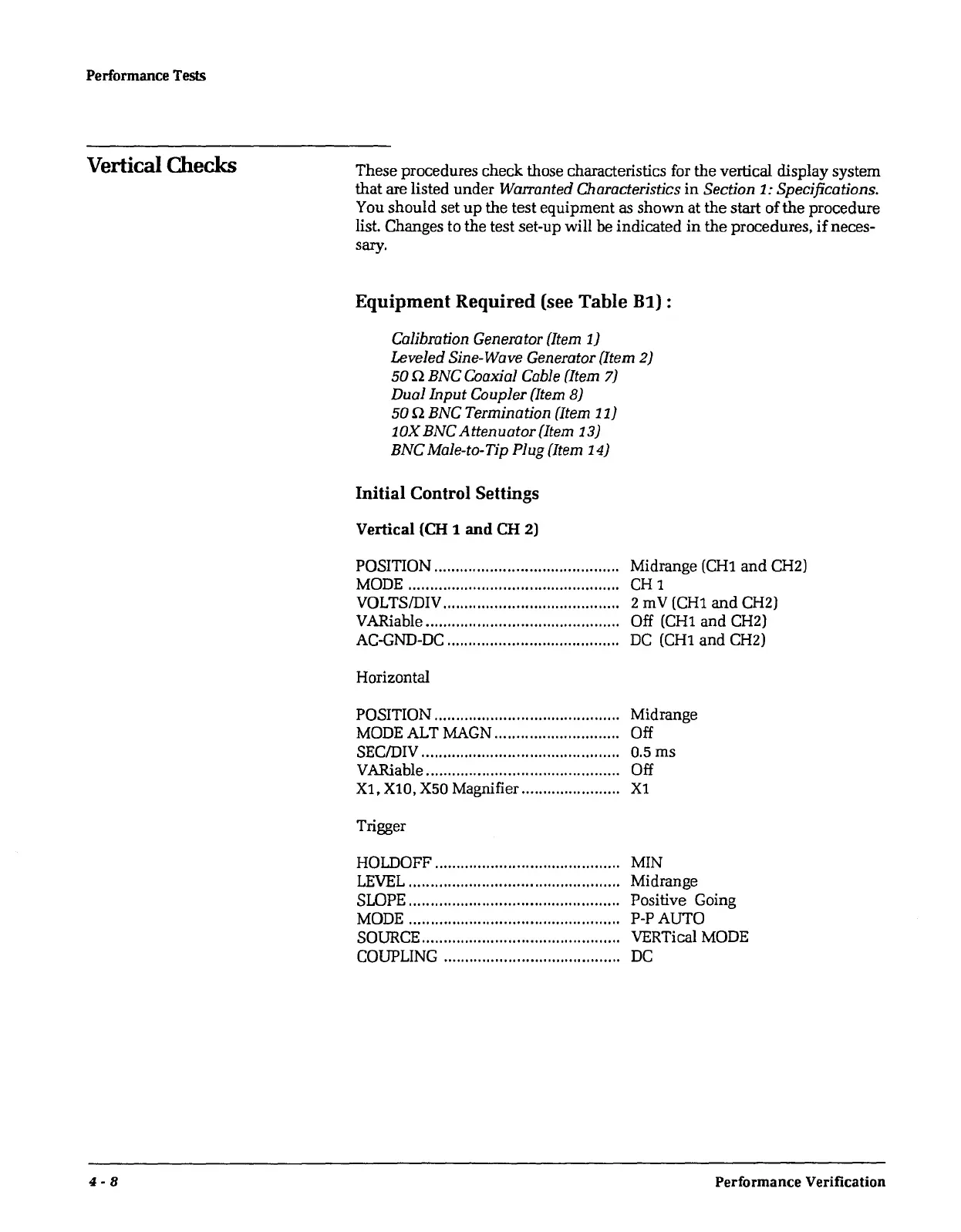

Vertical Checks
4-8
These procedures check those characteristics for the vertical display system
that are listed under Warranted Characteristics in Section 1: Specifications.
You should set up the test equipment as shown at the start of the procedure
list. Changes to the test set-up will be indicated in the procedures, if neces-
sary.
Equipment Required (see Table Bl) :
Calibration Generator (Item 1)
Leveled Sine-Wave Generator (Item 2)
50 n ENC Coaxial Cable (Item 7)
Dual Input Coupler (Item 8)
50 .Q BNC Termination (Item 11)
10XBNCAttenuator(Item 13)
BNC Male-to-Tip Plug (Item 14)
Initial Control Settings
Vertical (CH 1 and CH 2)
POSITION........................................... Midrange (CH1 and CH2)
MODE ................................................. CH 1
VOLTS/DIV ......................................... 2 mV (CH1 and CH2)
V ARiable .......... ... ......... ..... ......... ..... .... Off (CH1 and CH2)
AC-GND-DC ........ ...... ... ....... ......... ... .. .. DC (CH1 and CH2)
Horizontal
POSITION . .... .. . .. .. . .. .. .. . .. .. ............. ... . .. Midrange
MODEALTMAGN ............................. Off
SEC/DIV.............................................. 0.5 ms
V ARiable . .. .. .. . .. ... .. .. .. . .. .. .. . .. .. .. . .. .. ....... Off
X1, X10, X50 Magnifier....................... X1
Trigger
HOLDOFF ..... .. . .. ..... .. .. . .. .. ..... .. . .. .. . .. . .. . MIN
LEVEL ................................................. Midrange
SLOPE ................................................. Positive Going
MODE .............. .......... .... ... ..... .... ... ...... P-P AUTO
SOURCE.............................................. VERTical MODE
COUPLING ......................................... DC
Performance Verification
