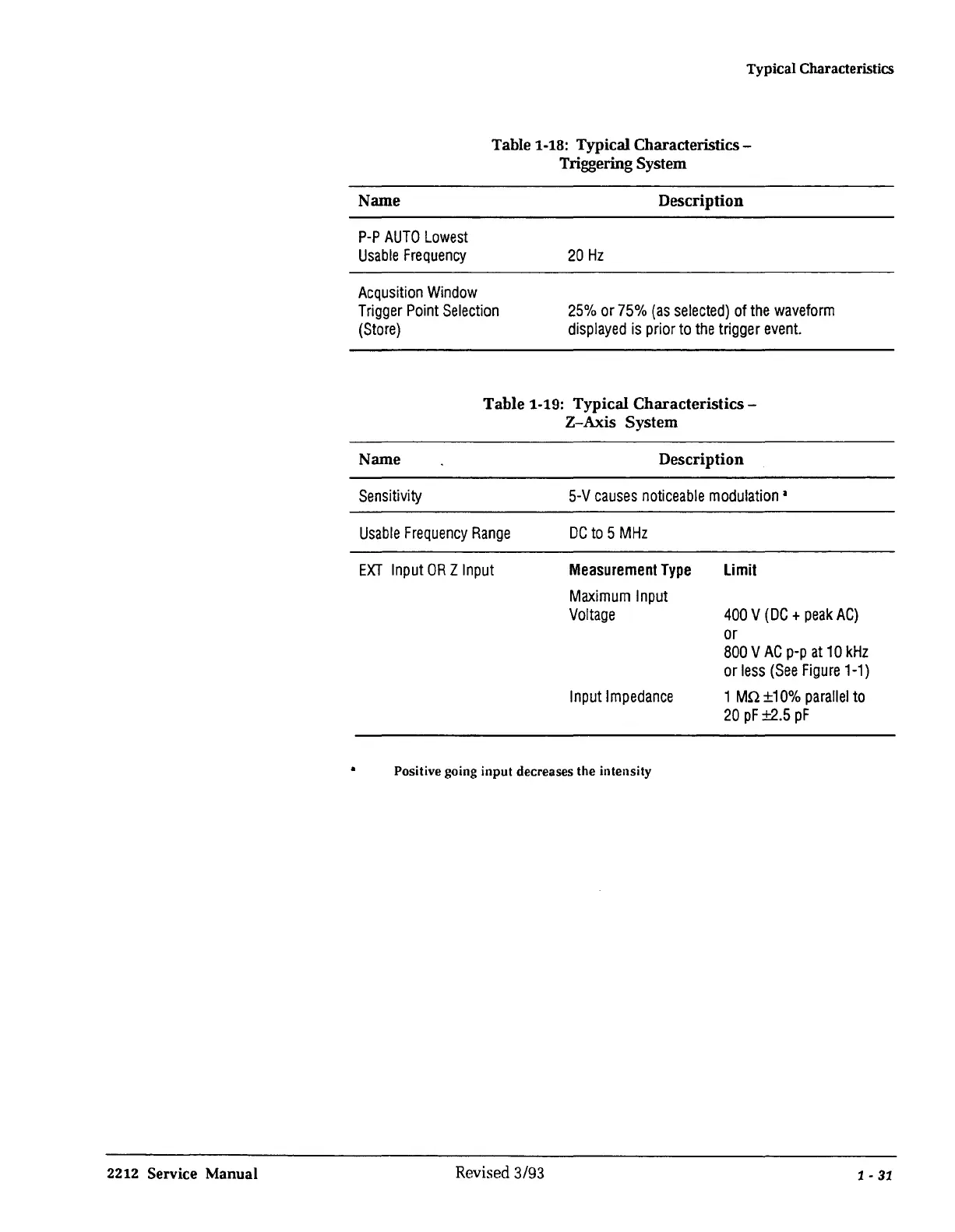

Typical Characteristics
Table 1-18: Typical Characteristics-
Triggering System
Name
P-P AUTO Lowest
Usable Frequency
Acqusition Window
Trigger Point Selection
(Store)
Description
20 Hz
25% or 75% (as selected) of the waveform
displayed is prior to the trigger event.
Table 1-19: Typical Characteristics-
Z-Axis System
Name
Sensitivity
Usable Frequency Range
EXT Input OR Z Input
Description
5-V causes noticeable modulation
1
DC to 5 MHz
Measurement Type
Maximum Input
Voltage
Input Impedance
Limit
400 V (DC+ peak AC)
or
800 V AC p-p at 10 kHz
or less (See Figure 1-1)
1 Mn ±10% parallel to
20 pF ±2.5 pF
Positive going input decreases the intensity
Revised 3/93
1 - 31
