Tektronix 2212 Service Manual

1 - 30

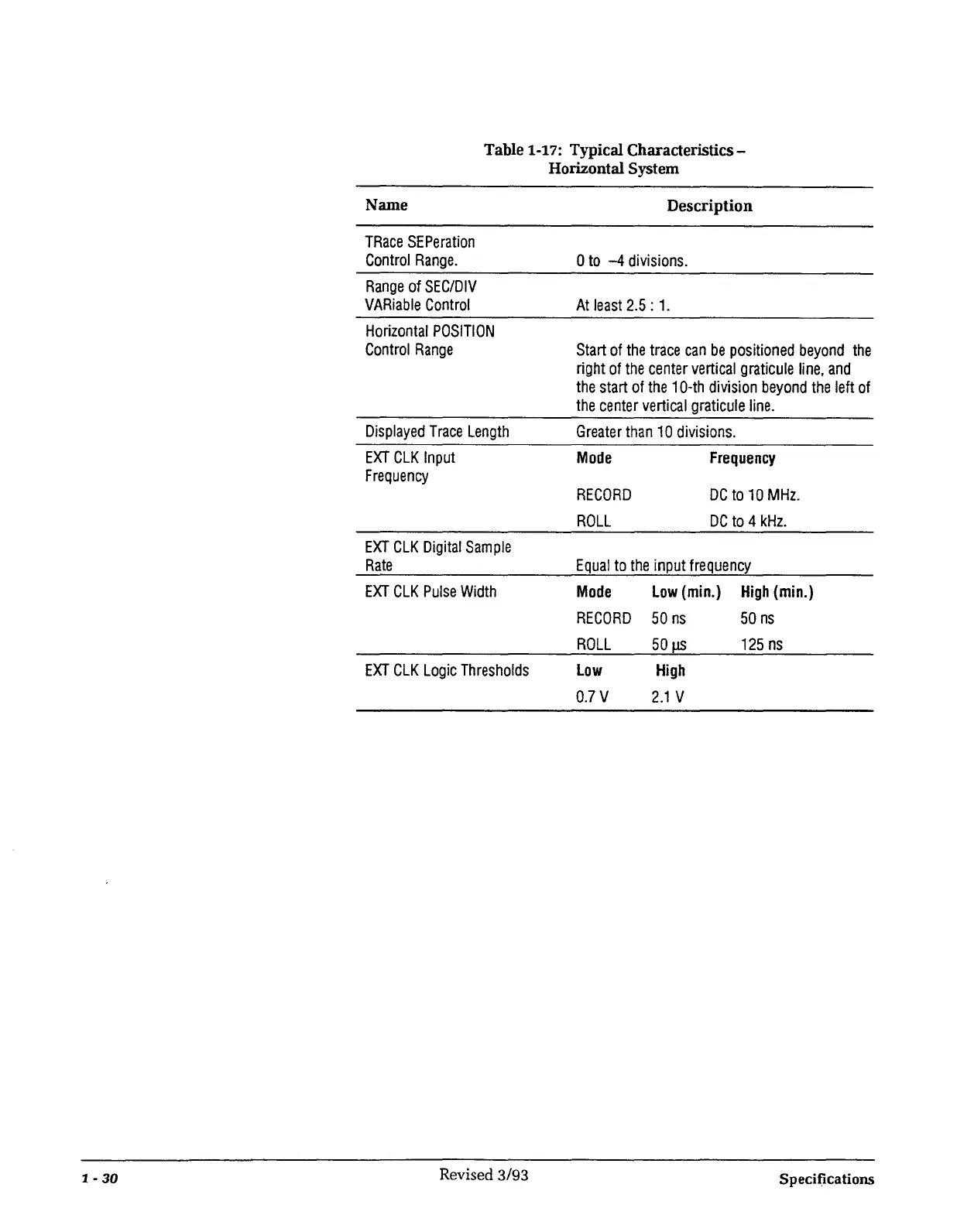

Table 1-17: Typical Characteristics-
Horizontal System
Name
TRace SEPeration
Control Range.
Range of SEC/DIV
VARiable Control
Horizontal POSITION
Control Range
Displayed Trace Length
EXT CLK Input
Frequency
EXT CLK Digital Sample
Rate
EXT CLK Pulse Width
EXT CLK Logic Thresholds
Revised 3/93
Description
O to -4 divisions.
At least 2.5 : 1.
Start of the trace can be positioned beyond the
right of the center vertical graticule line, and
the start of the 10-th division beyond the left of
the center vertical graticule line.
Greater than 1 O divisions.
Mode
RECORD
ROLL
Frequency
DC to 10 MHz.
DC to 4 kHz.
Equal to the input frequency
Mode Low (min.) High (min.)
RECORD 50 ns
ROLL 50 µs
Low
0.7 V
High
2.1 V
50 ns
125 ns
Specifications
