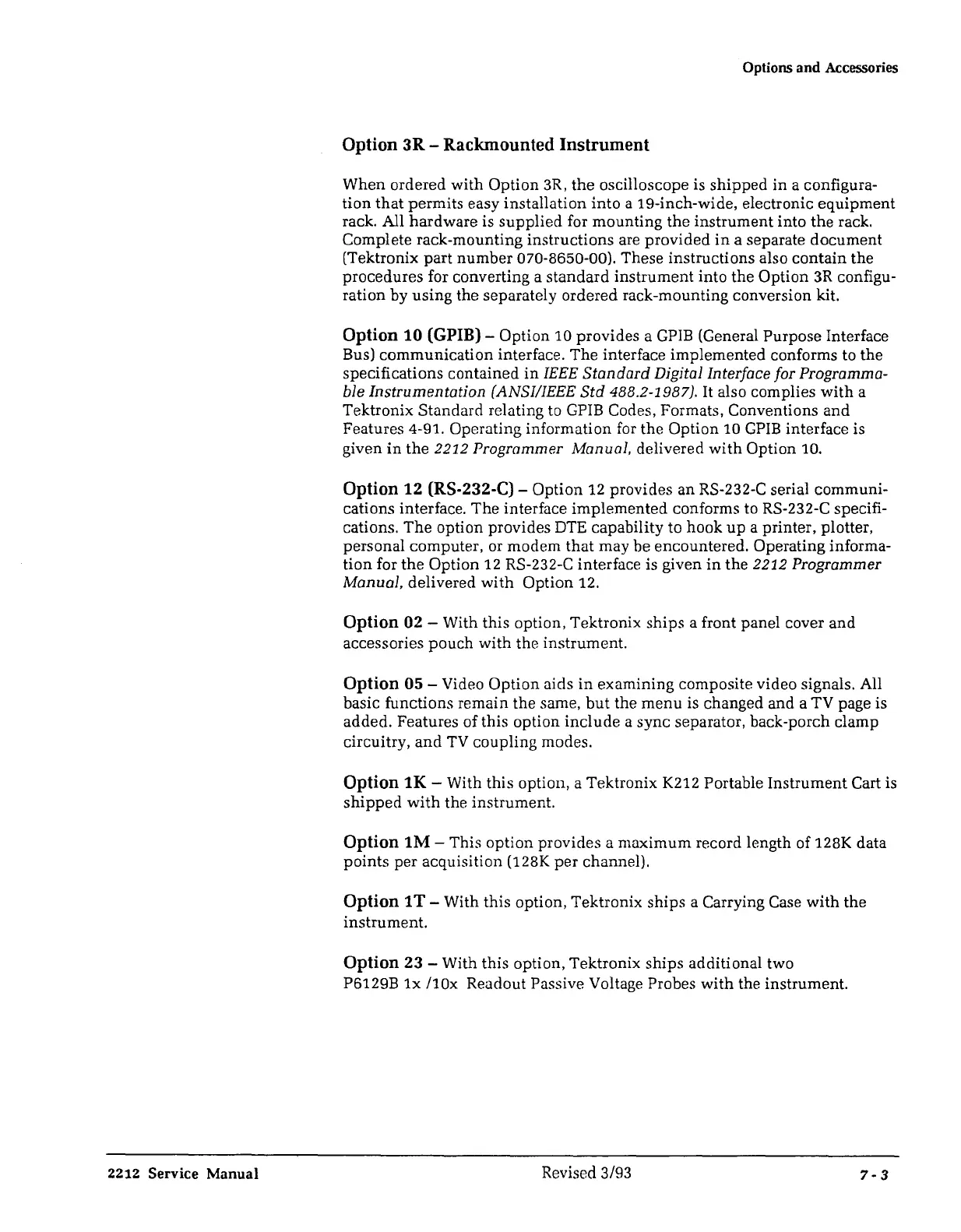

2212 Service Manual
Options and Accessories
Option 3R - Rackmounted Instrument
When ordered with Option 3R,
the
oscilloscope is
shipped
in a configura-
tion
that
permits easy installation
into
a 19-inch-wide, electronic
equipment
rack. All
hardware
is
supplied
for mounting
the
instrument into the rack.
Complete rack-mounting instructions are
provided
in
a separate document
(Tektronix part number 070-8650-00). These instructions also
contain
the
procedures for converting a
standard
instrument
into
the
Option
3R
configu-
ration by using the separately ordered rack-mounting conversion kit.
Option 10 (GPIB) - Option 10 provides a
GPIB
(General Purpose Interface
Bus)
communication
interface.
The
interface implemented conforms to the
specifications contained
in
IEEE
Standard
Digital Interface for Programma-
ble Instrumentation (ANSI/IEEE
Std
488.2-1987). It also complies
with
a
Tektronix Standard relating to
GPIB
Codes, Formats, Conventions and
Features 4-91. Operating information for
the
Option 10
GPIB
interface is
given
in
the
2212 Programmer Manual, delivered
with
Option 10.
Option 12 (RS-232-C) - Option 12 provides
an
RS-232-C serial communi-
cations interface.
The
interface
implemented
conforms to RS-232-C specifi-
cations.
The
option provides
DTE
capability to hook
up
a printer, plotter,
personal computer, or modem that may
be
encountered. Operating informa-
tion
for
the
Option 12 RS-232-C interface is given
in
the
2212 Programmer
Manual, delivered
with
Option 12.
Option 02 - With this option, Tektronix ships a front panel cover and
accessories pouch with the instrument.
Option 05 - Video
Option
aids
in
examining composite video signals. All
basic functions remain the same,
but
the
menu
is changed and a TV page is
added. Features of this option
include
a sync separator, back-porch clamp
circuitry,
and
TV coupling modes.
Option 1K - With this option, a Tektronix K212 Portable Instrument Cart is
shipped
with
the instrument.
Option 1M - This option provides a maximum record length of 128K data
points per acquisition (128K
per
channel).
Option
1T-
With this option, Tektronix ships a Carrying Case
with
the
instrument.
Option 23 - With this option, Tektronix ships additional two
P6129B
lx
/l0x
Readout Passive Voltage Probes
with
the instrument.
Revised 3/93
7-3
