Tektronix 2212 Service Manual

Nominal Traits
1 - 10

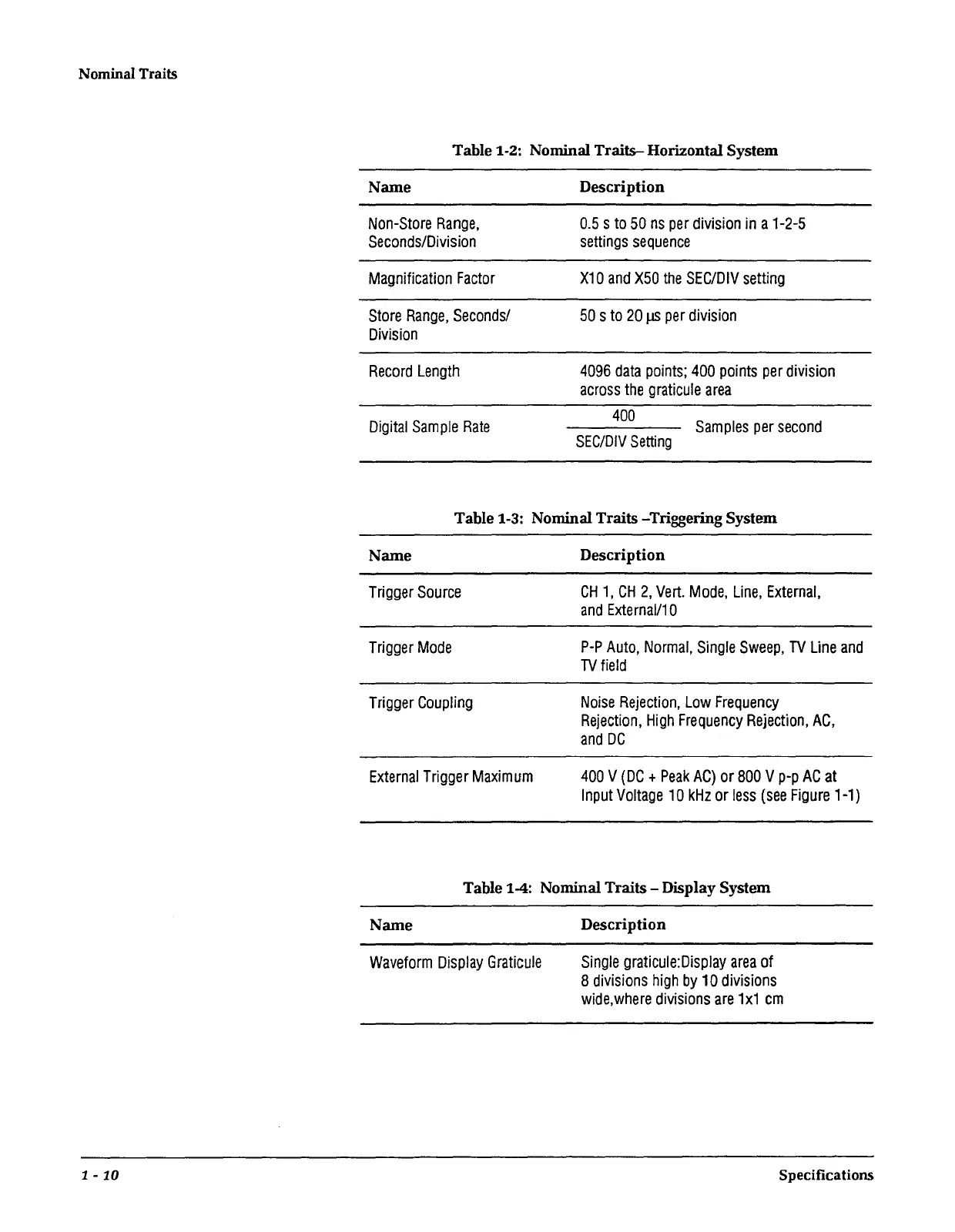

Table 1-2: Nominal Traits-Horizontal System
Name
Non-Store Range,
Seconds/Division
Magnification Factor
Store Range, Seconds/
Division
Record Length
Digital Sample Rate
Description
0.5 s to 50 ns per division in a 1-2-5
settings sequence
X10 and XS0 the SEC/DIV setting
50 s to 20 µs per division
4096 data points; 400 points per division
across the graticule area
400
Samples per second
SEC/DIV Setting
Table 1-3: Nominal Traits-Triggering System
Name
Trigger Source
Trigger Mode
Trigger Coupling
External Trigger Maximum
Description
CH 1, CH 2, Vert. Mode, Line, External,
and External/1 0
P-P Auto, Normal, Single Sweep, TV Line and
TV field
Noise Rejection, Low Frequency
Rejection, High Frequency Rejection, AC,
and DC
400 V ( DC + Peak AC) or 800 V p-p AC at
Input Voltage 1 0 kHz or less (see Figure 1-1)
Table 1-4: Nominal Traits - Display System
Name
Waveform Display Graticule
Description
Single graticule:Display area of
8 divisions high by 1 0 divisions
wide.where divisions are 1x1 cm
Specifications
