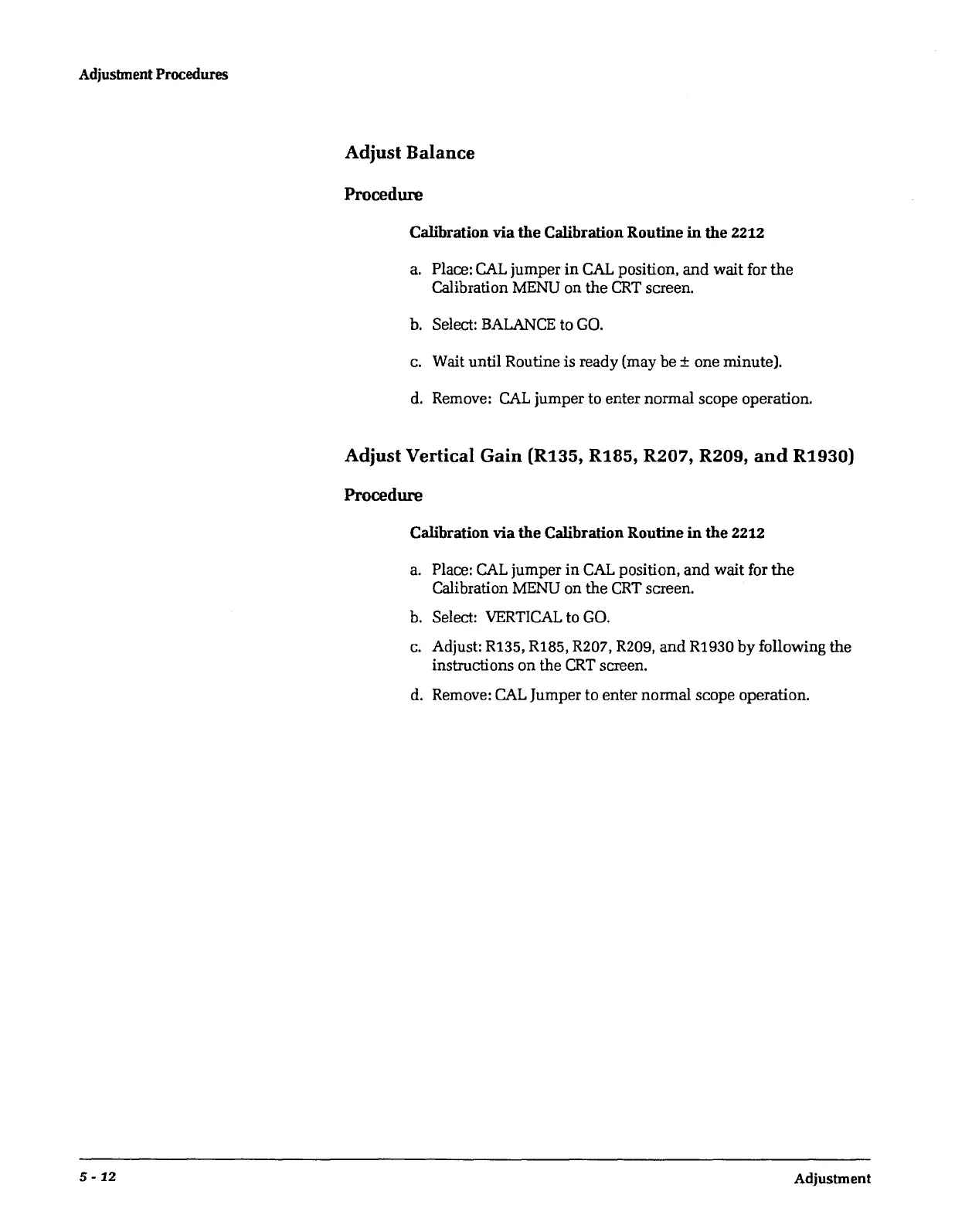

Adjusbnent Procedures
5-
12
Adjust Balance
Procedure
Calibration
via
the Calibration Routine
in
the
2212
a.
Place:
CAL
jumper
in
CAL
position,
and
wait for
the
Calibration MENU on
the
CRT
screen.
b. Select: BALANCE to
GO.
c. Wait until Routine is ready (may
be±
one minute).
d.
Remove:
CAL
jumper to enter normal scope operation.
Adjust Vertical Gain (R135, R185, R207, R209,
and
R1930)
Procedure
Calibration
via
the Calibration Routine
in
the
2212
a.
Place:
CAL
jumper
in
CAL
position,
and
wait for
the
Calibration MENU on the
CRT
screen.
b. Select:
VERTICAL
to
GO.
c.
Adjust: R135, R185, R207, R209,
and
R1930 by following the
instructions
on
the
CRT
screen.
d. Remove:
CAL
Jumper to enter normal scope operation.
Adjustment
