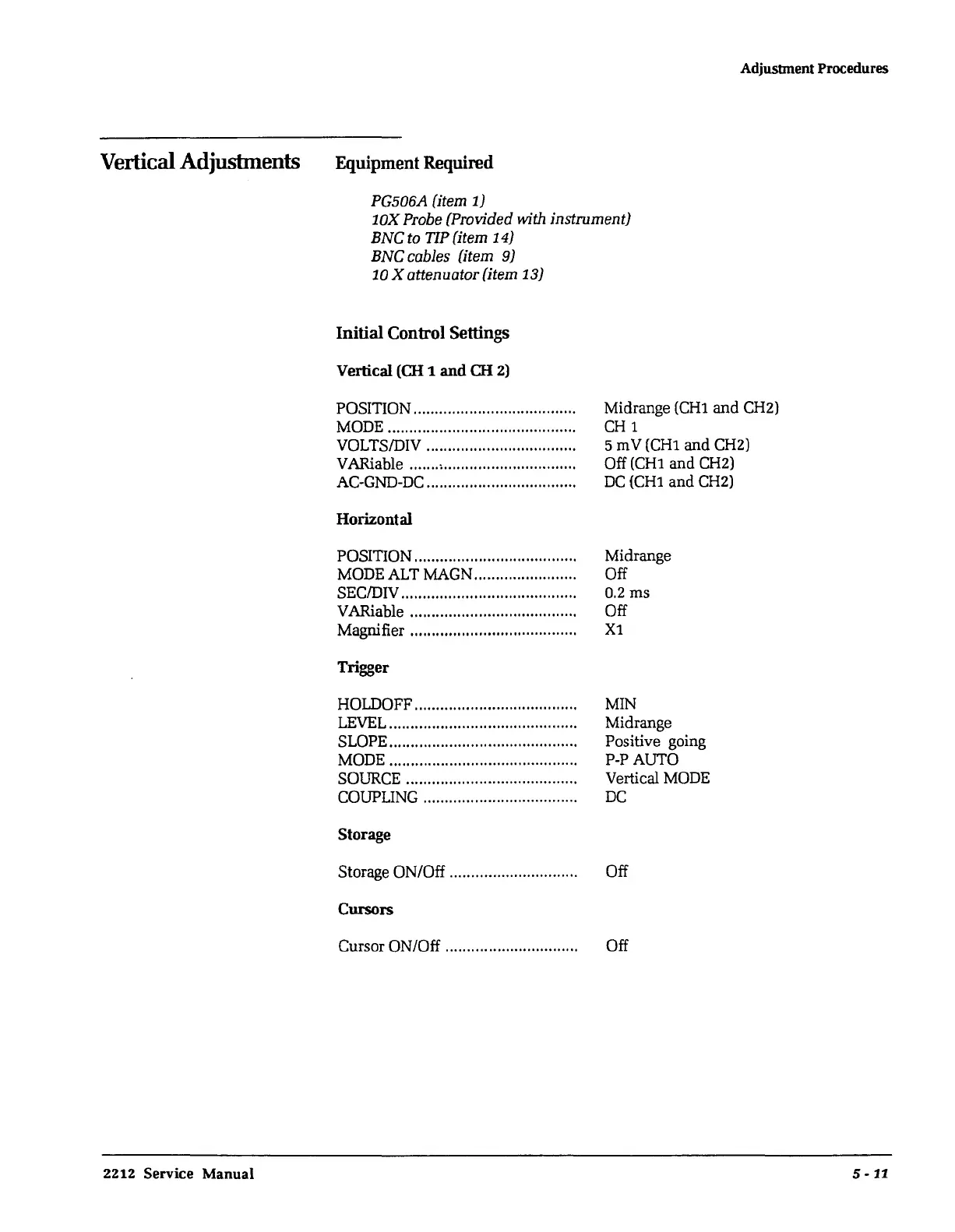

Vertical Adjusbnents
Equipment Required
PG506A (item 1)
10X Probe (Provided with instrument)
BNC to TIP (item 14)
BNC cables (item 9)
10 X attenuator (item 13)
Initial Control Settings
Vertical (CH 1 and CH 2)
Adjustment Procedures
POSITION .................................... ..
MODE .......................................... ..
Midrange (CH1 and CH2)
CH 1
VOLTS/DIV ................................. ..
VARiable ....... , ............................. ..
AC-GND-DC .................................. .
Horizontal
5 m V (CH1 and CH2)
Off (CH1 and CH2)
DC (CH1 and CH2)
POSITION...................................... Midrange
MODE ALT MAGN ........ ................ Off
SEC/DIV......................................... 0.2 ms
V ARiable ... .. .. ............ ..... .. .. ... .. .. .. .. Off
Magnifier ....................................... Xl
Trigger
HOLDOFF .................................... ..
LEVEL .......................................... ..
SLOPE ........................................... .
MODE .......................................... ..
SOURCE ...................................... ..
COUPLING .................................. ..
Storage
MIN
Midrange
Positive going
P-PAUTO
Vertical MODE
DC
Storage ON/Off ........ ............... ....... Off
Cursors
Cursor ON/Off............................... Off
2212 Service Manual 5 - 11
