Supplementary
Information
2212
Service Manual

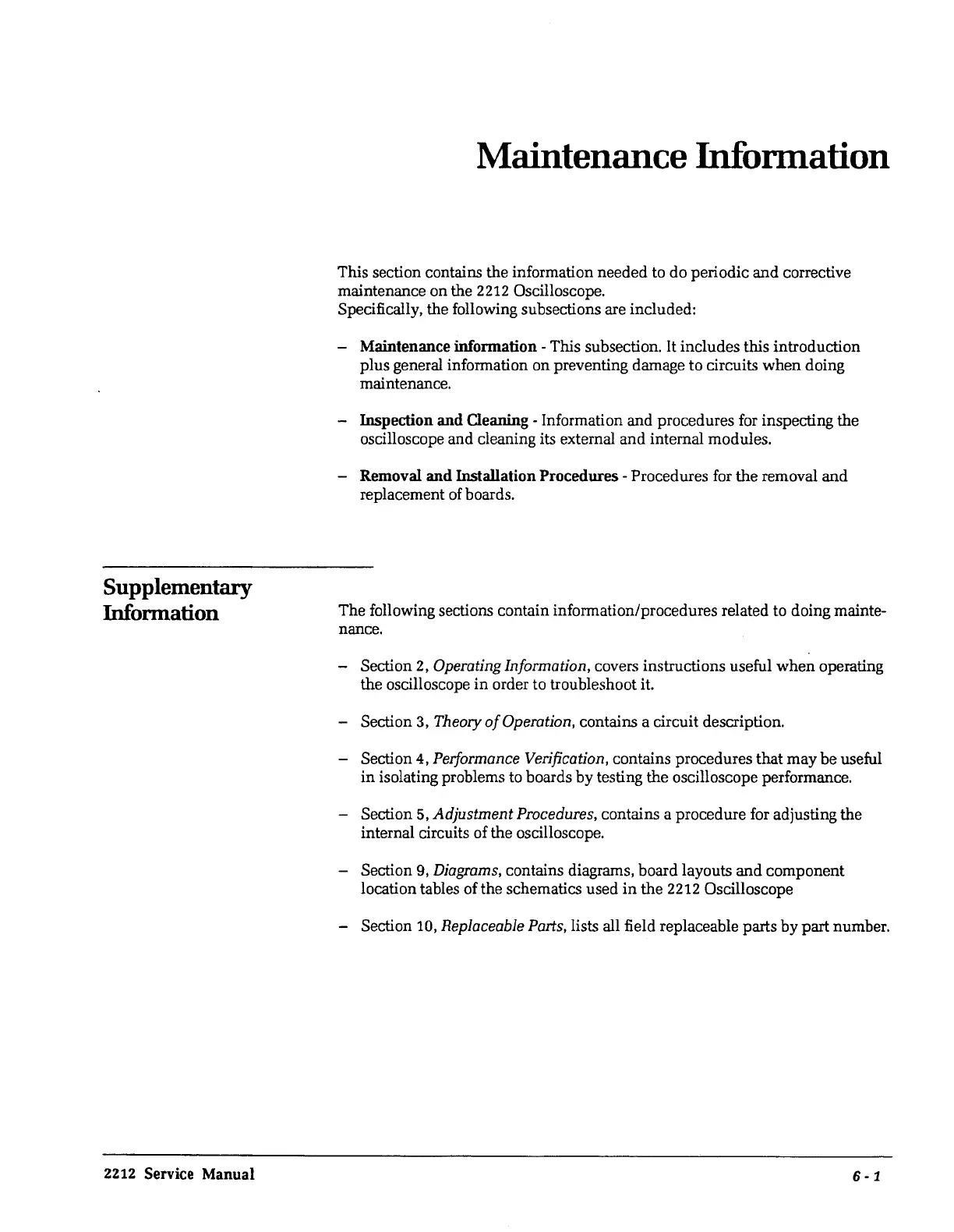

Maintenance Information
This section contains the information needed to do periodic
and
corrective
maintenance on the 2212 Oscilloscope.
Specifically, the following subsections are included:
Maintenance information
-This
subsection.
It
includes this introduction
plus general information on preventing damage to circuits
when
doing
maintenance.
- Inspection and Cleaning - Information and procedures for inspecting the
oscilloscope and cleaning its external and internal modules.
- Removal and Installation Procedures - Procedures for the removal and
replacement
of
boards.
The following sections contain information/procedures related to doing mainte-
nance.
- Section 2, Operating Information, covers instructions useful
when
operating
the oscilloscope
in
order to troubleshoot it.
- Section 3, Theory
of
Operation, contains a circuit description.
- Section
4,
Performance Verification, contains procedures that may
be
useful
in
isolating problems to boards
by
testing the oscilloscope performance.
- Section 5,
Adjustment
Procedures, contains a procedure for adjusting the
internal circuits of the oscilloscope.
Section 9, Diagrams, contains diagrams, board layouts
and
component
location tables of the schematics used
in
the 2212 Oscilloscope
- Section 10, Replaceable Parts, lists all field replaceable parts by part number.
6-1
