2212 Service Manual
Adjusbnent Procedures
Adjusbnent Procedures

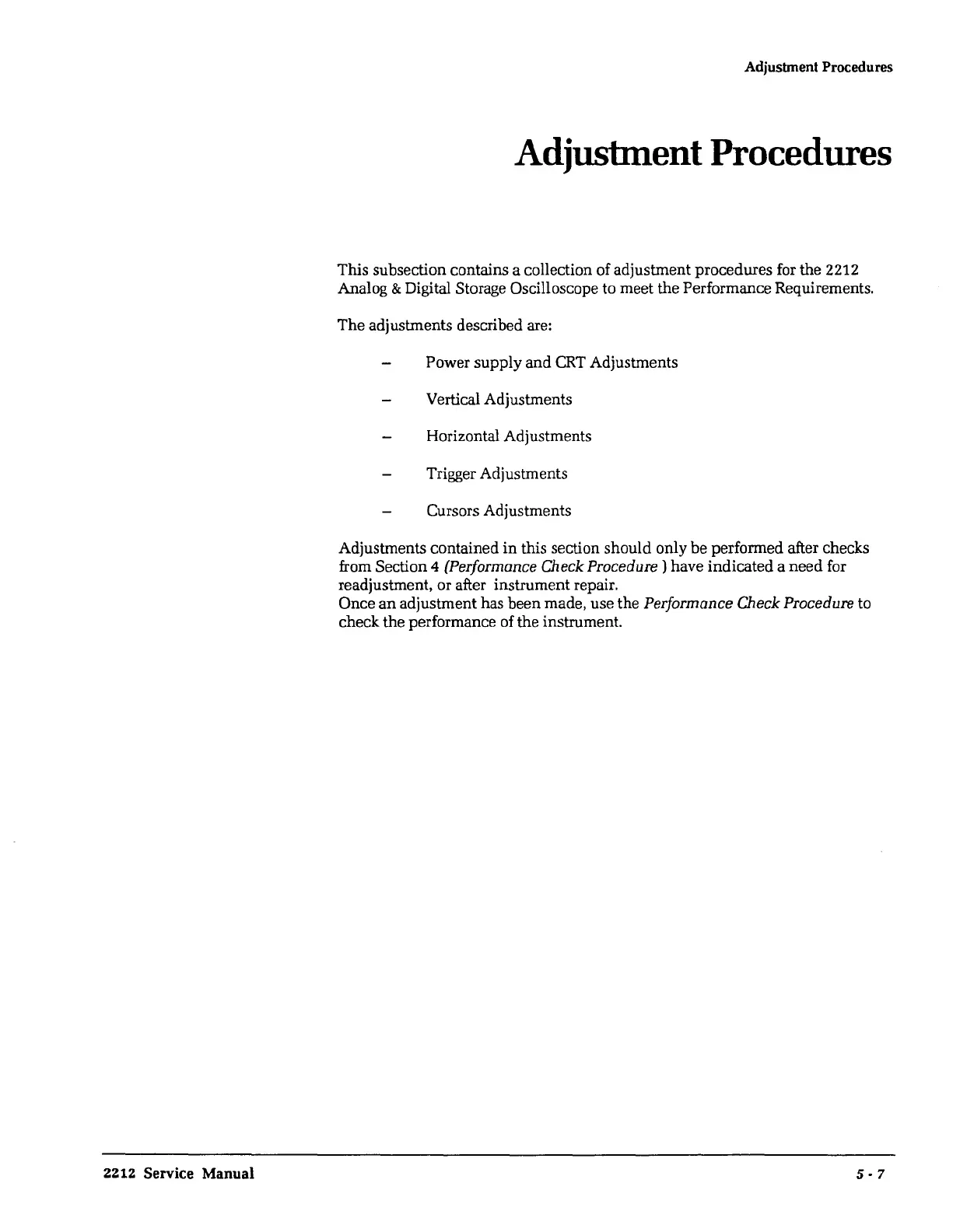

This subsection contains a collection of adjustment procedures
for
the 2212
Analog & Digital Storage Oscilloscope to meet the Performance Requirements.
The
adjustments described are:
Power supply and
CRT
Adjustments
Vertical Adjustments
Horizontal Adjustments
Trigger Adjustments
Cursors Adjustments
Adjustments contained
in
this section should only be performed after checks
from Section 4 {Performance Check Procedure) have indicated a need for
readjustment, or after instrument repair.
Once
an
adjustment has been made, use the Performance Check Procedure to
check the performance of the instrument.
