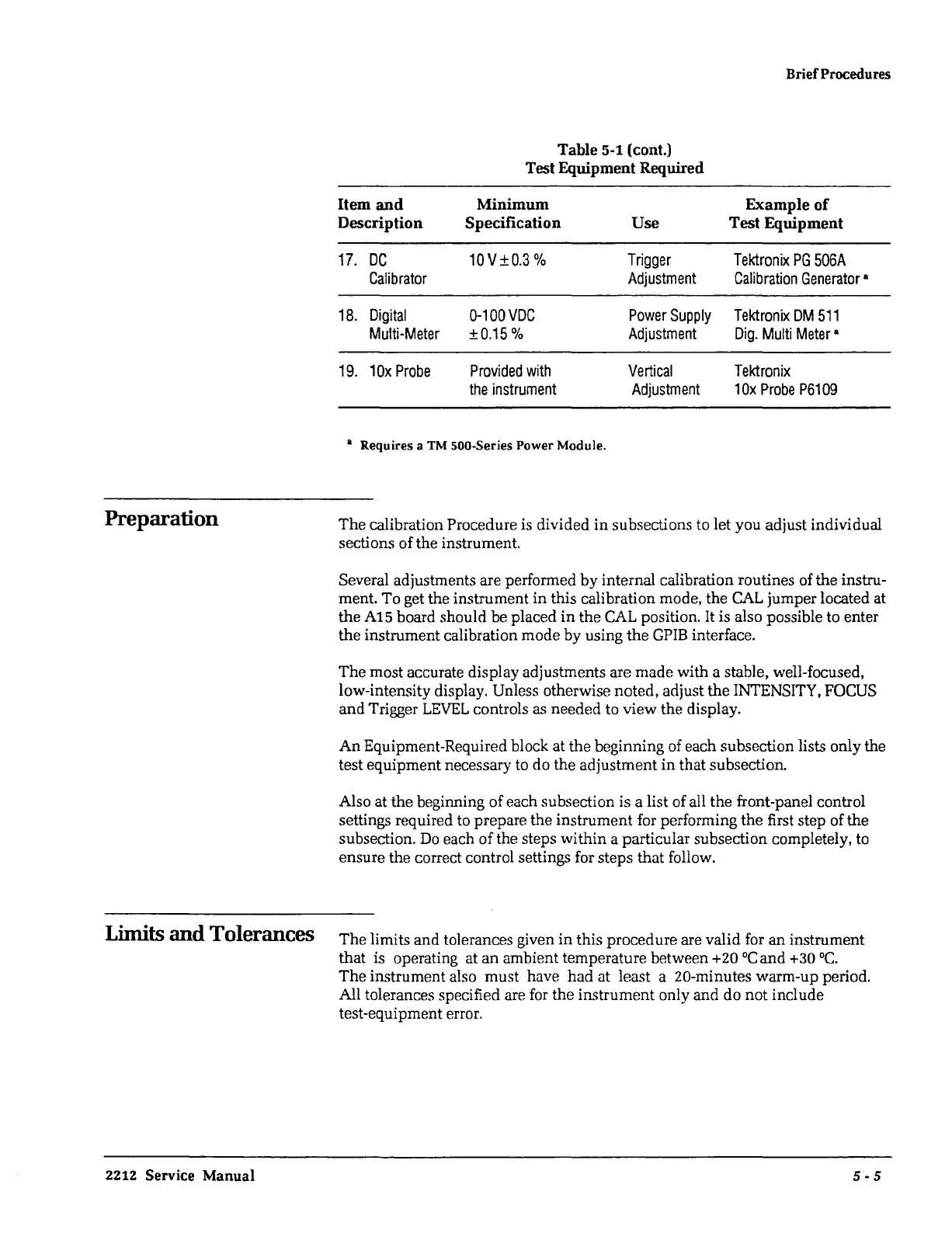

Preparation
Item and
Description
17.
DC
Calibrator
18.
Digital
Multi-Meter
19.
10x
Probe
Table 5-1 (cont.)
Test Equipment Required
Minimum
Specification
Use
10V±0.3 %
Trigger
Adjustment
0-100VDC
Power
Supply
±0.15 %
Adjustment
Provided
with
Vertical
the
instrument
Adjustment
a Requires a
TM
500-Series Power Module.
Brief Procedures
Example
of
Test Equipment
Tektronix
PG
506A
Calibration
Generator•
Tektronix
DM
511
Dig.
Multi
Meter
•
Tektronix
1
Ox
Probe
P6109
The calibration Procedure is divided
in
subsections to let you adjust individual
sections of the instrument.
Several adjustments are performed
by
internal calibration routines of the instru-
ment. To get the instrument
in
this calibration mode, the
CAL
jumper located at
the A15 board should be placed
in
the
CAL
position. It is also possible to enter
the instrument calibration mode by using the
GPIB
interface.
The most accurate display adjustments are made with a stable, well-focused,
low-intensity display. Unless otherwise noted, adjust the INTENSITY, FOCUS
and Trigger
LEVEL
controls as needed to view the display.
An
Equipment-Required block at the beginning of each subsection lists only the
test equipment necessary to do the adjustment
in
that subsection.
Also at the beginning of each subsection is a list of all the front-panel control
settings required to prepare the instrument for performing the first step of the
subsection.
Do
each of the steps within a particular subsection completely, to
ensure the correct control settings for steps that follow.
Limits and Tolerances The limits and tolerances given
in
this procedure are valid for an instrument
that is operating at an ambient temperature between +20 °Cand +30
°C.
The instrument also must have
had
at least a 20-minutes warm-up period.
All tolerances specified are
for
the instrument only and do not include
test-equipment error.
2212 Service Manual 5 - 5
