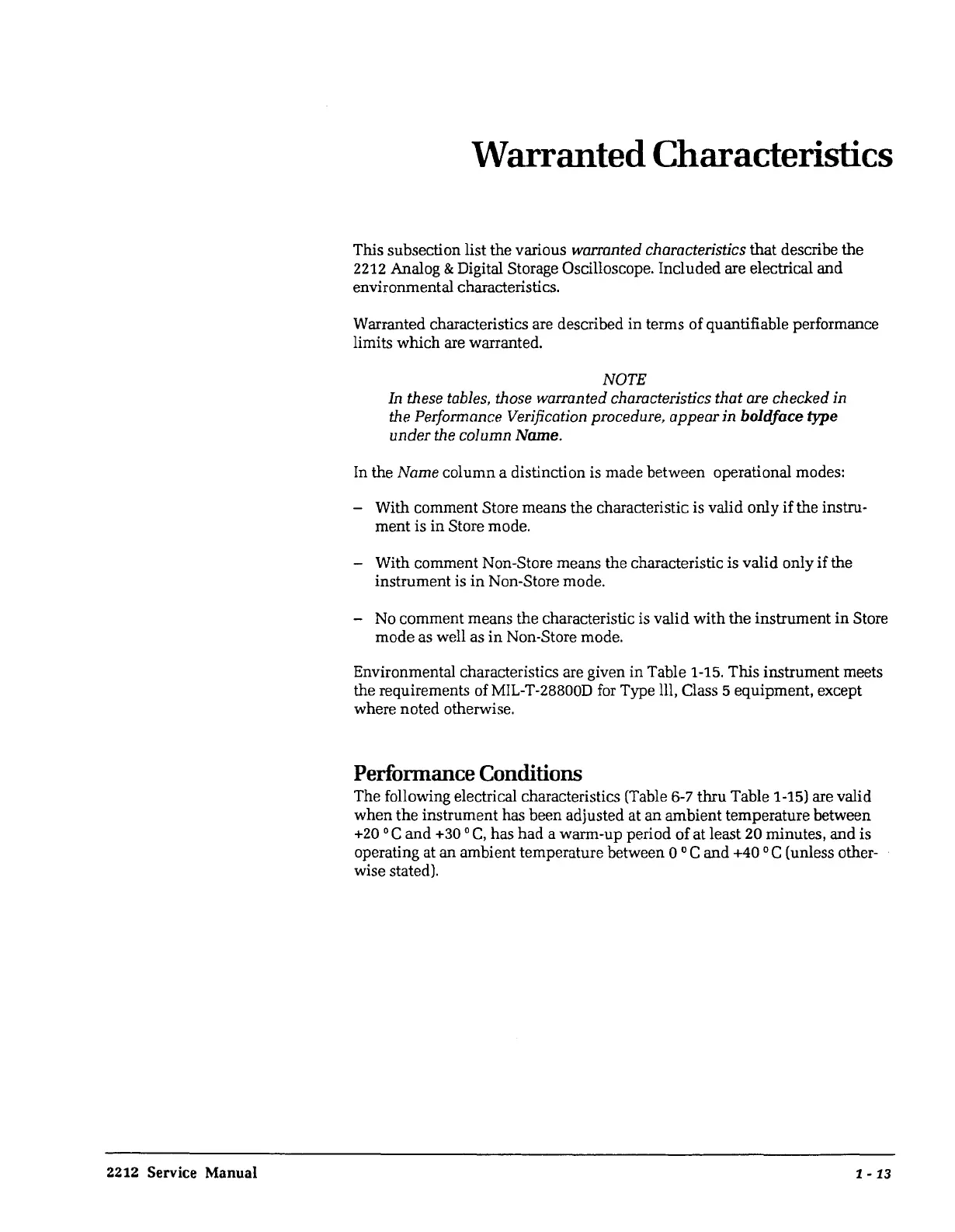

Warranted Characteristics
This subsection list the various warranted characteristics that describe the
2212 Analog & Digital Storage Oscilloscope. Included are electrical and
environmental characteristics.
Warranted characteristics are described
in
terms of quantifiable performance
limits which are warranted.
NOTE
In
these tables, those warranted characteristics that are checked in
the Performance Verification procedure, appear
in
boldface type
under the column Name.
In the Name column a distinction is made between operational modes:
- With comment Store means the characteristic is valid only
if
the instru-
ment is
in
Store mode.
- With comment Non-Store means the characteristic is valid only
if
the
instrument is
in
Non-Store mode.
- No comment means the characteristic is valid with the instrument
in
Store
mode as well as
in
Non-Store mode.
Environmental characteristics are given in Table 1-15. This instrument meets
the requirements ofMIL-T-28800D
for
Type lll, Class 5 equipment, except
where noted otherwise.
Performance Conditions
The following electrical characteristics (Table 6-7 thru Table 1-15) are valid
when the instrument has been adjusted at an ambient temperature between
+20
° C
and
+30 °
C,
has had a warm-up period
of
at least 20 minutes, and is
operating at an ambient temperature between O ° C and +40 ° C (unless other-
wise stated).
1 - 13
