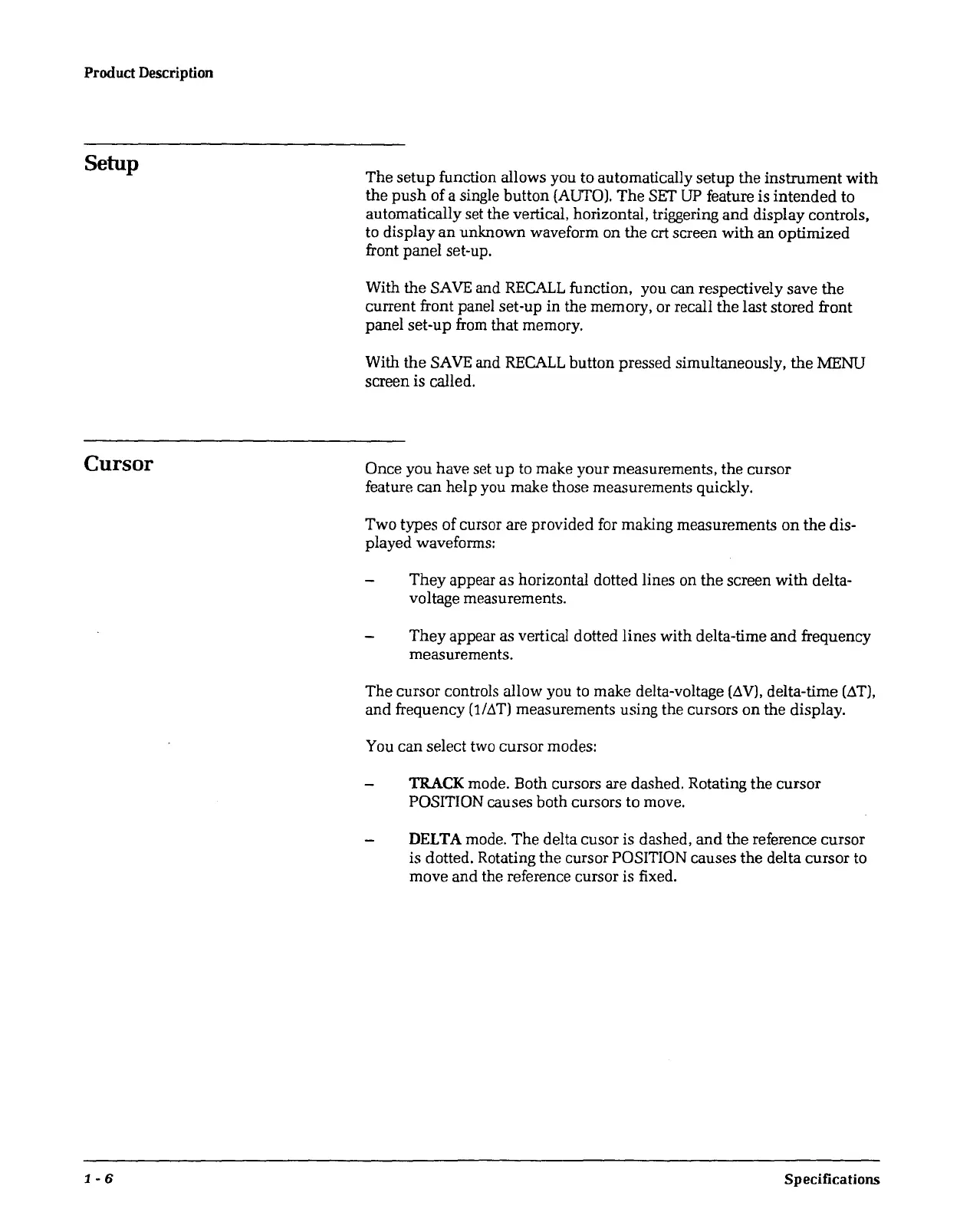

Product Description
Setup
Cursor
1-6
The setup function allows you to automatically setup the instrument with
the
push
of a single button
(AUTO).
The
SET
UP
feature is intended to
automatically set the vertical, horizontal, triggering
and
display controls,
to
display an unknown waveform on the crt screen with an optimized
front panel set-up.
With the
SA
VE
and
RECALL
function, you can respectively save the
current front panel set-up in the memory, or recall the last stored front
panel set-up
from
that memory.
With the SA
VE
and
RECALL
button pressed simultaneously, the MENU
screen is called.
Once you have set
up
to make your measurements, the cursor
feature can help you make those measurements quickly.
Two types of cursor are provided for making measurements
on
the dis-
played waveforms:
They appear as horizontal dotted lines on the screen with delta-
voltage measurements.
They appear as vertical dotted lines with delta-time
and
frequency
measurements.
The cursor controls allow you
to
make delta-voltage(~
VJ,
delta-time (~T),
and frequency (1/~T) measurements using the cursors on the display.
You
can select two cursor modes:
TRACK mode. Both cursors are dashed. Rotating the cursor
POSITION causes both cursors to move.
DELTA
mode. The delta cusor is dashed,
and
the reference cursor
is dotted. Rotating the cursor POSITION causes the delta cursor
to
move and the reference cursor is fixed.
