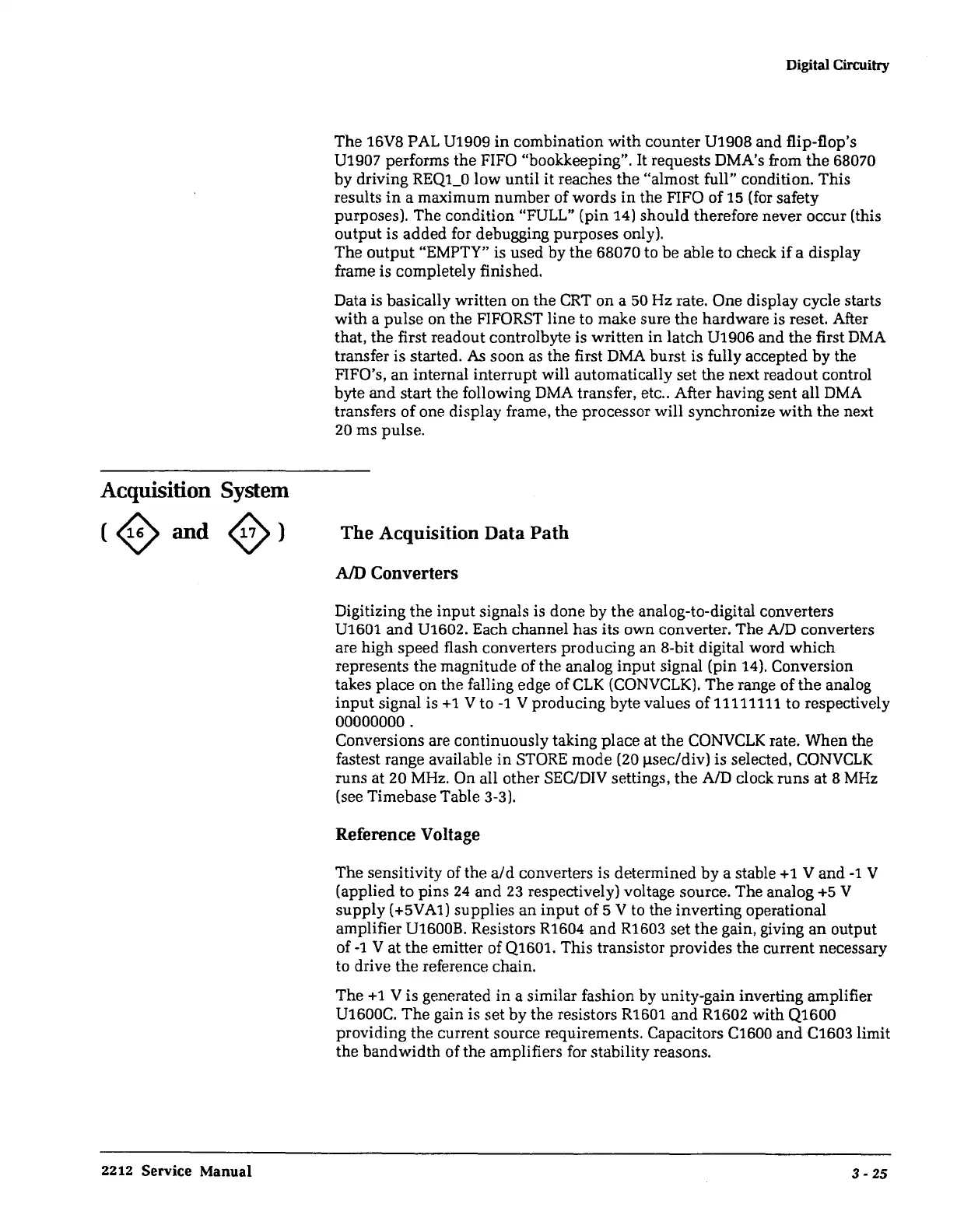

Acquisition System
c0
and
0)
2212
Service Manual
Digital Circuitry
The 16V8 PAL U1909
in
combination
with
counter U1908 and flip-flop's
U1907 performs the FIFO "bookkeeping". It requests DMA's from
the
68070
by driving REQ1_0 low until
it
reaches the "almost full" condition. This
results
in
a maximum number of words
in
the FIFO of
15
(for safety
purposes). The condition "FULL" (pin 14) should therefore never occur (this
output is added for debugging purposes only).
The
output
"EMPTY" is used by the 68070 to be able to check
if
a display
frame is completely finished.
Data is basically written on the
CRT
on a 50 Hz rate. One display cycle starts
with a pulse on the FIFORST line to make sure the hardware is reset. After
that, the first readout controlbyte is written
in
latch U1906 and the first
DMA
transfer is started. As soon as the first DMA burst is fully accepted by the
FIFO's,
an
internal interrupt will automatically set the next readout control
byte
and
start the following
DMA
transfer, etc
..
After having sent all
DMA
transfers
of
one display frame, the processor will synchronize
with
the next
20
ms pulse.
The Acquisition Data Path
AID Converters
Digitizing the
input
signals is done by
the
analog-to-digital converters
U1601
and
U1602. Each channel has its own converter. The AID converters
are high speed flash converters producing an 8-bit digital word
which
represents the magnitude of the analog
input
signal (pin 14). Conversion
takes place on the falling edge of
CLK
(CONVCLK).
The
range of
the
analog
input
signal is
+1
V to
-1
V producing byte values
of
11111111 to respectively
00000000.
Conversions are continuously taking place at the
CONVCLK
rate. When the
fastest range available
in
STORE mode (20 µsec/div) is selected,
CONVCLK
runs at 20 MHz. On all other SEC/DIV settings, the A/D clock runs at 8
MHz
(see Timebase Table 3-3).
Reference Voltage
The sensitivity of the
a/d
converters is determined
by
a stable
+1
V
and-1
V
(applied to pins
24
and
23
respectively) voltage source. The analog
+5
V
supply
(+5VA1) supplies an
input
of 5 V to the inverting operational
amplifier U1600B. Resistors R1604
and
R1603 set
the
gain, giving
an
output
of
-1
Vat
the
emitter of Q1601. This transistor provides the current necessary
to drive
the
reference chain.
The
+1
Vis
generated
in
a similar fashion by unity-gain inverting amplifier
U1600C.
The
gain is set by the resistors R1601
and
R1602 with Q1600
providing the current source requirements. Capacitors C1600 and C1603 limit
the bandwidth of the amplifiers for stability reasons.
3-
25
