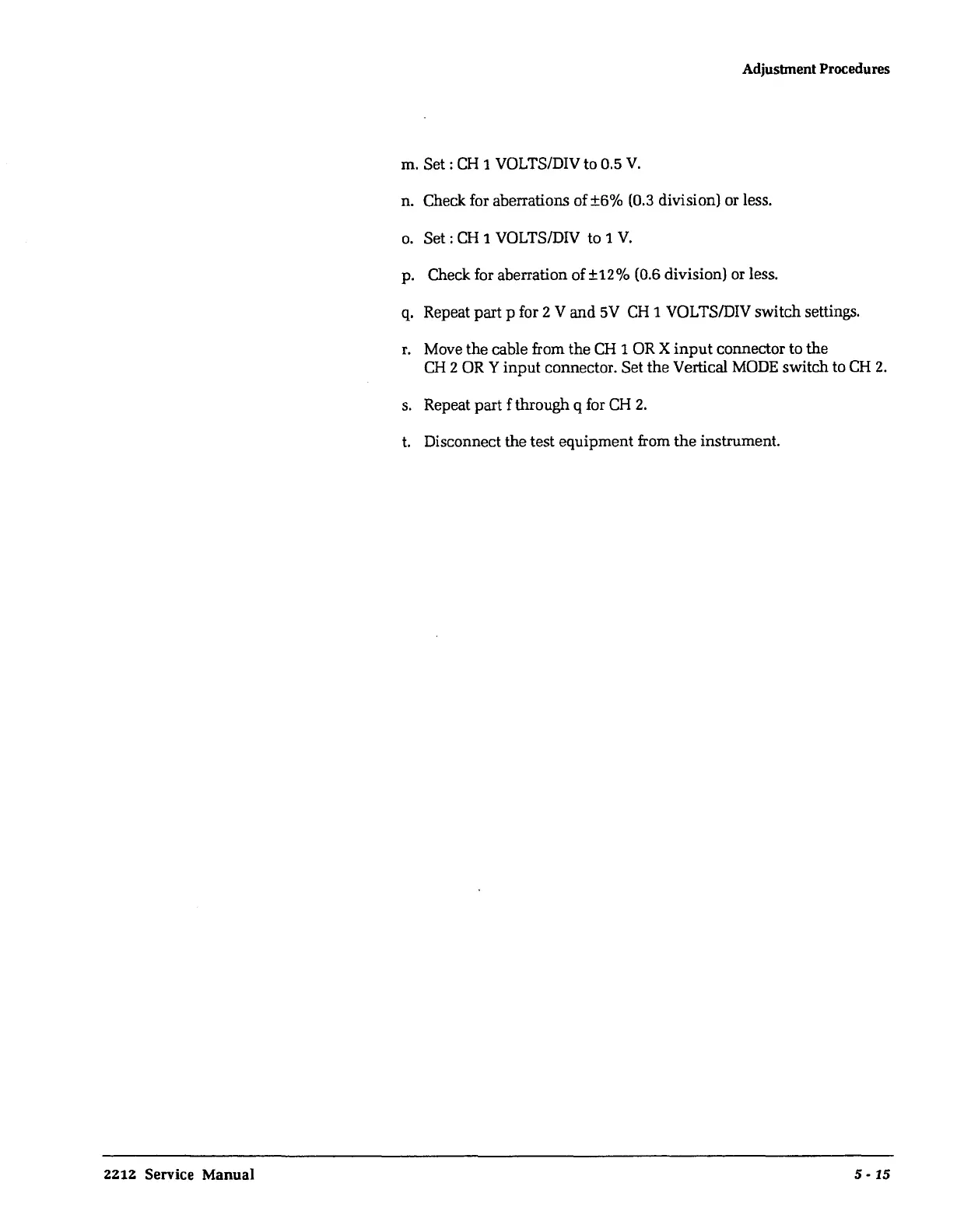

Adjusbnent Procedures
m. Set :
CH
1 VOLTS/DIV to 0.5
V.
n. Check for aberrations of ±6% (0.3 division) or less.
o.
Set:
CH
1 VOLTS/DIV to 1
V.
p. Check for aberration of ±12% (0.6 division) or less.
q.
Repeat part p for 2 V and 5V
CH
1 VOLTS/DIV switch settings.
r.
Move the cable from the
CH
1
OR
X
input
connector to the
CH
2
ORY
input
connector. Set the Vertical
MODE
switch to
CH
2.
s.
Repeat part f through q for
CH
2.
t.
Disconnect the test equipment from the instrument.
2212
Service Manual
5-
15
