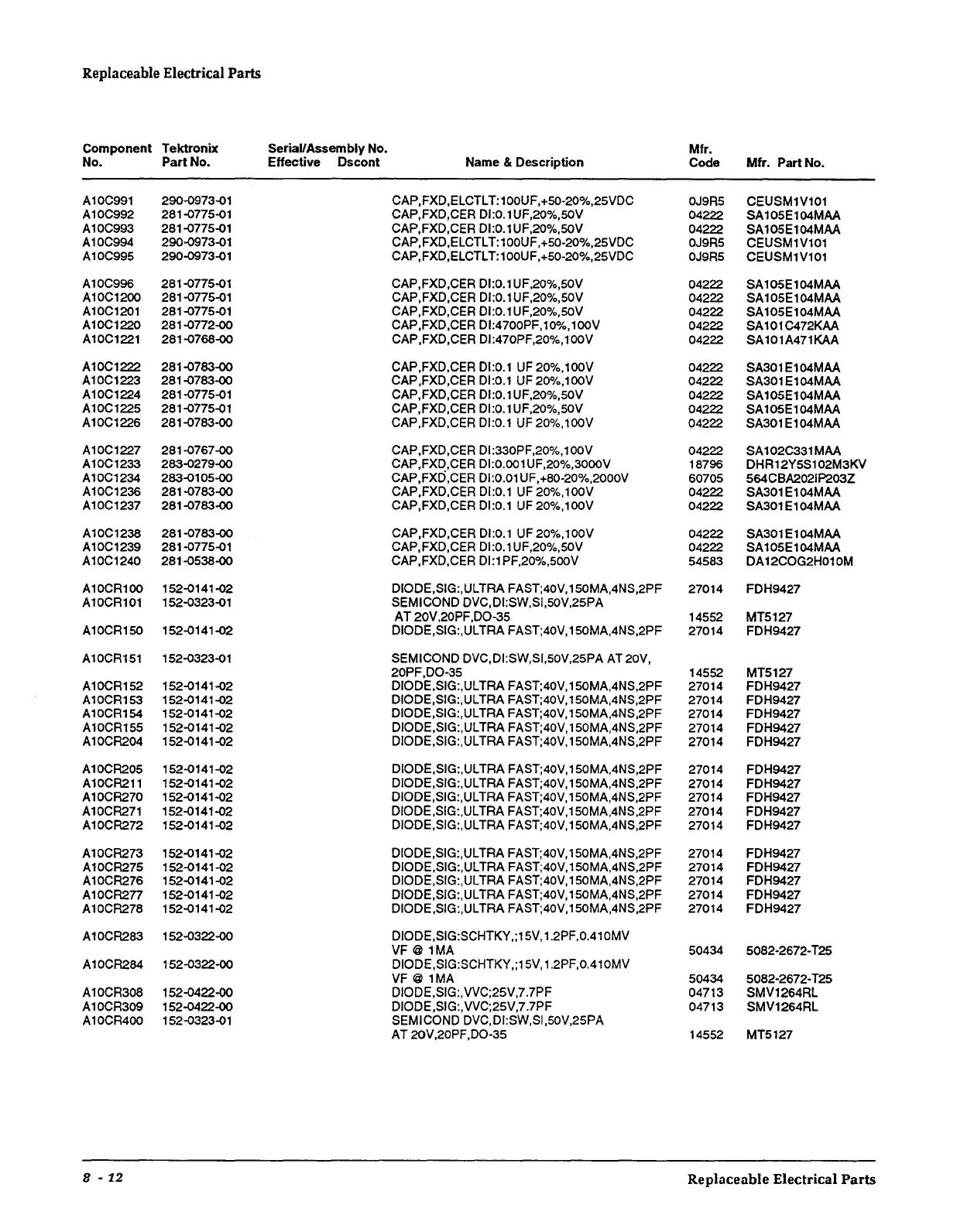

Tektronix 2212 Service Manual

Replaceable Electrical Parts
Component Tektronix
Serial/Assembly No.
Mfr.
No.
Part No. Effective Dscont
Name & Description
Code Mfr. Part No.
A10C991 290-0973-01
CAP,FXO,ELCTL T: 100UF,+50-20%,25VOC
OJ9R5
CEUSM1V101
A10C992
281-0775-01
CAP,FXO,CER 0I:0.1UF,20%,50V
04222 SA105E104MAA
A10C993
281-0775-01
CAP,FXO,CER Ol:0.1UF,20%,50V
04222 SA105E104MAA
A10C994 290-0973-01
CAP,FXO,ELCTL T:100UF,+50-20%,25VDC
OJ9R5
CEUSM1V101
A10C995
290-0973-01
CAP,FXO,ELCTLT:100UF,+50-20%,25VDC
OJ9R5
CEUSM1V101
A10C996 281-0775-01
CAP,FXO,CER 0I:0.1 UF,20%,50V
04222 SA105E104MAA
A10C1200 281-0775-01
CAP,FXO,CER 0I:0.1UF,20%,50V
04222 SA105E104MAA
A10C1201 281-0775-01
CAP,FXO,CER Ol:0.1UF,20%,SOV
04222 SA105E104MAA
A10C1220
281-0772-00 CAP,FXO,CER Ol:4700PF,10%,100V
04222 SA101C472KAA
A10C1221 281-0768-00
CAP,FXO,CER Ol:470PF,20%,100V
04222 SA101A471KAA
A10C1222 281-0783-00
CAP,FXO,CER 01:0.1 UF 20%, 100V
04222
SA301E104MAA
A10C1223
281-0783-00 CAP,FXO,CER DI:0.1 UF 20%,100V
04222 SA301E104MAA
A10C1224 281-0775-01
CAP,FXO,CER 0I:0.1UF,20%,50V
04222 SA105E104MAA
A10C1225 281-0775-01
CAP,FXO,CER 0I:0.1 UF,20%,50V
04222
SA105E104MAA
A10C1226 281-0783-00
CAP,FXO,CER Dl:0.1 UF 20%, 100V
04222 SA301E104MAA
A10C1227 281-0767-00
CAP,FXO,CER Ol:330PF,20%,100V
04222 SA 102C331 MAA
A10C1233 283-0279-00
CAP,FXD,CER Dl:0.001UF,20%,3000V
18796 OHR12Y5S102M3KV
A10C1234 283-0105-00
CAP,FXD,CER 01:0.01 UF,+80-20%,2000V 60705
564CBA202IP203Z
A10C1236 281-0783-00
CAP,FXD,CER Dl:0.1 UF20%,100V
04222 SA301E104MAA
A10C1237 281-0783-00 CAP,FXD,CER 0I:0.1 UF 20%,100V
04222 SA301E104MAA
A10C1238 281-0783-00
CAP,FXO,CER 0I:0.1 UF 20%, 100V 04222
SA301E104MAA
A10C1239 281-0775-01 CAP,FXO,CER 0I:0.1 UF,20%,50V
04222
SA105E104MAA
A10C1240 281-0538-00 CAP,FXO,CER 01:1 PF,20%,500V
54583 OA12COG2H010M
A10CR100 152-0141-02 DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR101 152-0323-01 SEMICONO OVC,Ol:SW,Sl,50V,25PA
AT 20V,20PF,00-35
14552 MT5127
A10CR150 152-0141-02 DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FDH9427
A10CR151 152-0323-01
SEMICONO OVC,0I:SW,Sl,50V,25PA AT 20V,
20PF,D0-35
14552 MT5127
A10CR152 152-0141-02 DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF 27014
FOH9427
A10CR153 152-0141-02 DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR154
152-0141-02
OIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014
FOH9427
A10CR155 152-0141-02
DIODE,SIG:,ULTRA FAST;40V, 150MA,4NS,2PF
27014
FDH9427
A10CR204 152-0141-02 DIOOE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FDH9427
A10CR205
152-0141-02
OIOOE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014
FOH9427
A10CR211 152-0141-02 OIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR270 152-0141-02 OIODE,SIG:,ULTRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR271 152-0141-02
OIODE,SIG:,ULTRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR272 152-0141-02
DIODE,SIG:,ULTRA FAST;40V, 150MA,4NS,2PF
27014 FOH9427
A10CR273 152-0141-02
DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FDH9427
A10CR275 152-0141-02 OIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF 27014 FDH9427
A10CR276 152-0141-02
OIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF
27014 FDH9427
A10CR277 152-0141-02
DIODE,SIG:,UL TRA FAST;40V, 150MA,4NS,2PF 27014
FOH9427
A10CR278 152-0141-02 OIODE,SIG:,ULTRA FAST;40V,150MA,4NS,2PF
27014
FOH9427
A10CR283 152-0322-00
DIOOE,SIG:SCHTKY,;15V, 1.2PF,0.410MV
VF@ 1MA
50434
5082-2672-T25
A10CR284
152-0322-00 DIODE,SIG:SCHTKY,;15V, 1.2PF,0.410MV
VF@ 1MA
50434
5082·2672-T25
A10CR308 152-0422-00 OIODE,SIG:,VVC;25V,7.7PF
04713 SMV1264RL
A10CR309 152-0422-00
DIODE,SIG:,VVC;25V,7.7PF
04713 SMV1264RL
A10CR400
152-0323-01
SEMICOND DVC,Dl:SW,Sl,50V,25PA
AT 20V,20PF,D0-35
14552 MT5127
