Tektronix 2212 Service Manual

Warranted Characteristics
1 - 22

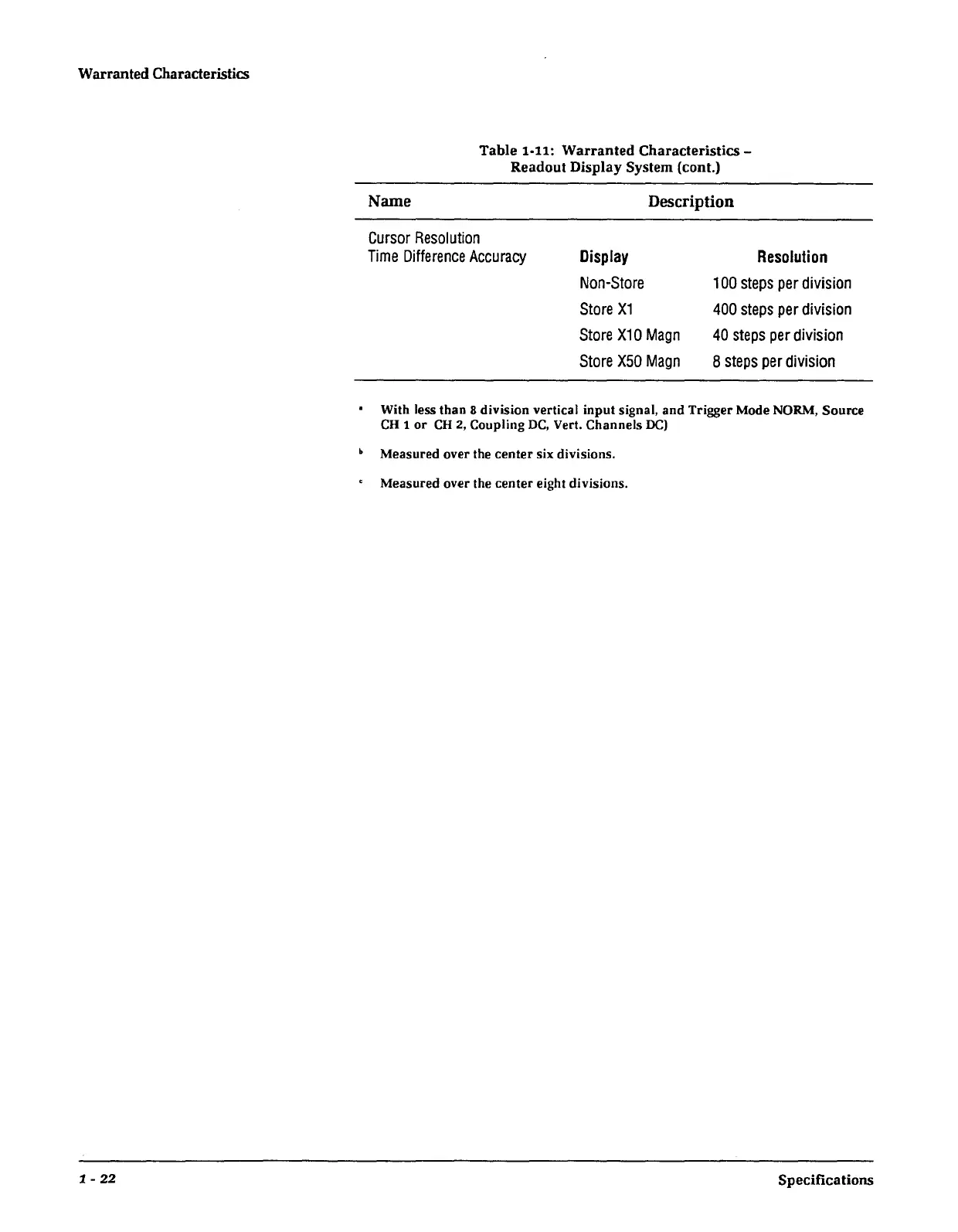

Table 1-11: Warranted Characteristics -
Readout Display System (cont.)
Name
Description
Cursor Resolution
Time Difference Accuracy Display
Non-Store
Store X1
Store X1 0 Magn
Store XSO Magn
Resolution
100 steps per division
400 steps per division
40 steps per division
8 steps per division
• With less than 8 division vertical input signal, and Trigger Mode NORM, Source
CH 1 or CH 2, Coupling DC, Vert. Channels DC)
b Measured over the center six divisions.
• Measured over the center eight divisions.
Specifications
