Warranted Characteristics
1 -
26

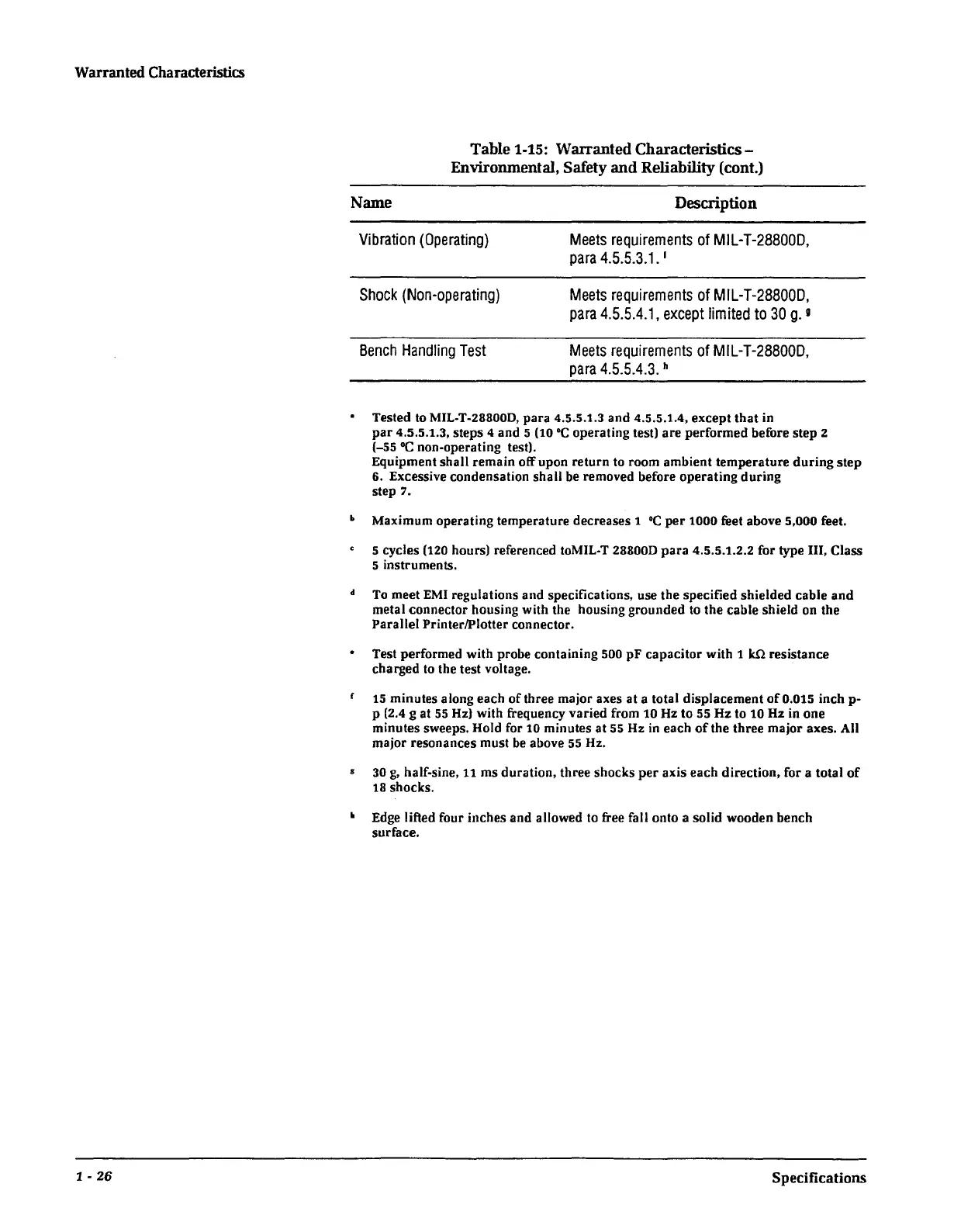

Table 1-15: Warranted
Characteristics-
Environmental, Safety
and
Reliability (cont.)
Name
Vibration
(Operating)
Shock
(Non-operating)
Bench
Handling
Test
Description
Meets
requirements
of
MIL-T-288000,
para
4.5.5.3.1.
'
Meets
requirements
of
MIL-T-288000,
para
4.5.5.4.1,
except
limited
to
30
g.
•
Meets
requirements
of
MIL-T-288000,
para
4.5.5.4.3.
h
Tested to MIL-T-28800D,
para
4.5.5.1.3 and 4.5.5.1.4, except
that
in
par
4.5.5.1.3, steps 4 and 5 (10
"C
operating test)
are
performed before step 2
(-55
•c
non-operating test).
Equipment
shall
remain
off upon return to room ambient temperature
during
step
6. Excessive condensation shall be removed before
operating
during
step 7.
L Maximum operating temperature decreases 1
•c
per
1000 feet above 5,000 feet.
5 cycles (120 hours) referenced toMIL-T 28800D
para
4.5.5.1.2.2 for type III, Class
5 instruments.
To
meet
EMI
regulations and specifications, use the specified shielded cable
and
metal connector housing with the housing grounded to the cable shield on the
Parallel Printer/Plotter connector.
Test performed with probe containing 500
pF
capacitor
with 1
kn
resistance
charged to the test voltage.
15
minutes along each
of
three major axes at a total displacement
of
0.015 inch p-
p (2.4 g at
55
Hz) with frequency varied from 10 Hz to 55 Hz to 10 Hz in one
minutes sweeps. Hold for 10 minutes at
55
Hz in each
of
the three major axes. All
major resonances must
be
above
55
Hz.
8
30 g, half-sine,
11
ms duration, three shocks
per
axis each direction, for a total
of
18
shocks.
• Edge lifted four inches
and
allowed to free fall onto a solid wooden bench
surface.
